24 Section 7 — Service
5. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.

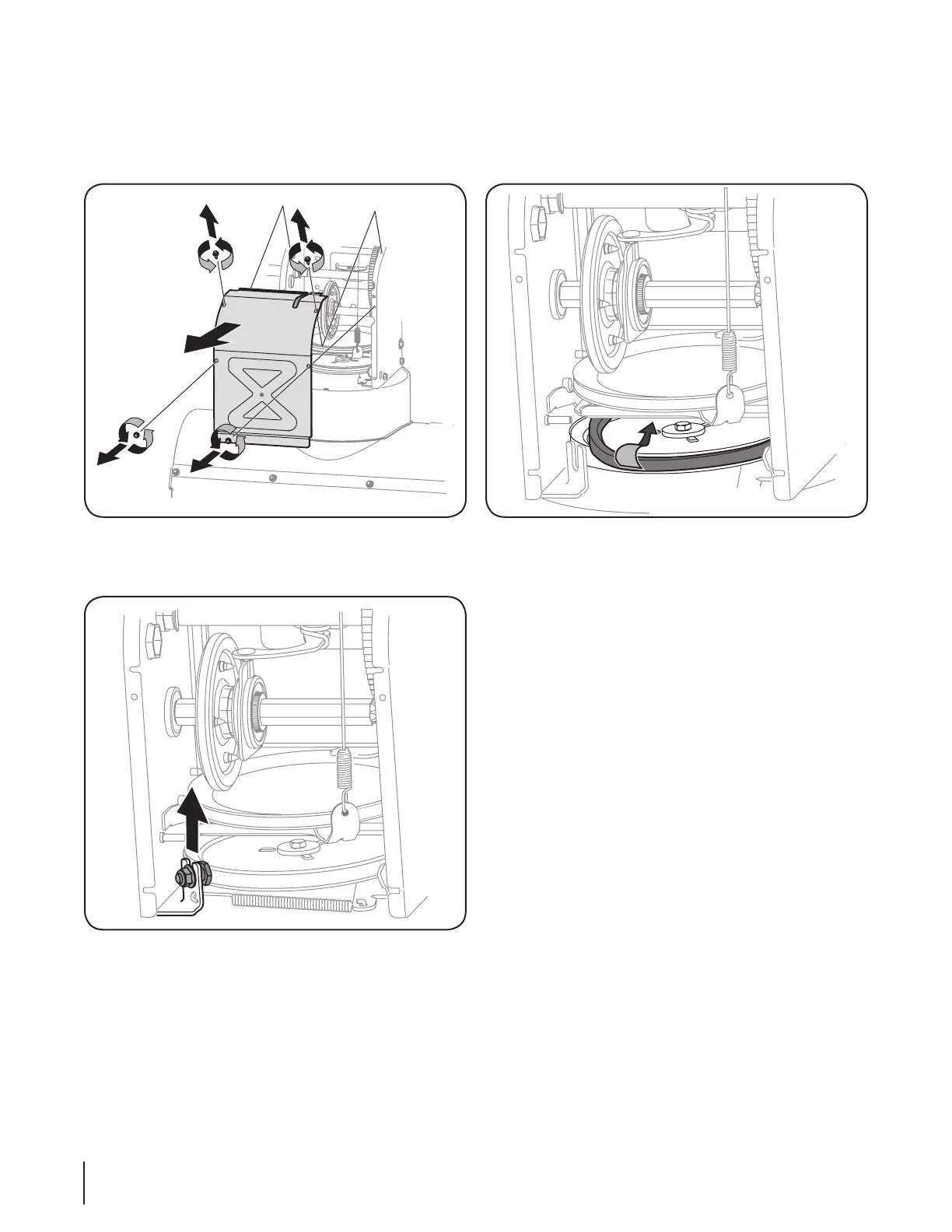

6. Remove the frame cover from the underside of the snow
thrower by removing the self-tapping screws which secure
it. See Figure 7-4.
Figure 7-4
7. Loosen and remove the shoulder bolt which acts as a belt
keeper. See Figure 7-5.
Figure 7-5
8. Remove the belt from around the auger pulley, and slip the
belt between the support bracket and the auger pulley.
See Figure 7-6.
NOTE: Engaging the auger control will ease removal and
reinstallation of the belt.
Figure 7-6
9. Replace the auger belt by following instructions in reverse
order.
NOTE: Do not forget to reinstall the shoulder bolt and
reconnect the spring to the frame after installing a
replacement auger belt.
10. After replacing the auger belt, perform the Auger Control
test on page 14 of the Assembly and Set-Up section.
