9Section 3 — ASSembly & Set-Up
5. Rotate the joystick to the one o’clock position so that the
silver indicator arrow on the pinion gear below the control
panel faces upward. See Figure 3-7.

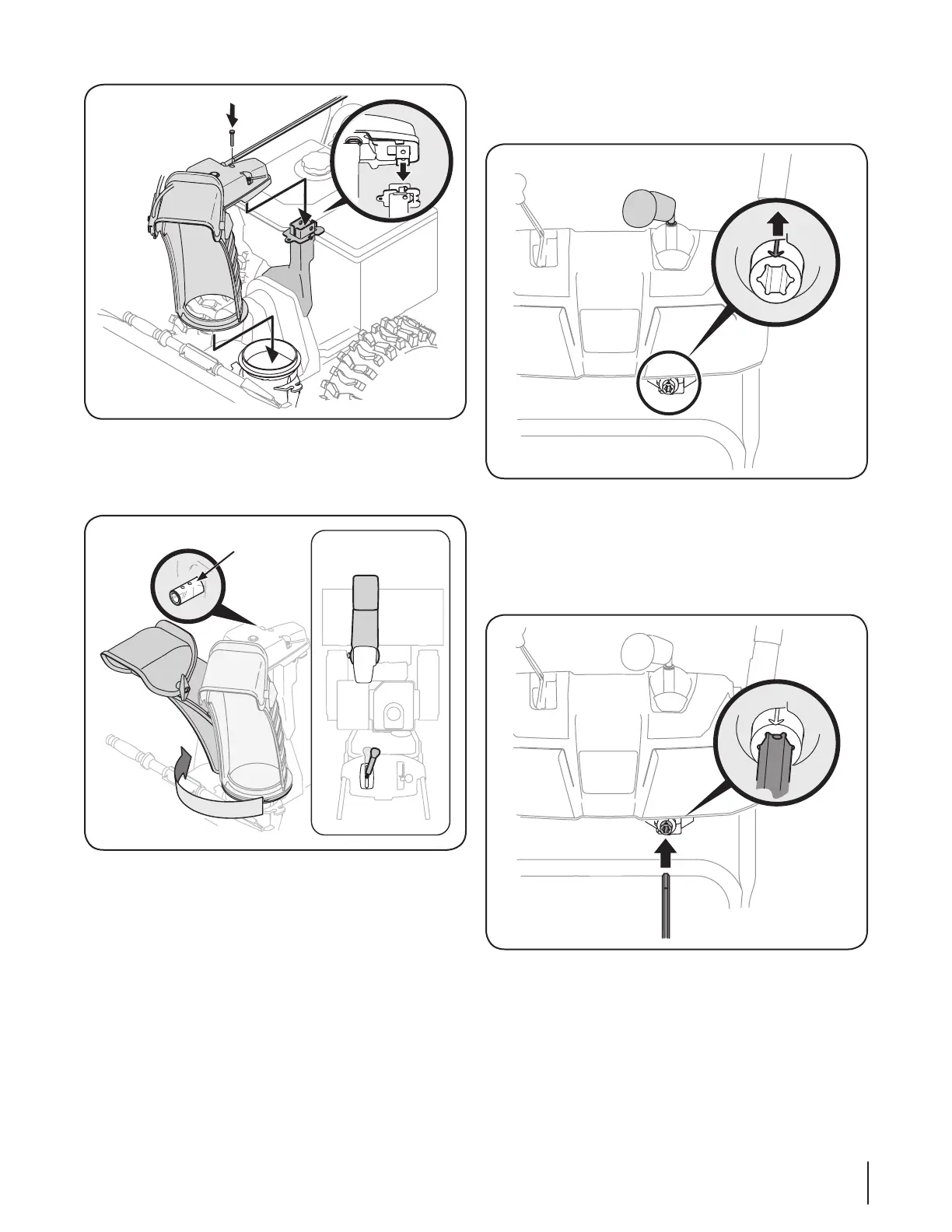

Figure 3-7
NOTE: The joystick will be angled slightly to the right at the
one o’clock position. See “Top View” in Figure 3-6.
6. Insert the chute control rod into the pinion gear below the
joystick. Make sure to line up the hole in the rod with the
arrow on the pinion gear. See Figure 3-8.
Figure 3-8
NOTE: The chute control rod will fit snuggly into the pinion
gear. Support the rear of the dash panel with one hand
while inserting the rod with your other hand to ensure the
rod is inserted all the way into the pinion gear.
NOTE: The hole is a reference for aligning the rod with the
indicator arrow on the pinion gear, and will be visible after
the rod has been inserted.
Figure 3-5
4. Squeeze the trigger on the joystick and rotate the chute by
hand to face forward. The holes in the chute control input
will be facing up. See Figure 3-6.
Top View
Chute Control
Input
Figure 3-6
NOTE: The chute will not rotate without squeezing the
trigger on the joystick.
