10 - 2
Cub Cadet 3000
10. Remove the hydraulic tubes from the hydraulic
steering pump.
NOTE: If the hydraulic tubes do not want to come
out, use a small mallet and tap them out of the
ports. Be careful not to damage the tubes.
11. Inspect the “O” rings on the connectors for
damage. If damaged, replace.
NOTE: Place a small amount of grease on the
“O” rings and cover the connector surface
completely for reinstallation.

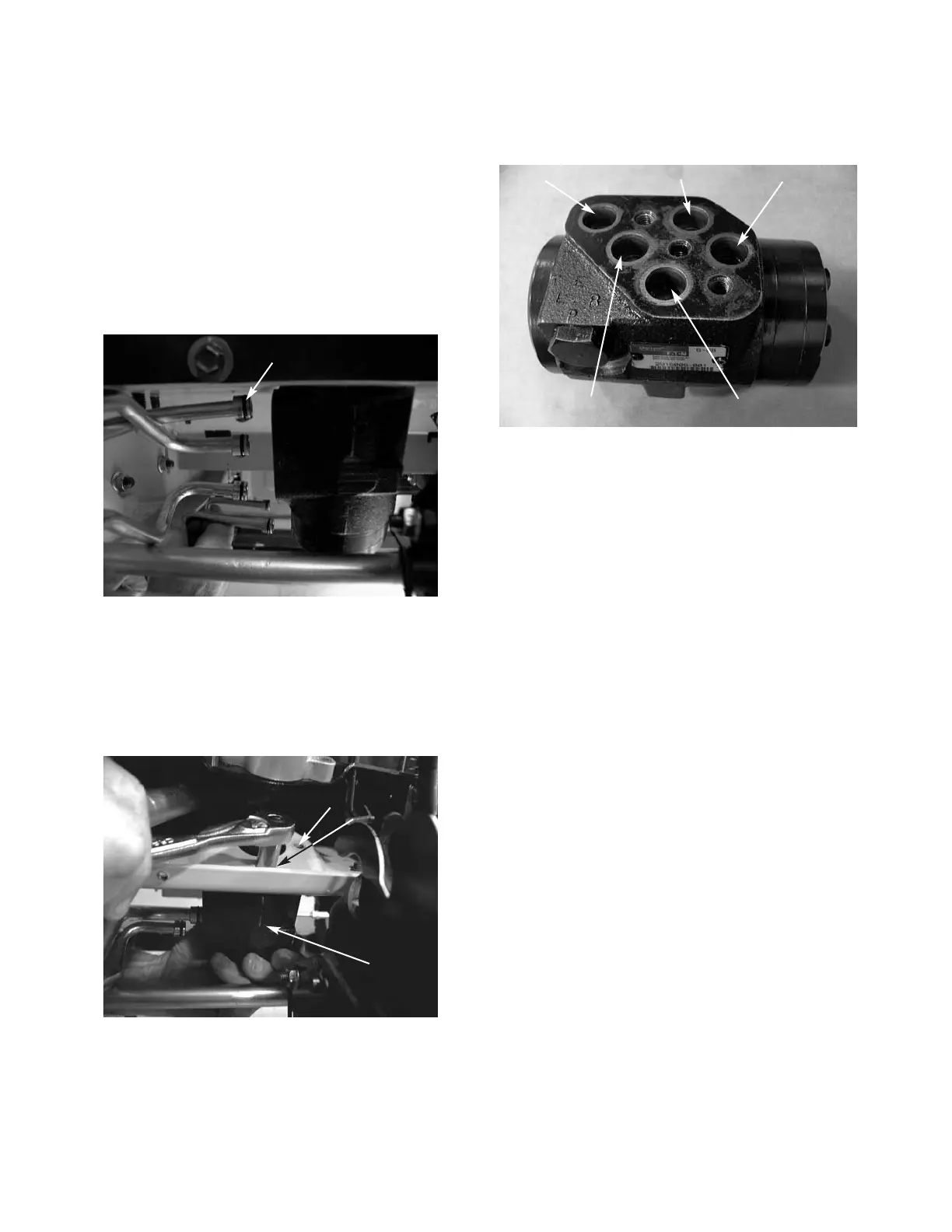

FIGURE 5.
“O” Rings
12. Support the hydraulic steering pump from below.
See figure 6.
13. Remove the four hex cap screws securing the
hydraulic steering pump to the frame using a
10mm wrench. See figure 6.
FIGURE 6.
Hex Cap
Screws
Steering
Pump
FIGURE 7.
Return
Auxiliary
Steering
Steering
Main Pressure
Refer to the 1998 Cub Cadet Technical Update
Seminar manual for inspection and repair of the Char-
Lynn 2 series Steering Control in Section 17.
REASSEMBLE THE HYDRAULIC STEERING PUMP
IN THE REVERSE ORDER.
14. Remove the hydraulic steering pump from the
tractor.
