11 - 2
Cub Cadet 3000

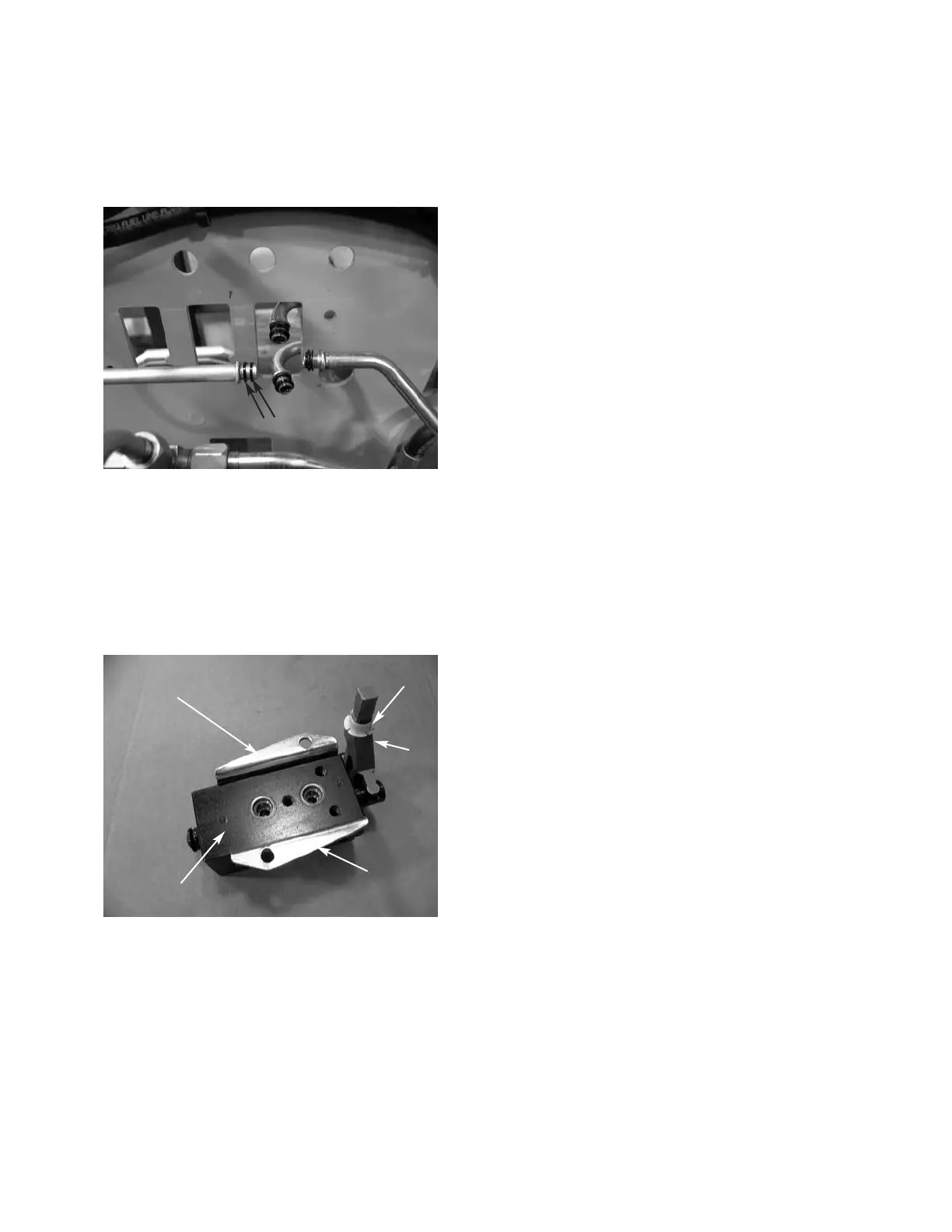

FIGURE 4.
“O” Rings
11. Inspect the “O” rings for damage. If damaged,
replace. See figure 4.
12. Remove all the remaining hardware from the
valve body using a 7/16 socket.
FIGURE 5.
Valve Mounting
Bracket
Nylon Flange
Bearing
Squared
Lift Link
Valve
Mounting
Bracket
Hydraulic
Valve
13. Remove the valve mounting brackets. See
figure 5.
NOTE: Write down the correct positions of the
mounting brackets. The brackets can be installed
backwards if not properly marked.
14. Remove the squared lift link.
REASSEMBLE THE HYDRAULIC VALVE IN THE
REVERSE ORDER ABOVE.
