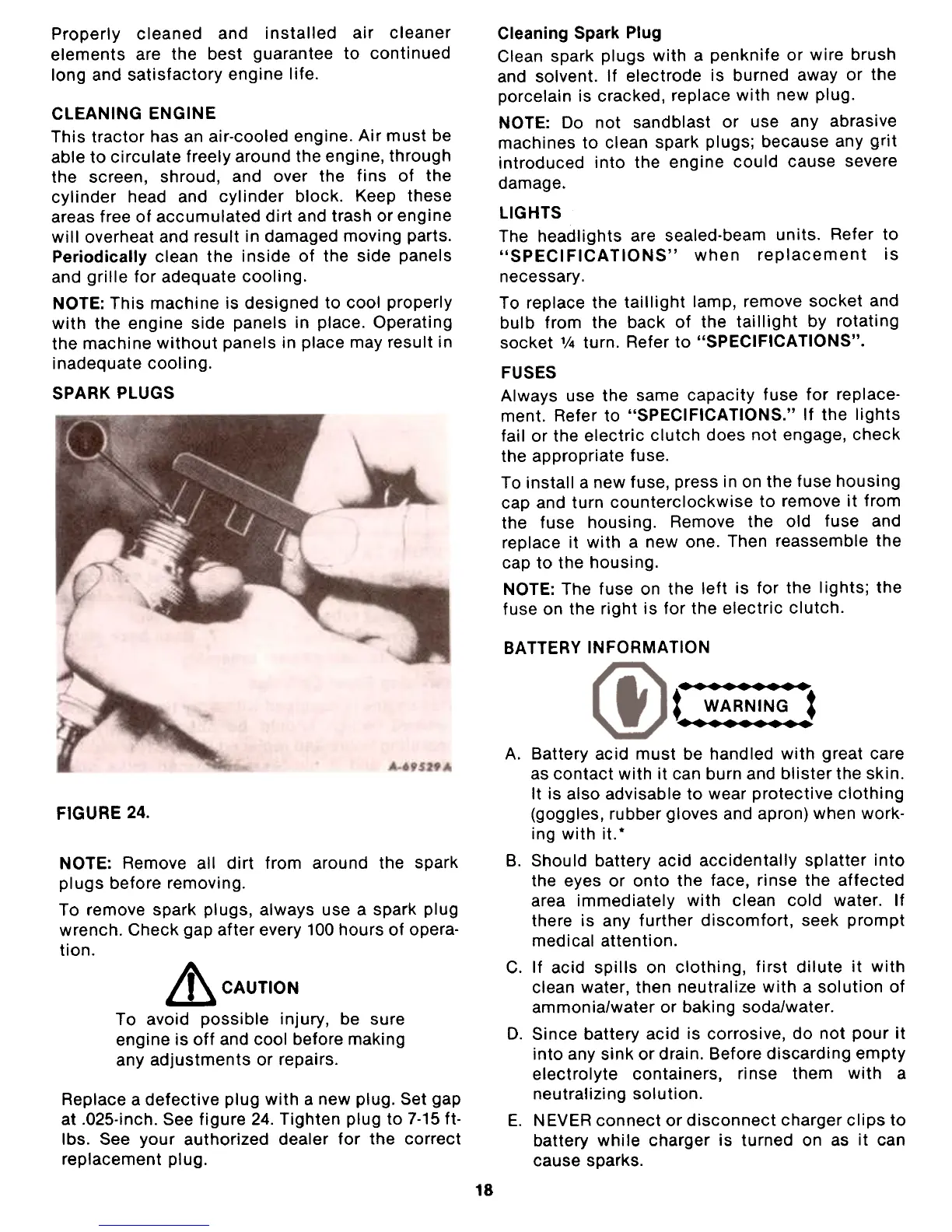

Properly cleaned and installed air cleaner
elements are the best guarantee to continued
long and satisfactory engine life.
CLEANING ENGINE
This tractor has an air-cooled engine. Air must be
able to circulate freely around the engine, through
the screen, shroud, and over the fins of the
cylinder head and cylinder block. Keep these
areas free of accumulated dirt and trash or engine
will overheat and result in damaged moving parts.
Periodically clean the inside of the side panels
and grille for adequate cooling.
NOTE: This machine is designed to cool properly
with the engine side panels in place. Operating
the machine without panels in place may result in
inadequate cooling.
SPARK PLUGS
Cleaning Spark Plug
Clean spark plugs with a penknife or wire brush
and solvent. If electrode is burned away or the
porcelain is cracked, replace with new plug.
NOTE: Do not sandblast or use any abrasive
machines to clean spark plugs; because any grit
introduced into the engine could cause severe
damage.
LIGHTS
The headlights are sealed-beam units. Refer to
"SPECIFICATIONS" when replacement is
necessary.
To replace the taillight lamp, remove socket and
bulb from the back of the taillight by rotating
socket 1/4 turn. Refer to "SPECIFICATIONS".
FUSES
Always use the same capacity fuse for replace-
ment. Refer to "SPECIFICATIONS." If the lights
fail or the electric clutch does not engage, check
the appropriate fuse.
To install a new fuse, press in on the fuse housing
cap and turn counterclockwise to remove it from
the fuse housing. Remove the old fuse and
replace it with a new one. Then reassemble the
cap to the housing.
NOTE: The fuse on the left is for the lights; the
fuse on the right is for the electric clutch.
BATTERY INFORMATION
~~~~R:~~G~J
FIGURE 24.
NOTE: Remove all dirt from around the spark
plugs before removing.To
remove spark plugs, always use a spark plugwrench.
Check gap after every 100 hours of opera-tion.
~ CAUTION
To avoid possible injury, be sure
engine is off and cool before making
any adjustments or repairs.
Replace a defective plug with a new plug. Set gap
at .O25-inch. See figure 24. Tighten plug to 7-15 ft-
Ibs. See your authorized dealer for the correct
replacement plug.
A.
Battery acid must be handled with great care
as contact with it can burn and blister the skin.
It is also advisable to wear protective clothing
(goggles, rubber gloves and apron) when work-
ing with it..
B. Should battery acid accidentally splatter into
the eyes or onto the face, rinse the affected
area immediately with clean cold water. If
there is any further discomfort, seek prompt
medical attention.
C. If acid spills on clothing, first dilute it with
clean water, then neutralize with a solution of
ammonia/water or baking soda/water.
D. Since battery acid is corrosive, do not pour it
into any sink or drain. Before discarding empty
electrolyte containers, rinse them with a
neutralizing solution.
E. NEVER connect or disconnect charger clips to
battery while charger is turned on as it can
cause sparks.
18
