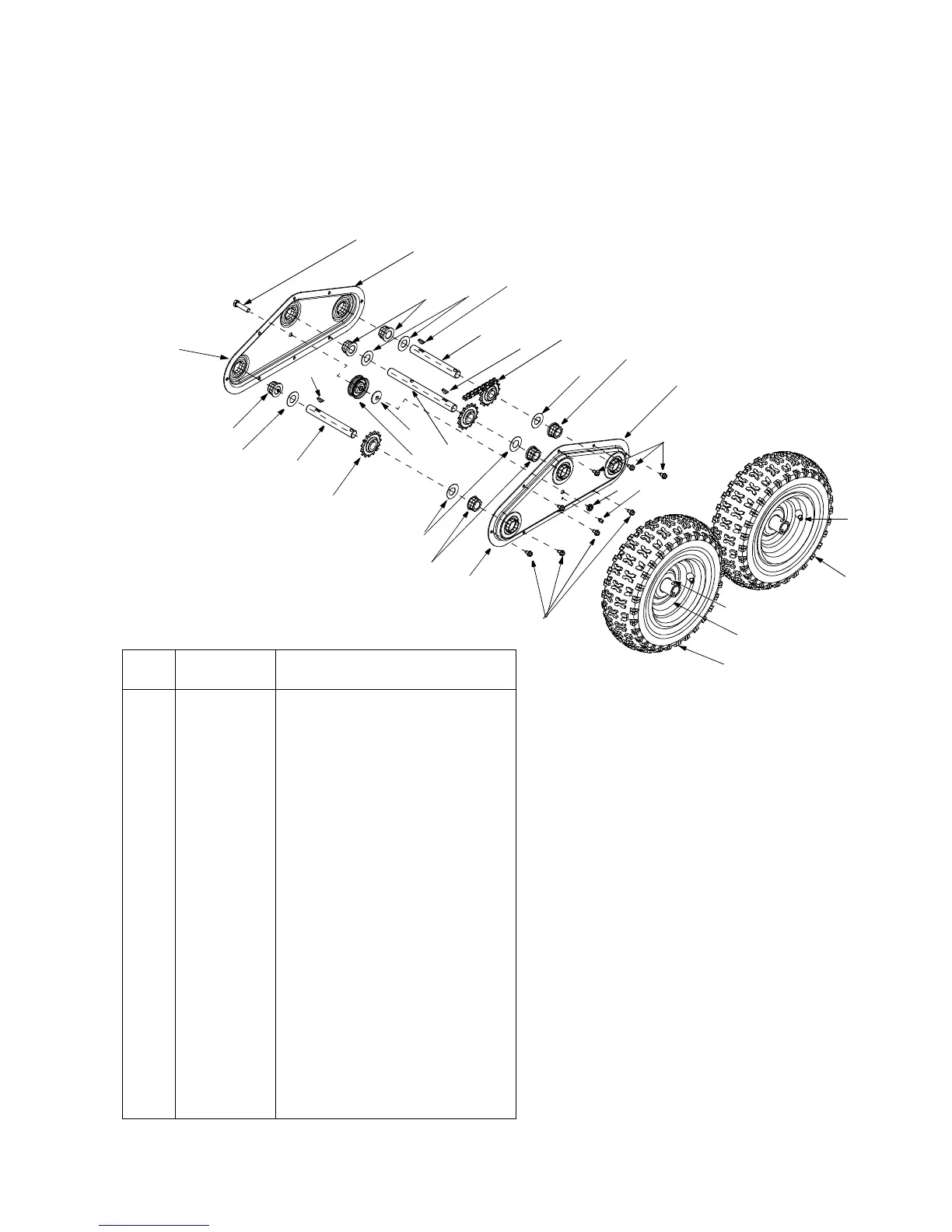

Model 826
22
21
20
19
1
17
14
14
8
6
8
13
6
13
4
7
15
8
14
16
12
6
9
8
14
16
2
2
3
10
23
18
Ref.
No.
Part No. Description
1. 710-0459A Special Hex Screw: 3/8-24 x 1.5”
2. 710-0599 TT Screw: 1/4-20 x 0.5”
3. 712-0116 Jam Nut
4. 713-0491 Sprocket
5. 713-0492 Chain
6. 714-0161 Key
7. 736-0235 Flat Washer
8. 736-0351 Flat Washer
9. 737-0170 Lubricant: 6in 1
10. 737-3000 Lube Fitting
12. 738-1135A Drive Axle
13. 738-1136A Wheel Axle
14. 741-0598 Hex Flange Bearing
15. 756-0313 Flat Idler
16. 784-0400A Chain Case: Outer
17. 784-0401A Chain Case: Inner
18. 618-0420A Chain Case Assembly RH
618-0421A Chain Case Assembly LH
19. 634-0195 Complete Wheel Assembly
20. 734-1732 Tire Assembly
21. 734-1735 Rim Assembly
22. 741-0401 Bearing
23. 734-0255 Air Valve
