17

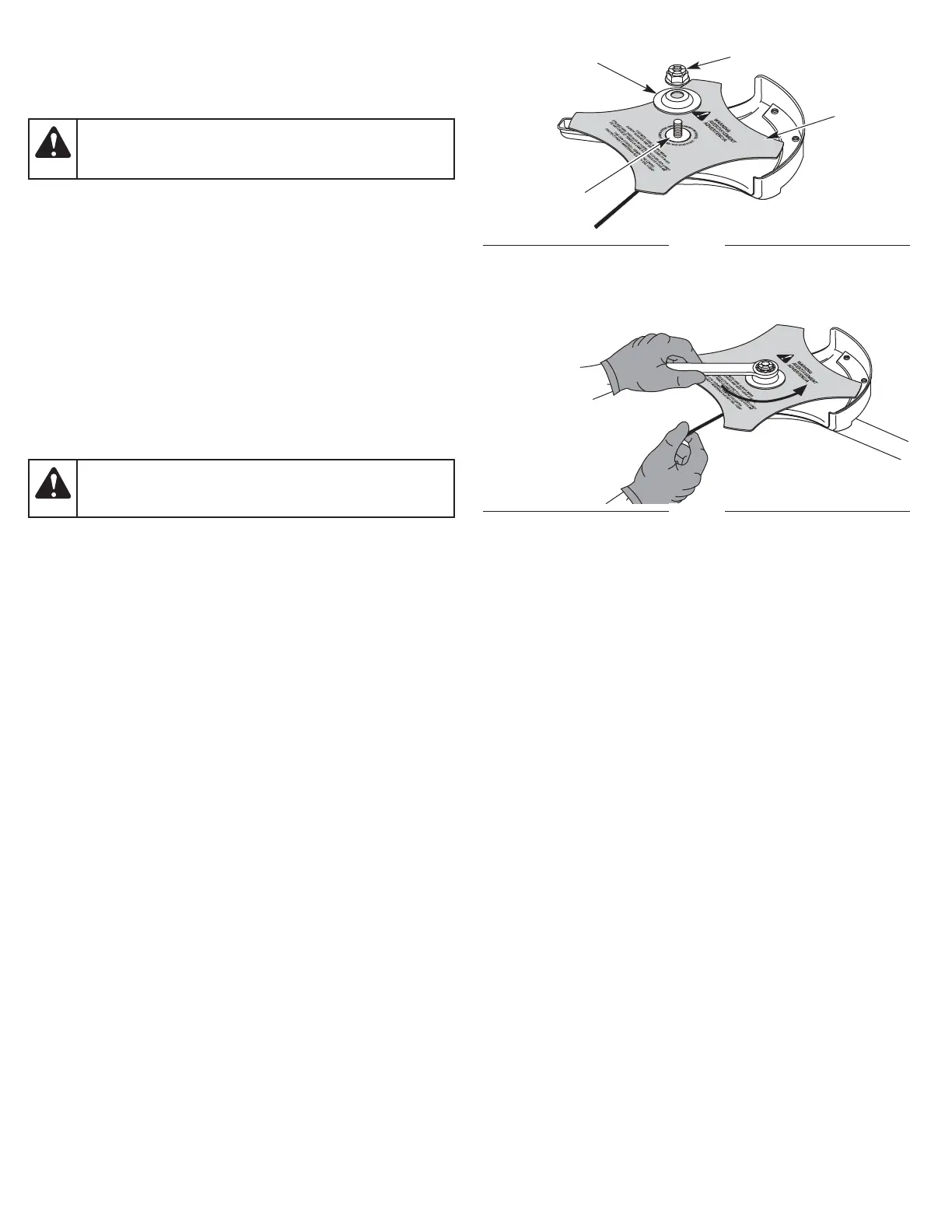

Fig. 24
Nut
Blade Retainer
Blade
Pilot Step
Installing the Blade
1. Put the blade on the output shaft bushing (Fig. 23). Make sure
the blade is centered on the pilot step (Fig. 24). The blade
should sit flat against the output shaft bushing.
2. Align the shaft bushing hole with the locking rod slot (Fig. 21).
Insert the locking rod into the locking rod slot and shaft bushing
hole (Fig. 21).
3. While holding the locking rod in place, put the blade retainer and
nut on the output shaft (Fig. 24).
4. While holding the locking rod in place, tighten the nut by turning
it counterclockwise:
• If you are using a torque wrench and an 13 mm socket, tighten
the nut to: 325 - 335 in•lb, 27 - 28 ft.•lb, 37 - 38 N•m.
• Without a torque wrench, use a 13 mm closed-end or socket
wrench. Turn the nut until the blade retainer is snug against
the shaft bushing. Make sure the blade is installed correctly,
then rotate the nut an additional 1/4 to 1/2 turn
counterclockwise (Fig. 25).
5. Remove the locking rod.
WARNING:
If the blade is off-center, the unit will vibrate
and the blade may fly off, possibly causing serious
personal injury.
WARNING:
To avoid serious personal injury or damage
to the unit, do not start or operate the unit with the locking
rod inserted into the locking rod slot.
Fig. 25
1/4 - 1/2 Turn
Counterclockwise
To Next Page
