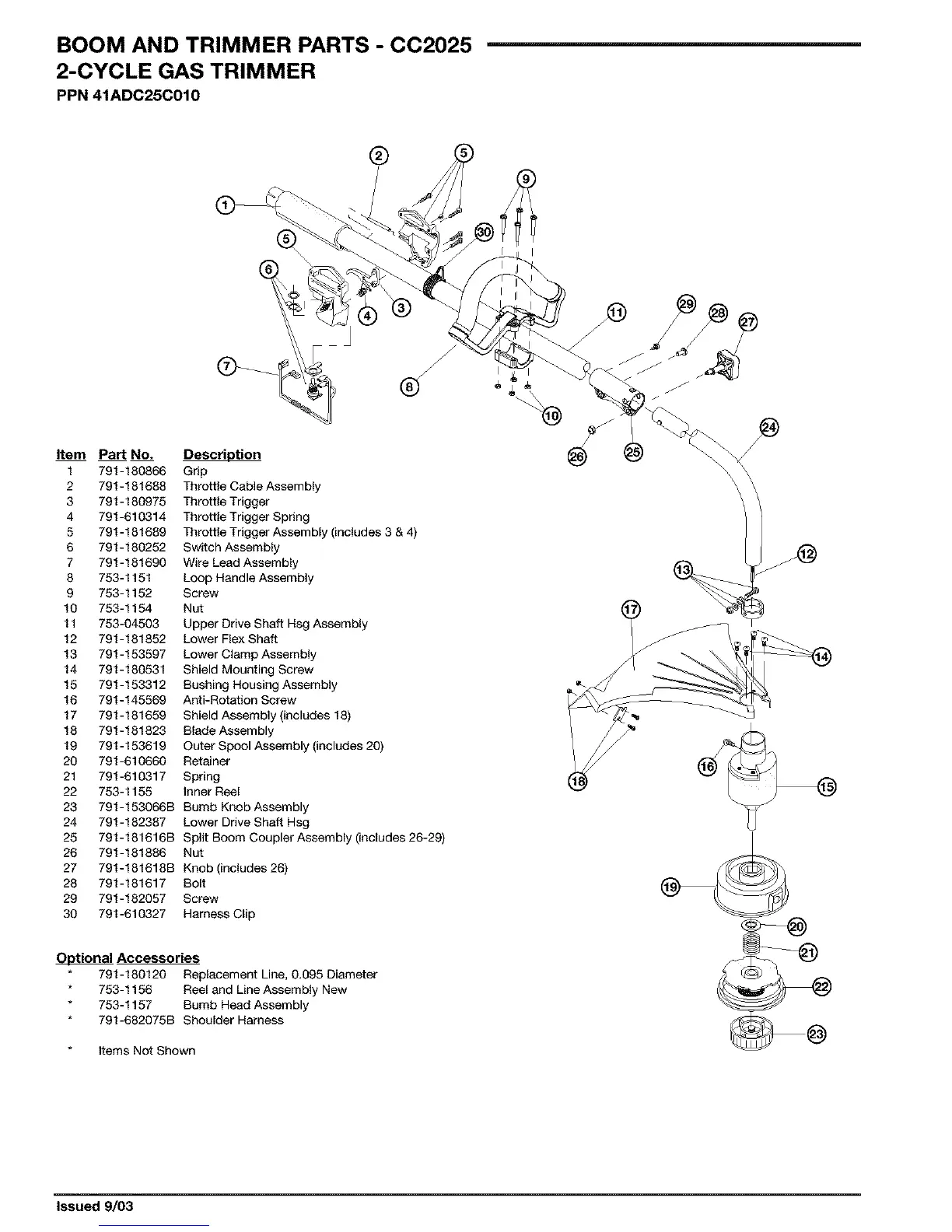

BOOM AND TRIMMER PARTS - CC2025 '
2-CYCLE GAS TRIMMER
PPN 41ADC25C010
®
Item Part No. Description
1 791-180866 Grip
2 791-181688 Throttle Cable Assembly
3 791-180975 Throttle Trigger
4 791-610314 Throttle Trigger Spring
5 791-181689 Throttle Trigger Assembly (includes 3 & 4)
6 791-180252 Switch Assembly
7 791-181690 Wire Lead Assembly
8 753-1151 Loop Handle Assembly
9 753-1152 Screw
10 753-1154 Nut
11 753-04503 Upper Drive Shaft Hsg Assembly
12 791-181852 Lower Flex Shaft
13 791-153597 Lower Clamp Assembly
14 791-180531 Shield Mounting Screw
15 791-153312 Bushing Housing Assembly
16 791-145569 Anti-Rotation Screw
17 791-181659 Shield Assembly (includes 18)
18 791-181823 Blade Assembly
19 791-153619 Outer Spool Assembly (includes 26)
26 791-610660 Retainer
21 791-610317 Spring
22 753-1155 Inner Reel
23 791-153066B Bumb Knob Assembly
24 791-182387 Lower Drive Shaft Hsg
25 791-181616B Split Boom Coupler Assembly (includes 26-29)
26 791-181886 Nut
27 791-181618B Knob (includes 26)
28 791-181617 Bolt
29 791-182657 Screw
36 791-610327 Harness Clip
Optional Accessories
791-180120 Replacement Line, 0.695 Diameter
753-1156 Reel and Line Assembly New
753-1157 Bumb Head Assembly
791-682675B Shoulder Harness
Items Not Shown
I
Issued 9/03
