Cub Cadet CC3400 User Manual

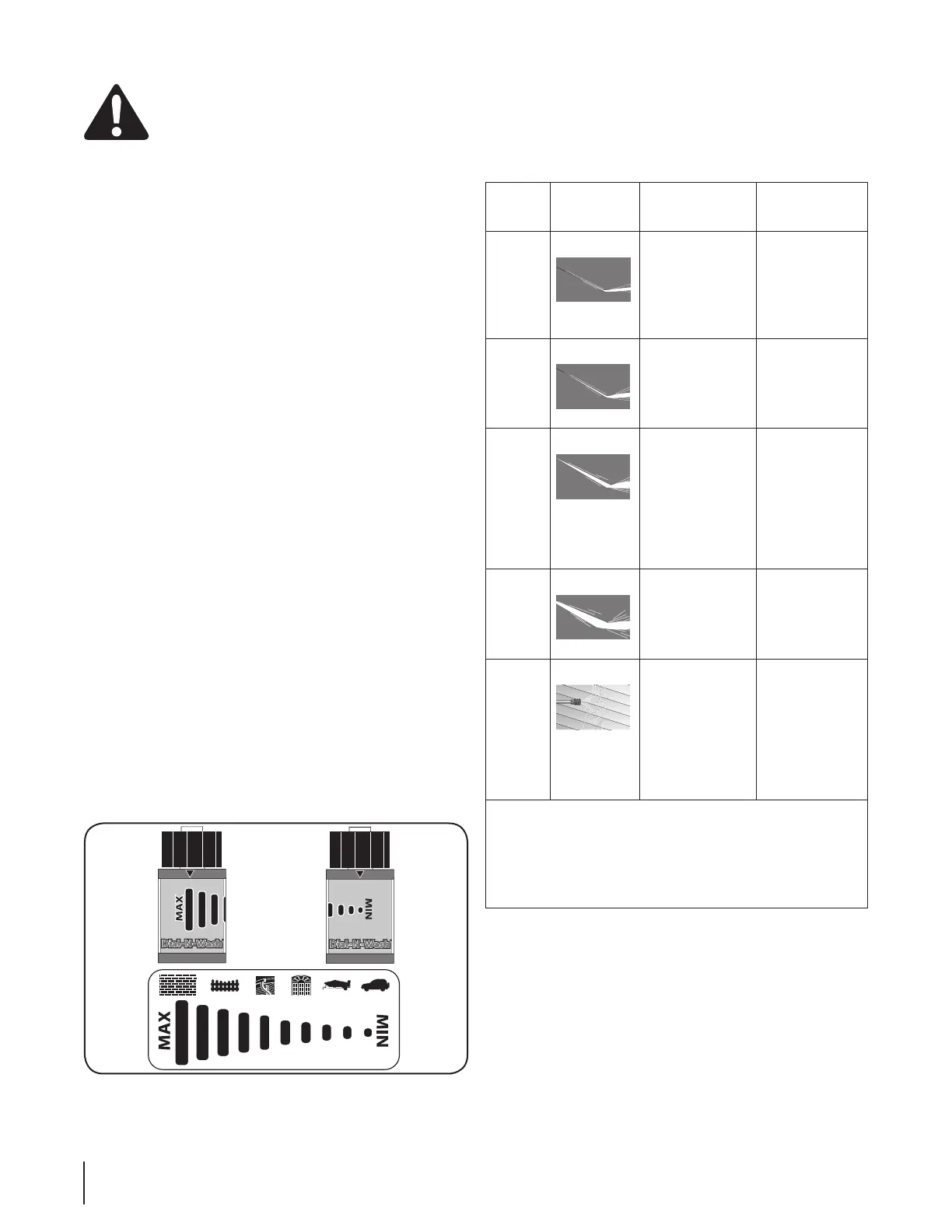

12 Section 4— controlS and FeatureS
WARNING: To reduce the possibility of
contamination always protect against backflow
when connected to a potable water system.
Pressure Washer Operating Features
Pressure Adjustments
The pressure setting is preset at the factory to achieve op ti mum
pres sure and cleaning. If you need to lower the pres sure, it can
be accomplished by these meth ods.
• Back away from the sur face to be cleaned. The further
away you are, the less the pressure will be on the surface to
be cleaned.
• CC3400/CC3600- Change to the 40˚ nozzle (white). This
nozzle delivers a less powerful stream of water and a wider
spray pattern. Refer to “How To Use Spray Wand”.
• CC4033 – Use the Dial-N-Wash to increase and decrease
the pressure. Refer to the “Dial-N-Wash Adjustment”
paragraph.
NOTICE: DO NOT attempt to increase pump pressure. A higher
pressure setting than the factory set pressure may damage
pump.
Dial-N-Wash Adjustment (CC4033)
1. Choose the correct high pressure nozzle (0˚, 15˚, 25˚ or 40˚)
for the job to be performed. Refer to “How To Use Spray
Wand”.
2. The Dial-N-Wash is shipped in the MAX pressure setting,
the MAX pressure bar is aligned with the arrow on the
collar as shown.
3. Rotating the Dial-N-Wash counterclockwise until it stops
places it in the MIN pressure setting, the arrow will align
with the MIN pressure bar as shown.
4. Adjust the pressure by rotating the Dial-N-Wash clockwise
for higher pressure or counterclockwise for lower pressure,
aligning the arrow with the desired pressure bar on the
Dial-N-Wash.
NOTE: To apply chemicals the black low pressure nozzle must
be installed and the Dial-N-Wash must be in the MAX pressure
setting.
Figure 4-2
How To Use Spray Wand
The nozzles for the spray wand are stored in the nozzle holder on
the panel assembly. Colors on the panel identify nozzle location
and spray pattern. Refer to the following chart to choose the
correct nozzle for the job to be performed.
Nozzle
Color
Spray
Pattern
Uses Surfaces*
Red
0˚ powerful
pinpoint for
spot cleaning of
hard, unpainted
surfaces or for
high reach areas
unpainted metal
or concrete;
DO NOT use on
wood
Yellow
15˚
intense cleaning
of unpainted
hard surfaces
grills, driveways,
concrete or
brick walkways,
unpainted brick
or stucco
Green
25˚
standard
cleaning
nozzle for most
applications
yard tools,
sidewalks,
lawn furniture,
unpainted
siding, stucco,
gutters and
eaves, concrete,
brick surfaces
White
40˚
cleaning of
painted or
delicate surfaces
auto/RV, marine,
wood, painted
brick and stucco,
vinyl, painted
siding
Black
low pressure
applies cleaning
solutions
Low pressure
spray is safe
on all surfaces.
Always verify
compatibility
of cleaning
solution prior
to use.
*NOTICE: The high pressure spray from your pressure washer
is capable of causing damage to surfaces such as wood, glass,
automobile paint, auto striping and trim, and delicate objects
such as flowers and shrubs. Before spraying, check the item to
be cleaned to assure yourself that it is strong enough to resist
damage from the force of the spray.
