Cub Cadet Challenger 500 Service Manual

Engine
4‐18

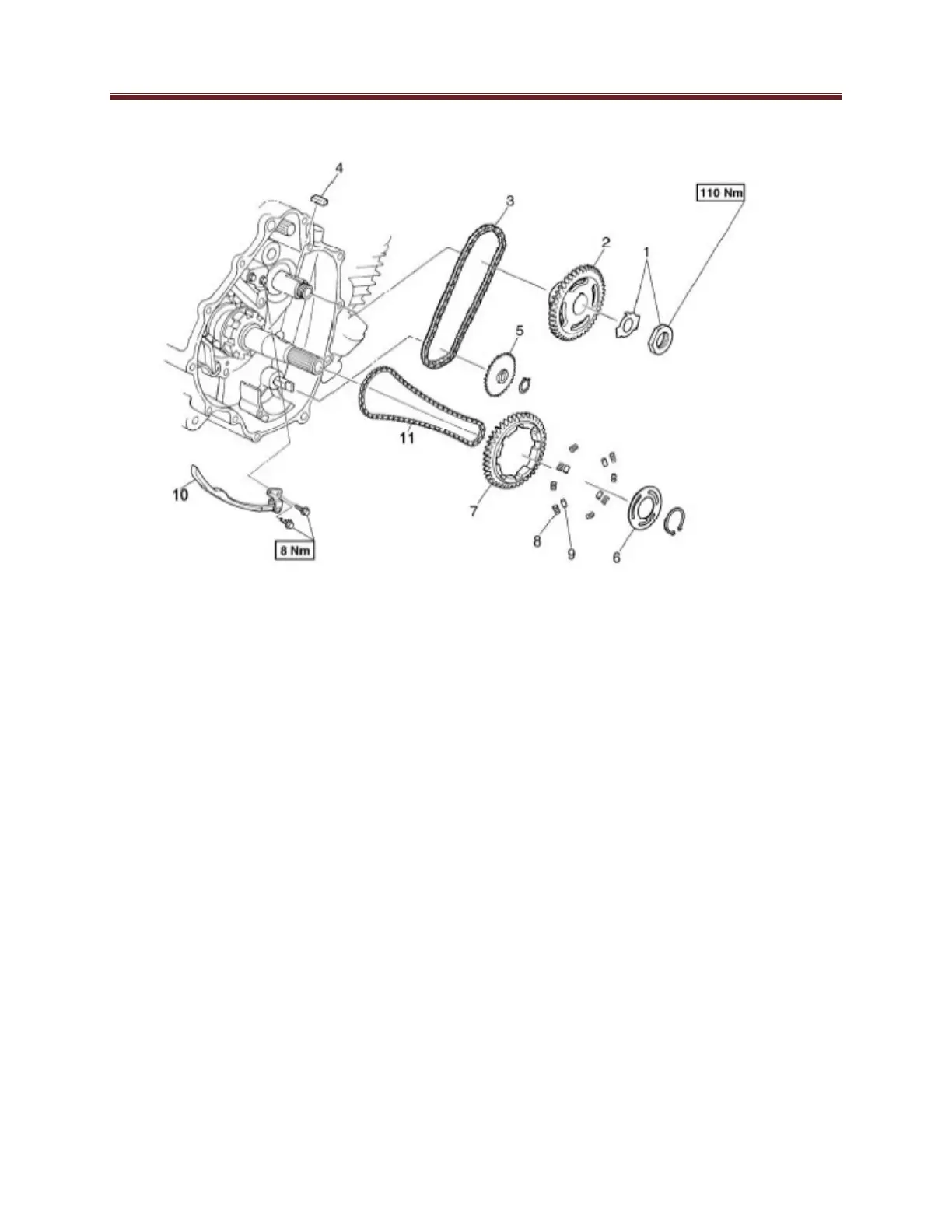

Balancer Gears and Oil Pump Gears
No. Part Name Qty Remarks
Removing the balancer gears and
oil pump gears
1 Nut / Lock washer
2 Balancer driven / oil pump drive gear
3 Chain
4 Straight key
5 Oil pump driven gear
6 Plate
7 Balancer drive gear
8 Spring
9 Pin
10 Timing chain guide (intake side)
11 Timing chain
1 / 1
1
1
1
1
1
1
1
1
1
1
Remove the parts in the order
listed
Installation, reverse the order
listed
