Cub Cadet Challenger 500 - Electrical Components

Electrical
6‐1

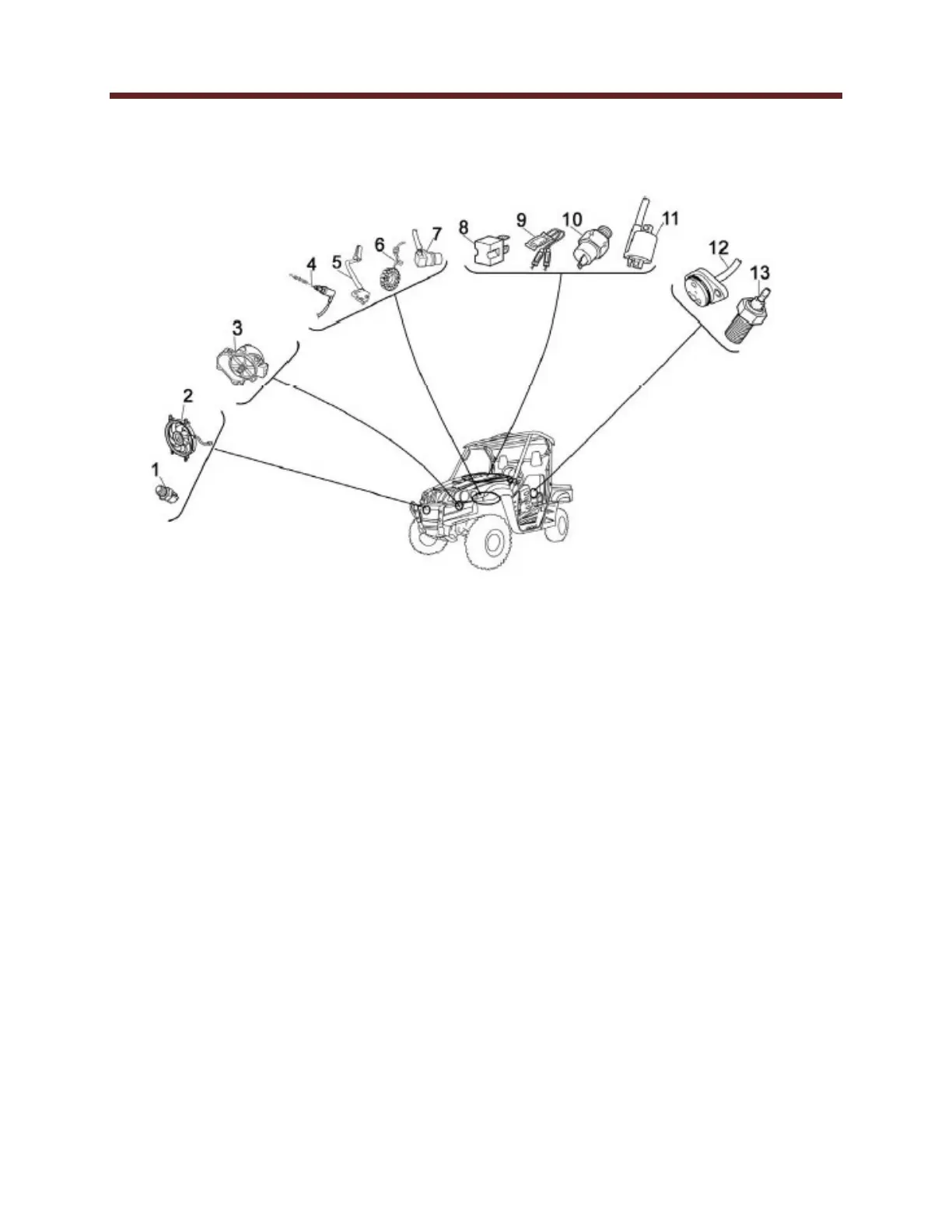

Electrical Components
1. Thermo switch 2
2. Radiator fan
3. Gear motor
4. Brake light switch
5. Parking brake switch
6. Pickup coil/stator assembly
7. Speed sensor
8. Diode 1
9. Circuit breaker (radiator fan motor)
10. Thermo switch 1
11. Ignition coil
12. Gear position switch
13. Reverse switch
