Engine
431

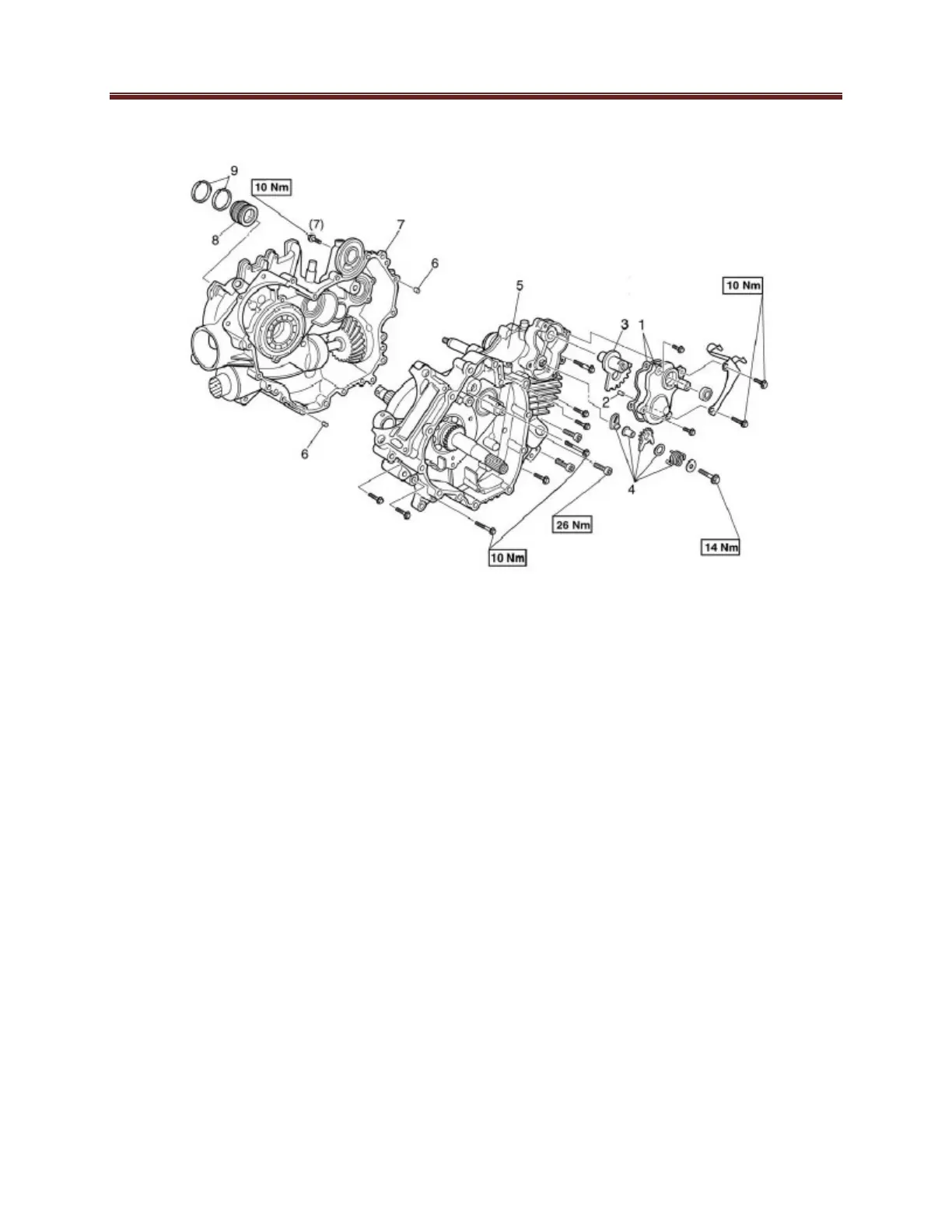

Crankcase
No. Part Name Qty Remarks
Separating the crankcase Remove the parts in the order listed
1
Shift lever cover / gasket
2
Dowel pin
3
Shift lever 1
4
Shift lever 2 assembly
5
Right crankcase half
6
Dowel pin
7
Left crankcase half
8
Spacer
9
Crankshaft seal
1 / 1
1
1
1
1
1
1
1
1
For installation, reverse the order listed
