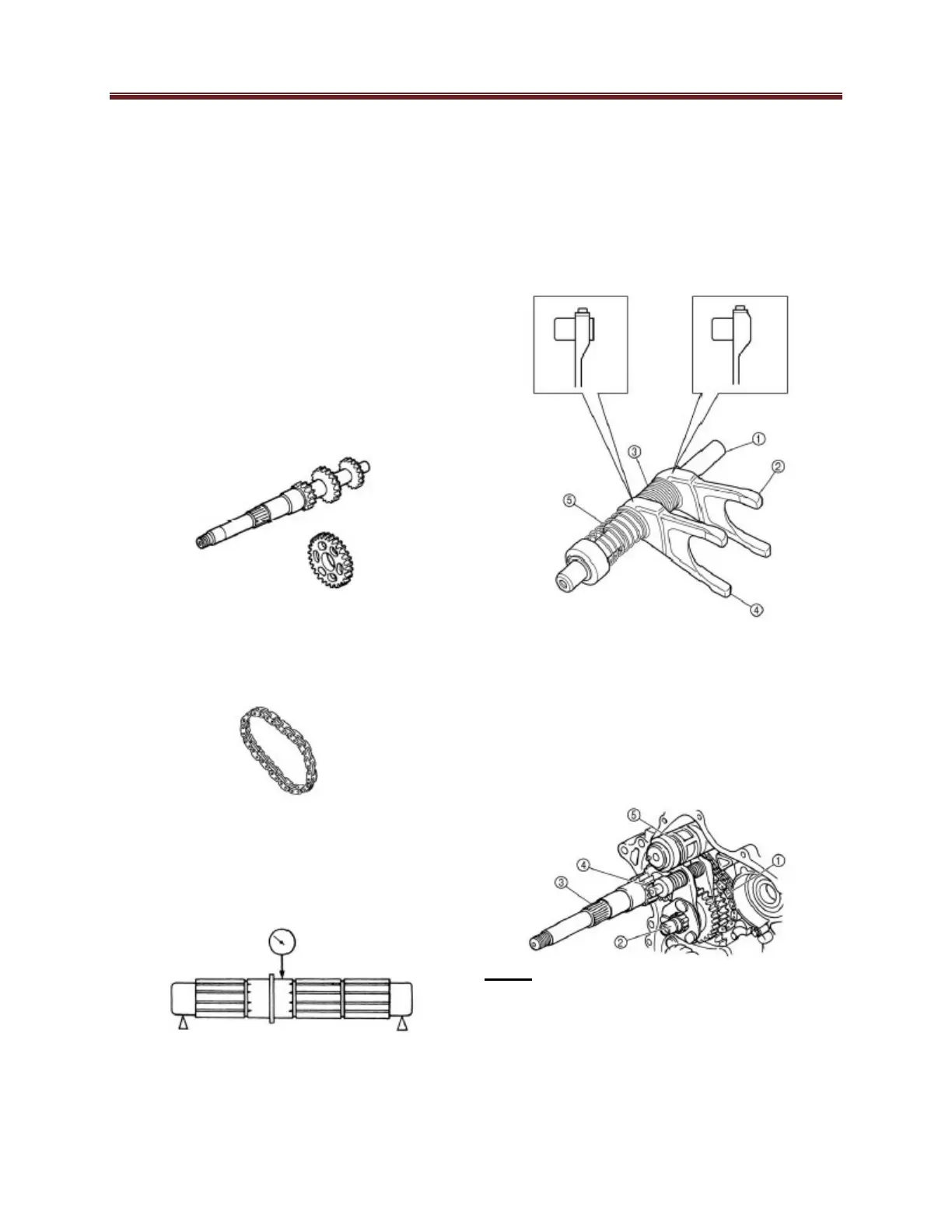

Cub Cadet Challenger 500 Service Manual

Engine
4‐42
Inspect the secondary shaft and driven
sprocket.
 Gear teeth
Look for discoloration, pitting or
wear.
 Gear movement
Look for smooth operation.
 Circlips
Look for bends, looseness or
damage.
 Chain
Look for cracks, stretch or wear.
Measure the shaft runout
Use a truing stand and a dial
gauge.
Shaft runout limit: 0.06 mm
Install
 Assembling the shift fork
Guide bar (1)
Shift fork (2)
Long Spring (3)
Shift fork (4)
Short Spring (5)
Installing the transmission
 Chain (1)
 Drive shaft assembly (2)
 Secondary Shaft (3)
 Shift fork assembly (4)
 Shift drum (5)
 Low wheel gear
Note:
Oil each gear and bearing thoroughly.
Before assembling, be sure the
transmission is in neutral and that the
gears turn freely.
