Cub Cadet Challenger 500 Service Manual

Chassis
5‐16

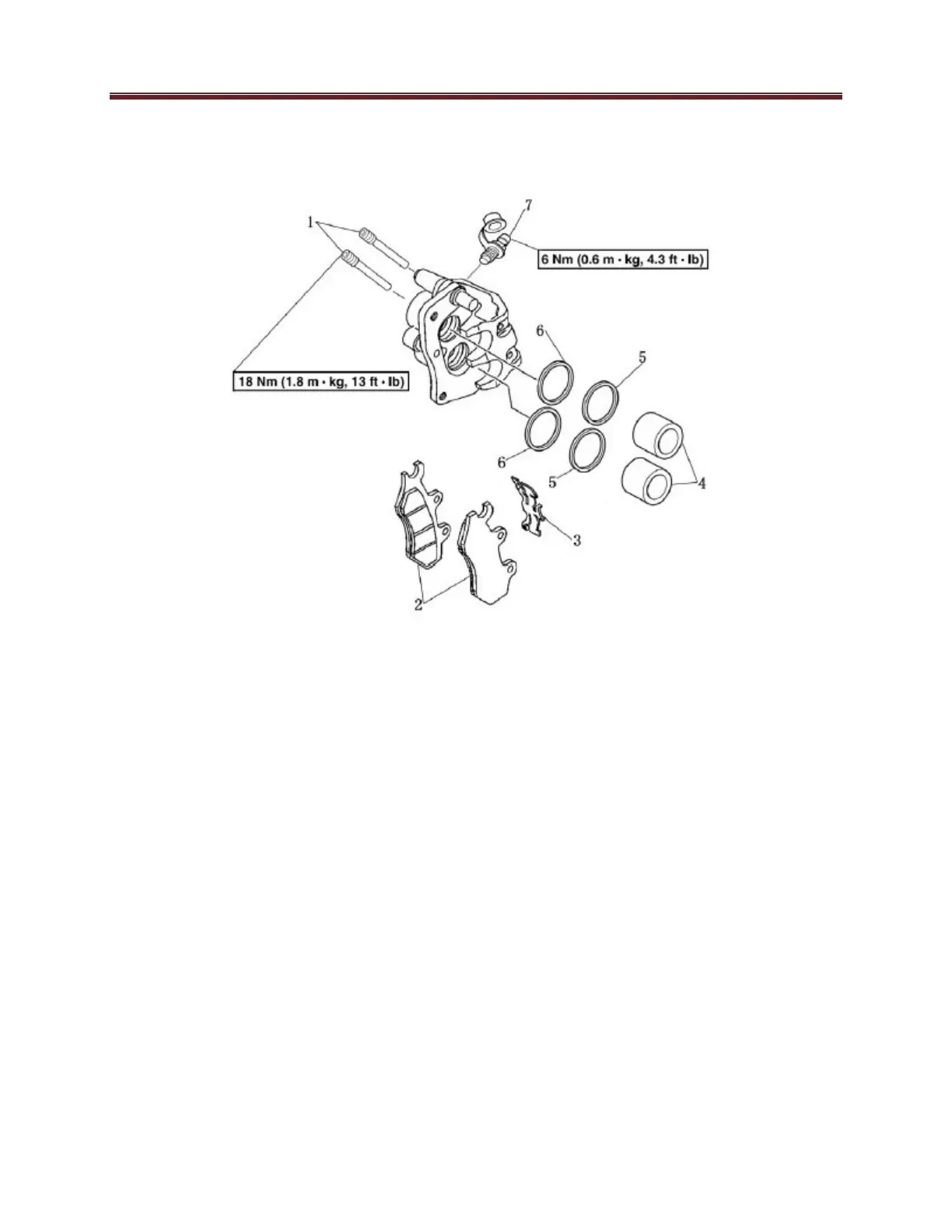

Brake Caliper Disassembly
No. Part Name
Disassembling the Front Brake
Caliper
Qty Remarks
Remove the parts in the order
listed
1 Brake pad holding bolt
2 Brake pad
3 Pad spring
4 Brake caliper piston
5 Dust seal
6 Caliper piston seal
7 Bleed screw
2
2
1
1
2
2 For installation, reverse the
2 order listed.
