Chassis
5‐22

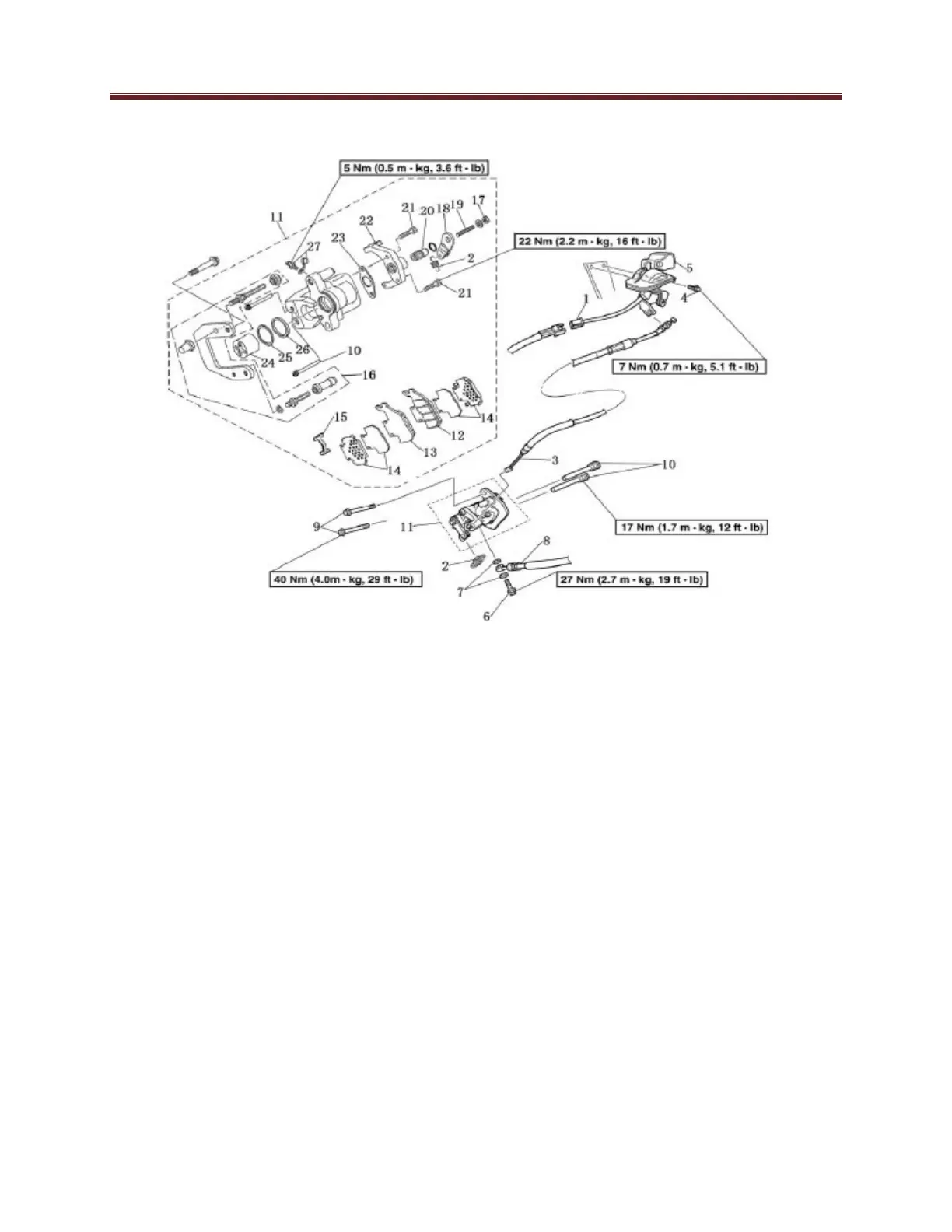

Rear Brake Caliper and Brake Pads
No. Part Name Qty
16 Brake caliper bracket 1
17 Parking brake arm nut 1
18 Parking brake arm 1
19 Set bolt 1
20 Parking brake arm shaft 1
21 Parking brake case bolt 2
22 Parking brake case 1
23 Gasket 1
24 Brake caliper piston 1
25 Dust seal 1
26 Caliper piston seal 1
27 Bleed screw 1
