Cub Cadet Challenger 500 Service Manual

Chassis
5‐25

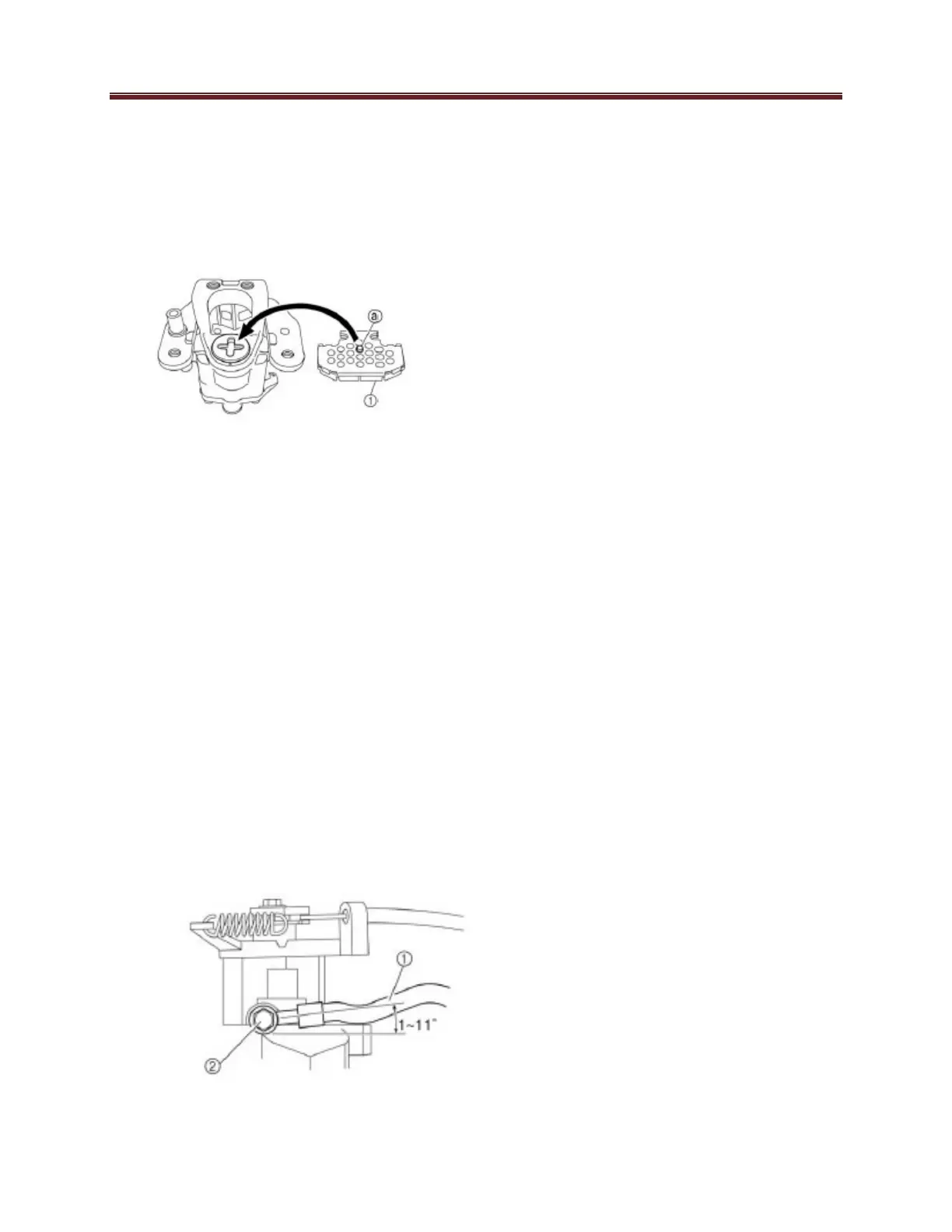

5. Install the brake pad (piston side)
(1) with insulator and pad shim.
 Align the projection (a) on the piston
side of the brake pad with the
groove in the caliper piston.
6. Install the brake pad holding bolts.
17Nm (1.7 m · kg, 12 ft · lb)
Installing the Rear Brake Caliper
1. Install the brake caliper with the
mounting bolts.
40Nm (4.0m · kg, 29 ft · lb)
 Brake hose (1)
 Copper washers
 Union bolt (2)
48Nm (4.8m · kg, 35 ft · lb)
2. Tighten the union bolt while holding
the brake hose as shown in this
illustration.
3. Bleed the brake system:
4. Check for proper brake fluid level in
the reservoir.
 Above the minimum level
mark.
5. Adjust the parking brake cable free
play.
