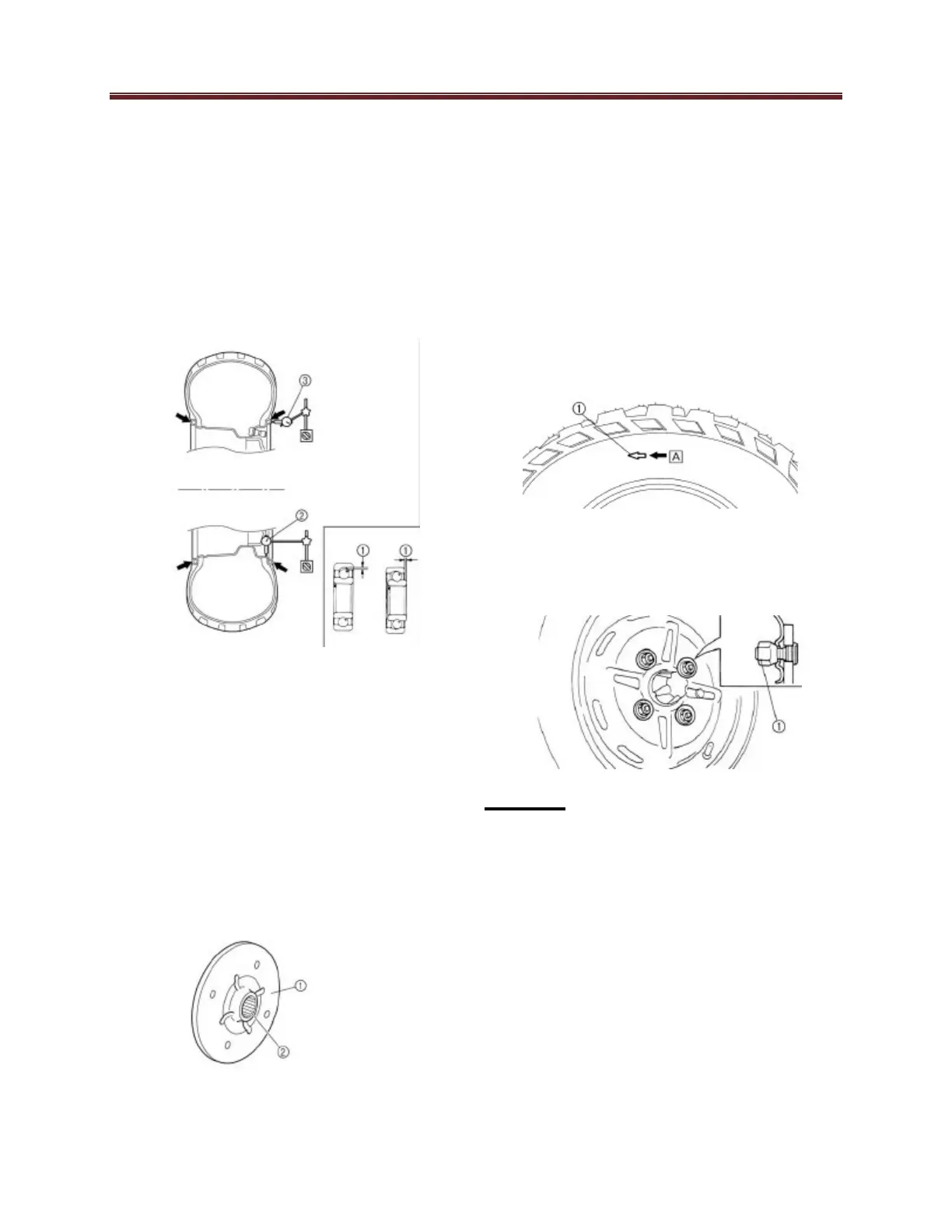

Chassis
532
Inspect the Rim
1.
Measure runout
Look for bends or damage.
Check wheel bearing end play.
Wheel runout limit:
Radial : 2.0 mm (0.08 in)
Lateral : 2.0 mm (0.08 in)
Check wheel balance.
Inspect the wheel hub
Wheel Hub (1)
Look for cracks or damage.
Splines (2)
Look for wear or damage.
Installing the wheel hub
Axle nut
260 Nm (26.0 m · kg, 190 ft · lb
)
Installing the Wheel Assembly
1.
Install the wheel with the arrow on
the tire pointing toward the front of
the UV.
2.
Install the tapered lug nuts.
Torque 55 Nm or 40 ft lbs.
Warning:
Wheels and tires are critical to the safe
operation of the UV. Periodic
inspection of tire air pressure and tread
depth are necessary to ensure stability
and lifespan of the tire. An improperly
inflated tire can cause excessive tire
wear and loss of traction, instability
and hard turning.
Tire Pressure
Front: 90 Kpa or 14 psi
Rear: 90 Kpa or 14 psi
