Cub Cadet Challenger 500 Service Manual

Chassis
5‐51

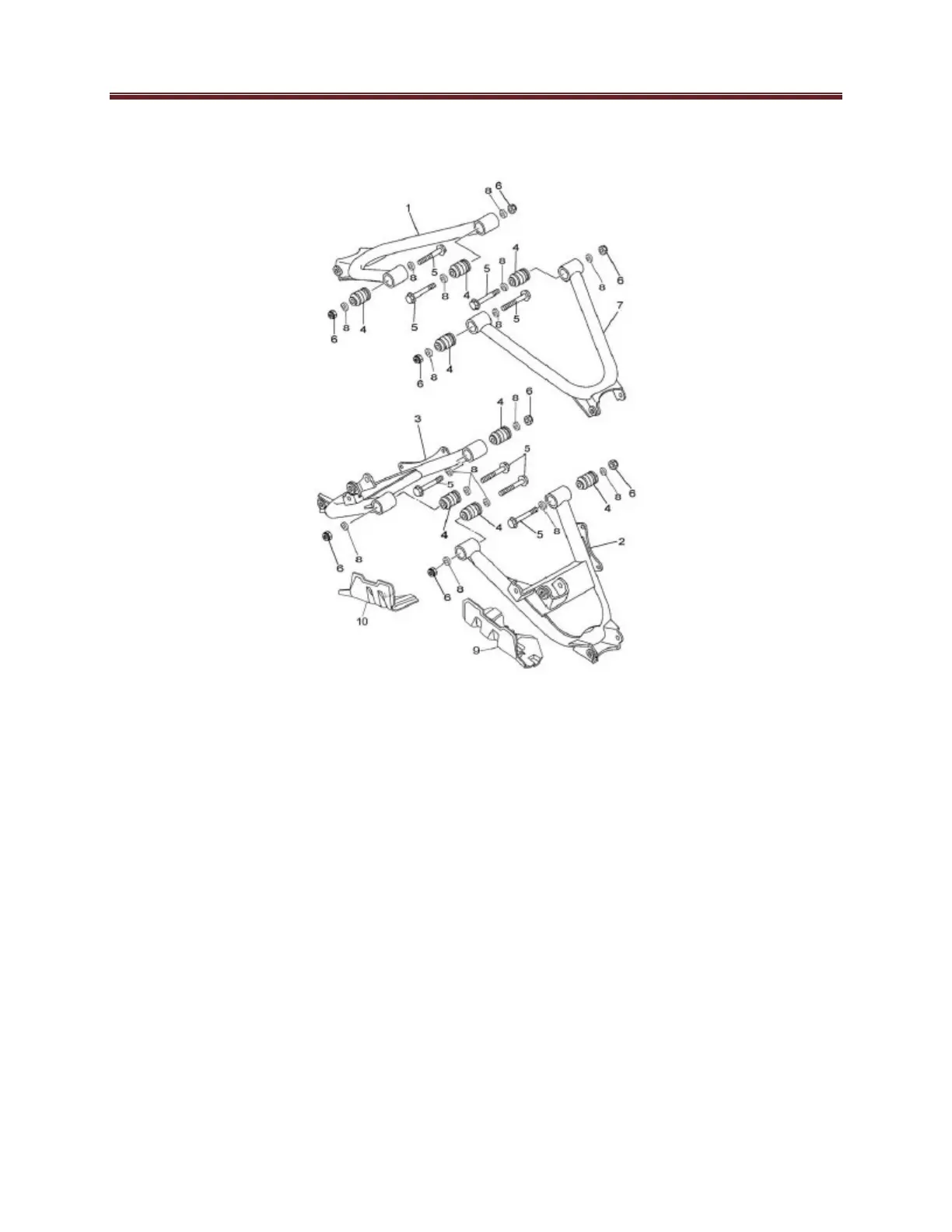

Rear A-Arm
No. Part Name Qty
1 Rear upper A-arm assembly 1
2 Rear Lower right A-arm assembly 1
3 Rear Lower left A-arm assembly 1
4 Bushing 8
5 Flange bolt 10mm X 1.25 X 70 8
6 Locknut 10mm X 1.25 8
7 Rear upper A-arm 1
8 Bushing gasket 16
9 Right rock deflector 1
10 Left rock deflector 1
