Cub Cadet Challenger 700

Engine
4‐40

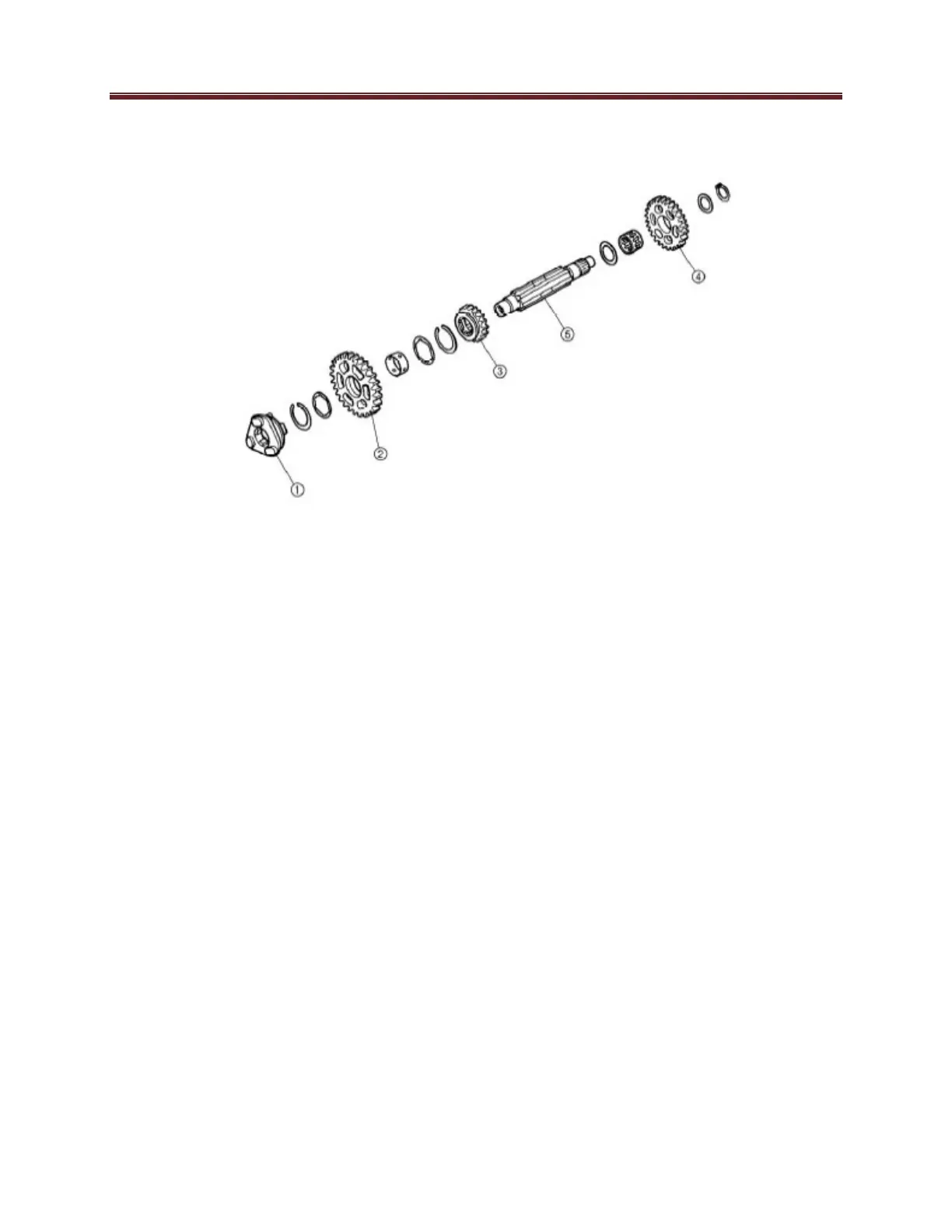

Drive Axle Assembly
No. Part Name Qty Remarks
Disassembling the Drive Axle
1 Clutch dog
2 High wheel gear
3 Middle drive gear
4 Driven sprocket
5 Drive axle
Remove the parts in the order listed
1
1
1
1 For installation, reverse the order
1 listed
