Cub Cadet Challenger 700

Engine
4‐44

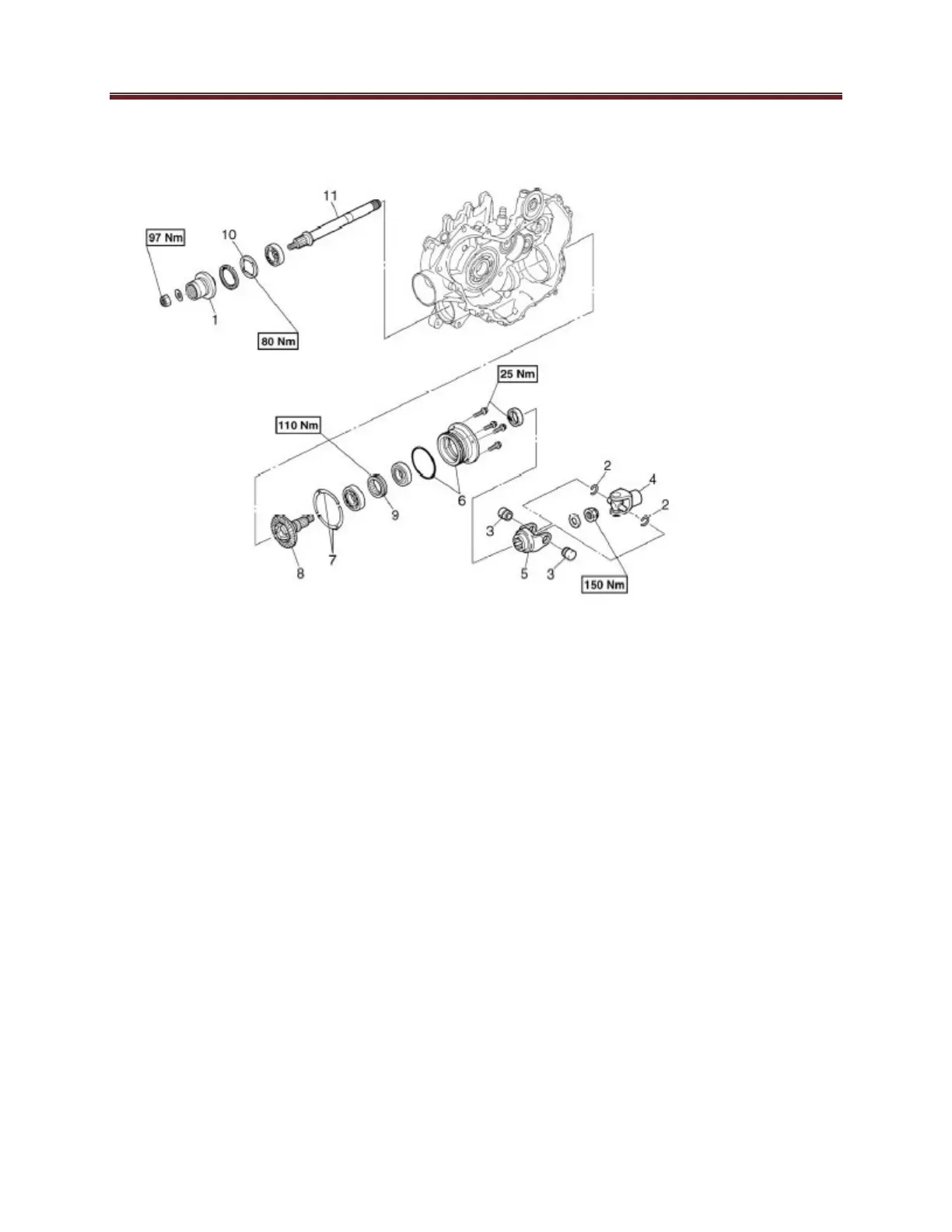

Middle Driven Shaft
No. Part Name Qty Remarks
Removing the middle drive shaft
Remove the parts in the order listed.
Crankcase separation
1 Drive shaft coupling
2 Circlip
3 Bearing
4 Universal joint
5 Universal joint yoke
6 Bearing housing / O-ring
7 Shim
8 Middle driven pinion gear
9 Bearing retainer
10 Bearing retainer
11 Middle driven shaft
1
2
2
1
1
1 / 1
1
1
1
1
1
For installation, reverse the order
listed
