Cub Cadet Challenger 700

Chassis
5‐50

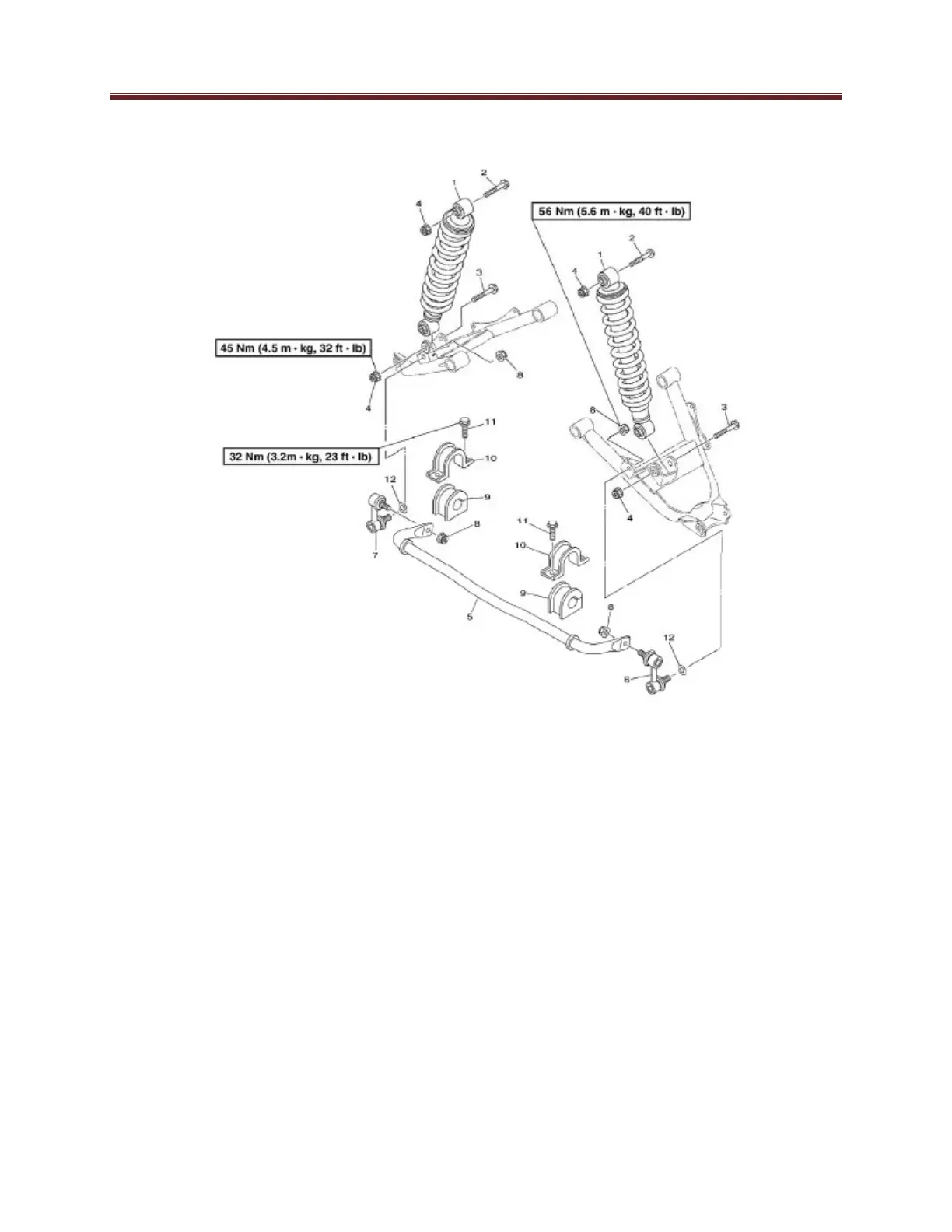

Rear Suspension
No. Part Name Qty
1 Rear shock absorber left and right 2
2 Flange bolt 12mm X 1.25 X 70 2
3 Flange bolt 12mm X 1.25 X 65 2
4 Nut 12mm X 1.25 4
5 Stabilizer 1
6 Left idler arm 1
7 Right idler arm 1
8 Locknut 8mm 4
9 Rubber isolator 2
10 Isolator mount 2
11 Flange bolt 8mm X 16mm 4
12 Cushion plate 2
