Cub Cadet Challenger 700 Service Manual

Chassis
5‐60

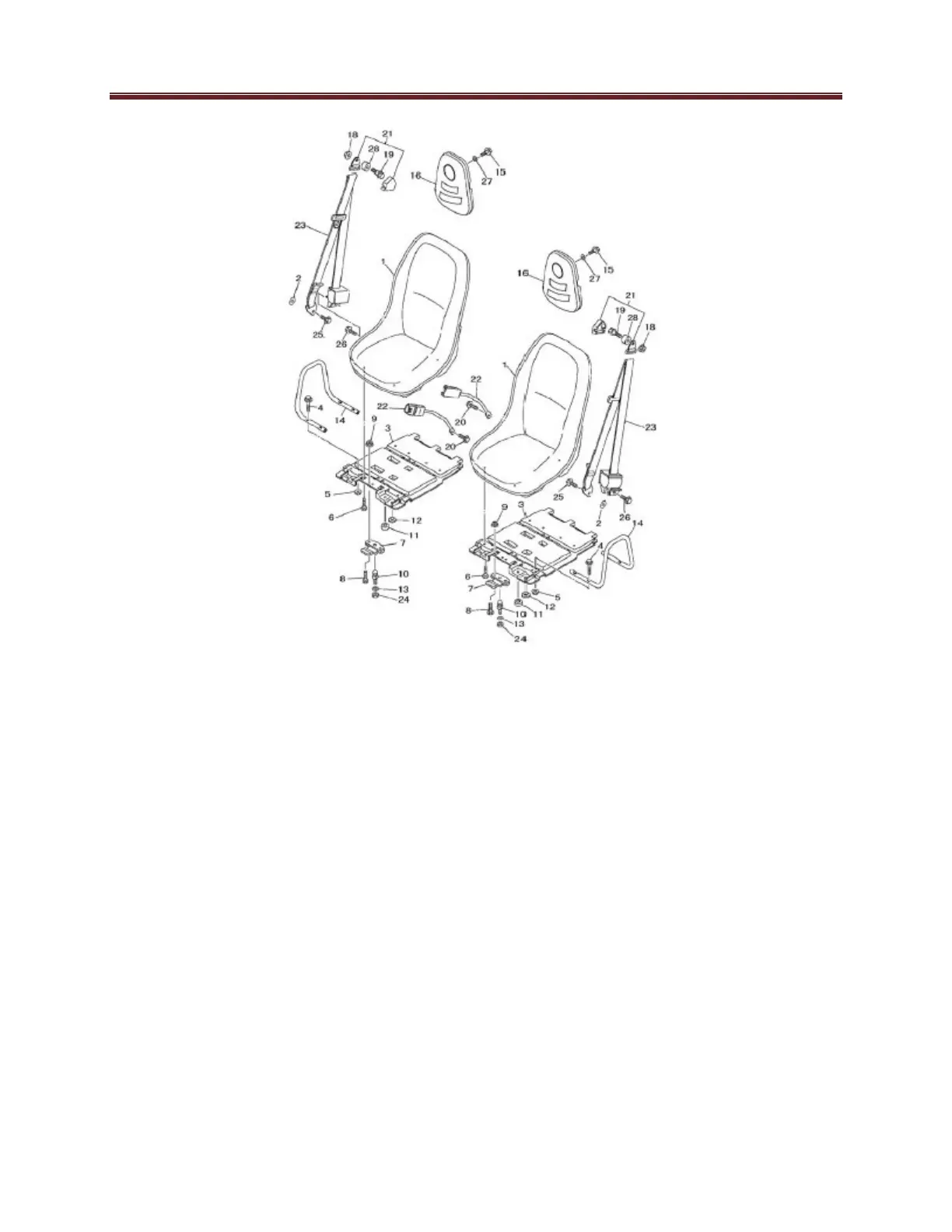

Seat
No. Part Name Qty
1 Seat assembly 2
2 Plate cushion 2
3 Seat pan 2
4 Flange bolt 8mm X 30mm 8
5 Flange locknut 8mm X 1.25 8
6 Flange bolt 8mm X 30mm 1
7 Seat latch 2
8 Bolt 6mm X 38mm 4
9 Nut 6mm 4
10 Seat latch stud 2
11 Grommet 1 4
12 Grommet 2 4
13 Bushing 10.5 2
14 Side armrest 2
15 Flange bolt 6mm X 25mm 6
16 Head rest 2
17 Bolt 8mm x 30mm 1
