Cub Cadet FT 24 Parts Manual

77

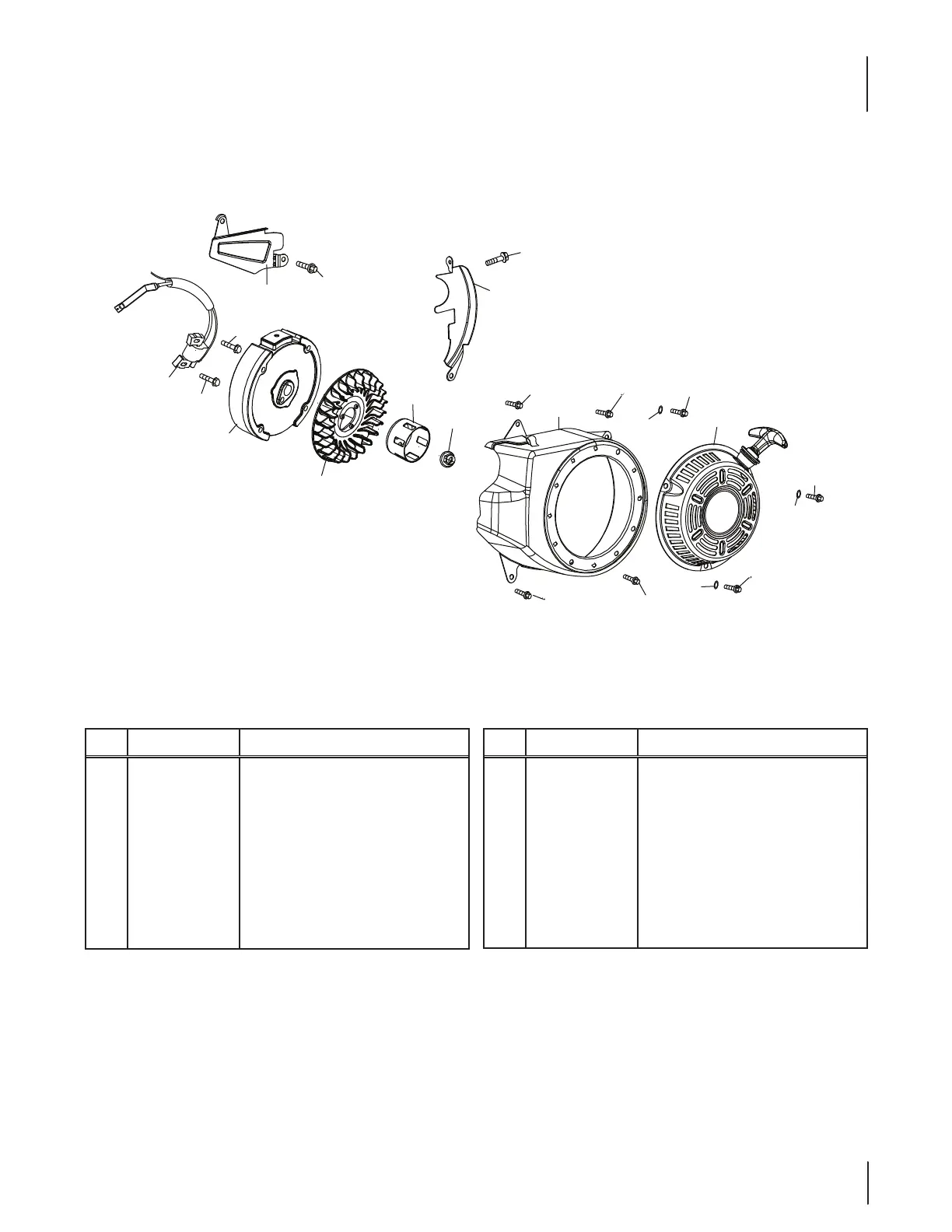

170-TU Flywheel & Blower Housing
Ref.
Part Number Description
75 951-11110 Air Flow Shield
76 710-04940 Bolt M6×10
78 951-10792 Ignition Coil Assembly
79 710-04919 Bolt M6×25
80 951-10805 Flywheel
81 951-10934 Fan, Cooling
82 951-10911 Pulley, Starter
83 712-04209 Nut, Special, M14×1.5
Ref.
Part Number Description
84 710-04915 Bolt M6×12
86 951-11583 Blower Housing
87 736-04455 Washer
88 710 -04974 Bolt M6×10
89 951-12418 Recoil Starter
122 710-04918 Bolt M6×20
123 951-1110 9 Blower Housing Shield
78
79
80
81
84
84
87
88
87
88
89
88
87
84
86
84
83
82
123
122
76
75
79
