-14-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-1268 Screw Hex Wash Hd., #10-16, 0.375 2
2 712-04063 Nut, Flange Insert Lock, 5/16-18, Gr5 2
3 712-3027 Nut, Flange Lock, 1/4-20 1
4 720-0433 Grip, Seat Adjustment (Yellow) 1
5 726-0201 Nut, Speed, .3125 ID 2
6 731-04074 Spacer, Seat, Adjustment 4
7 732-0499 Spring, Compression .41 OD x 1.50 1
8 732-1184 Spring, Extension, .84 Dia x 4.6 Lg. 1
9 736-0275 Washer, Flat, .344 x .688 x .065 3
10 736-3019 Washer, Flat, .531 x 1.062 x .134 2
11 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1
12 738-0296 Shoulder, Screw .437 x .286 Lg 2
13 738-0966 Screw, Shoulder, .50 x.93 4
14 783-0209C Bracket, Seat Lift 1
15 783-0611 Stop, Seat, Adjustment 1
16 783-0738A Bracket, Pivot, Seat 1
17 783-0739A Lever, Seat, Adjustment 1
18 783-0753 Selector, Seat, Adjustment 1
19 757-04035
777D06883
777D01782
Seat, Mid-back, V-1480
Graphic, Made in USA
Graphic, Cub Cadet
1
1
1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

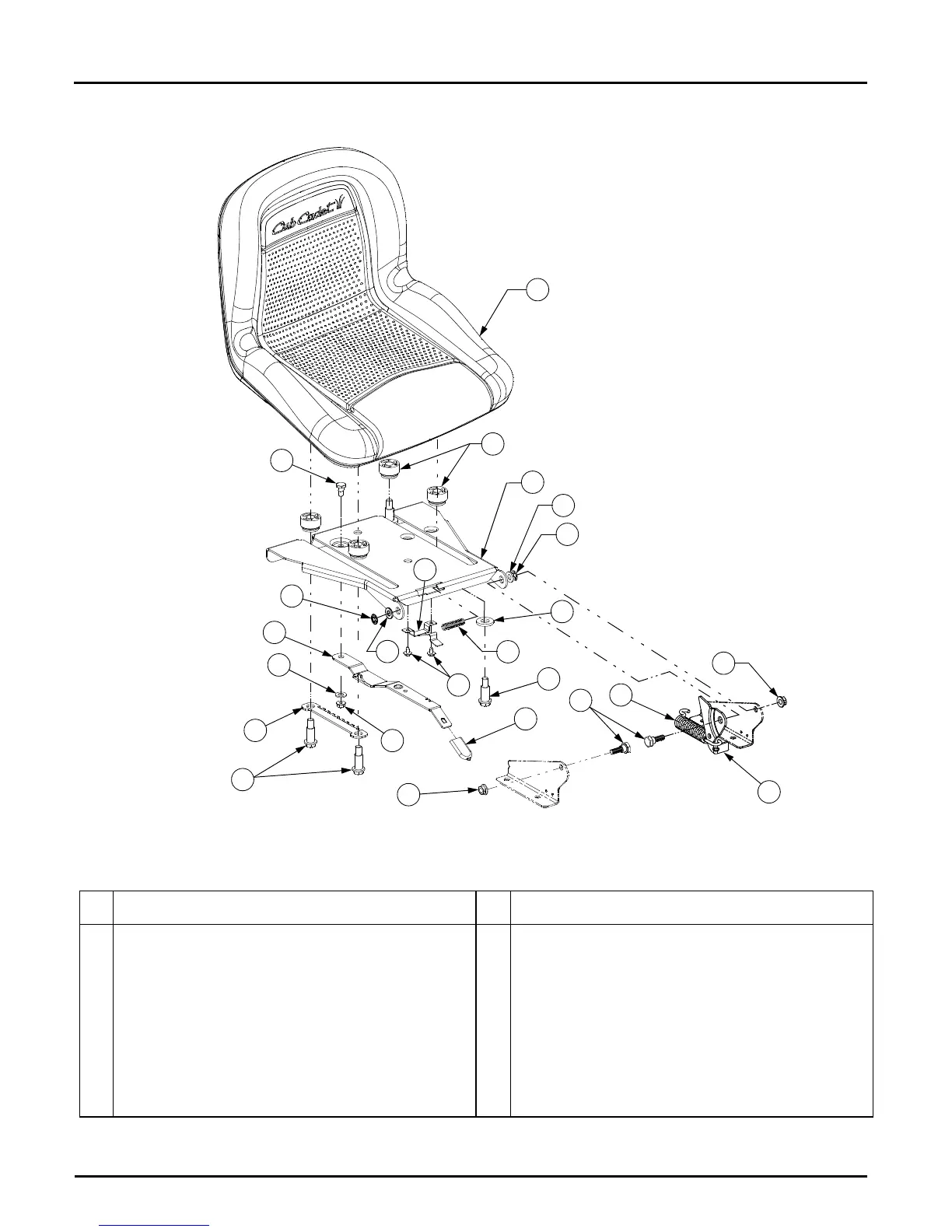

ADJUSTABLE SEAT
16
6
9
10
13
15
17
18
13
11
3
1
7
5
9
5
9
12
2
14
2
8
19
4
