-11-

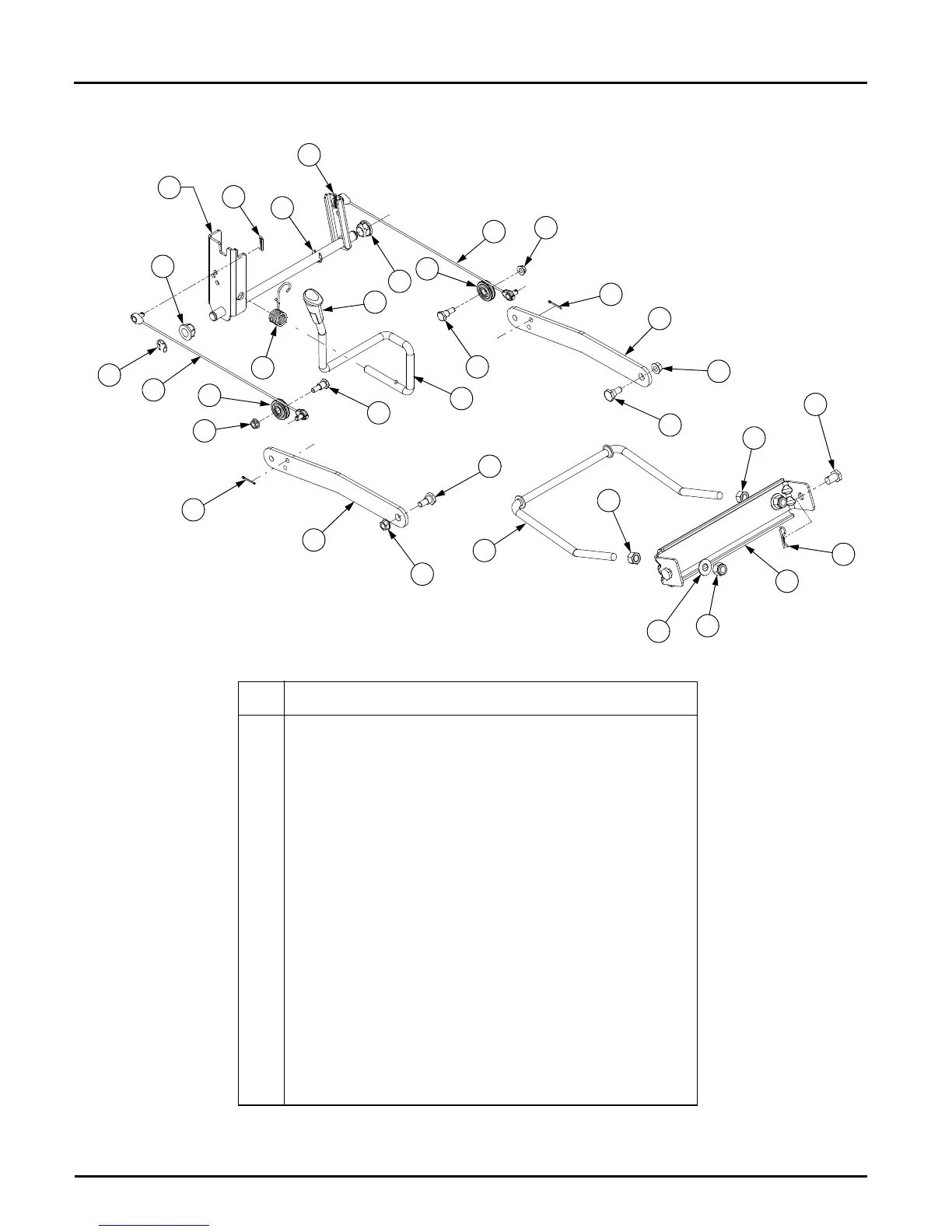

LIFT ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 683-04118 Shaft Assembly, Lift 1
2 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
3 712-0206 Nut, Hex, 1/2-13, Gr5 2
4 712-04065 Nut, Flange Insert Lock, 3/8-16 GrF 2
5 712-04063 Nut, Flange Insert Lock, 5/16-18, GrF 2
6 712-3083
Nut, Hex Lock, 1/2-13, Gr8, Nylon 2
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9 714-04023 Pin, Internal Cotter, .080 x 1.56 Lg 2
10 716-0106A E-ring, .625 Dia. Shaft 2
11 720-0311 Grip, Handle 1
12 732-0874 Spring, Torsion 1
13 736-3084 Washer, Flat, .510 x 1.120 x .060 2
14 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
15 738-0380 Shoulder Screw, .5 x .27:3/8-16 2
16 741-0225
Bearing, Hex Flange 2
17 746-0968 Cable, Lift, 16.16 Lg 2
18 747-04155 Handle, Lift 1
19 747-1324 Rod, Deck, Front Adjustment .5" Dia 1
20 756-1154 Pulley, Roller 2
21 783-0678A Lift, Arm 2
22 783-0720A Bracket, Adjustment, Front Deck Rod 1
5
8
4
4
8
5
1
7
17
16
20
11
14
21
15
18
14
10
12
20
17
16
10
21
15
19
13
22
2
3
9
6
3
B
B
A
A
7
