Cub Cadet GT1554 - Gas and Oil

-10-

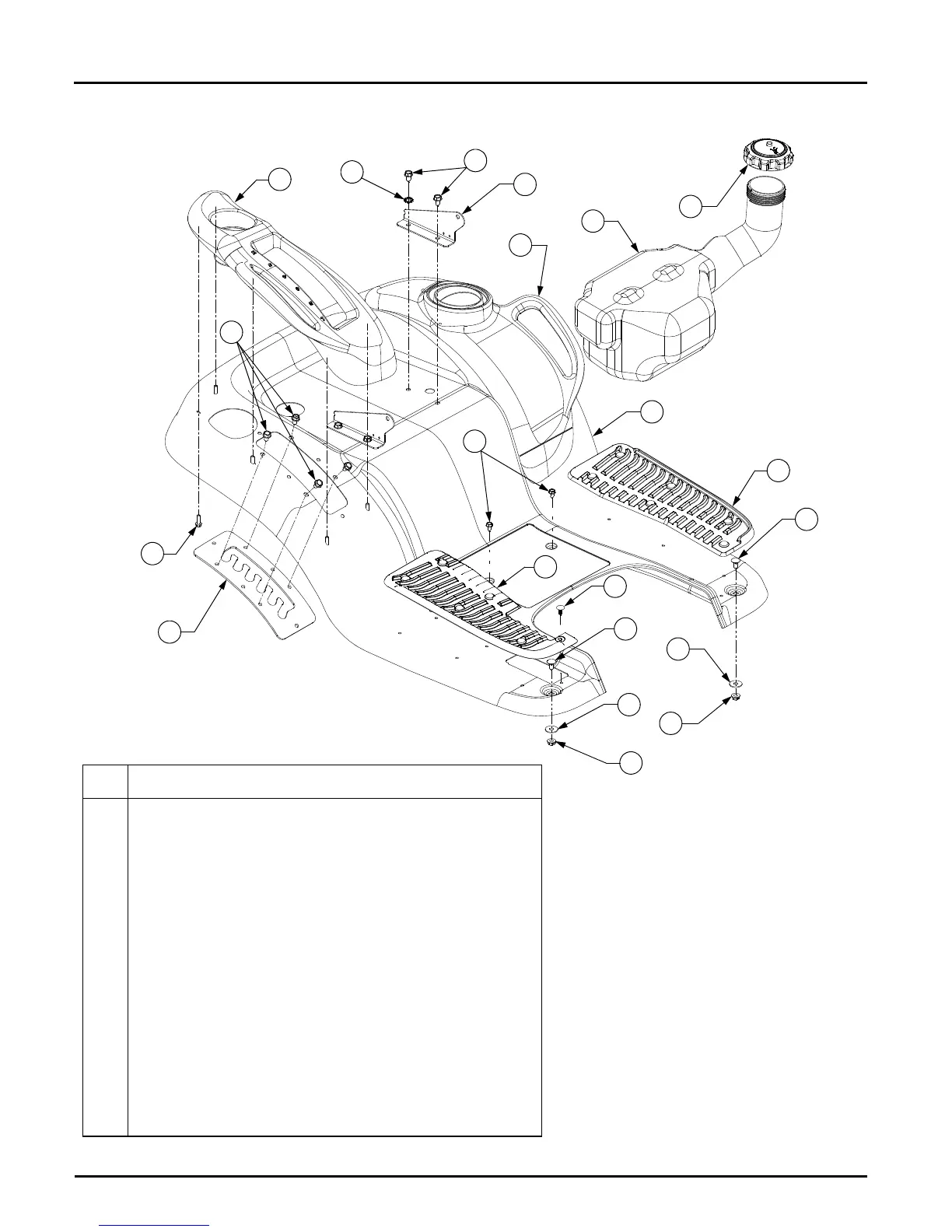

FENDER & FUEL TANK
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0451 Bolt, Carriage, 5/16-18 x .75 Lg 2
2 710-0599 Screw, Hex Wash Hd Tap, 1/4-20 x .5 2
3 710-0726 Screw, Hex Wash Hd Tap, 5/16-12, 0.75 8
4 710-0895 Screw, 1/4-15, 0.750 6
5 712-04063 Nut, Flange Insert Lock, 5/16-18 GRF 2
6 731-2616A Cover, Fender, RH 1
7 731-2617 Cover, Fender, LH 1
8 736-0607 Washer, External Tooth Lock, 5/16 1
9 736-3078 Washer, Flat, .349 x 1.00 x .063 2
10 783-04398A
777D08309
777S32484
Fender
Graphic, Rear of Fender
Graphic, Warning/Instruction
1
1
1
11 783-0677 Bracket, Lift, Adjustment 1
12 783-1489A Bracket, Seat, Mount 2
13 726-3046 Clip, Ratchet, .250 Dia 12
14 735-0697 Pad, Foot, LH 1
15 735-0698A Pad, Foot, RH 1
16 751-0819B Tank, Fuel 1
15 751-3124B Cap, Fuel 1
