Cub Cadet i1046 Parts Manual

i1046 & i1050/Series i1000 SECTION HM12
30
18
17
19
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16

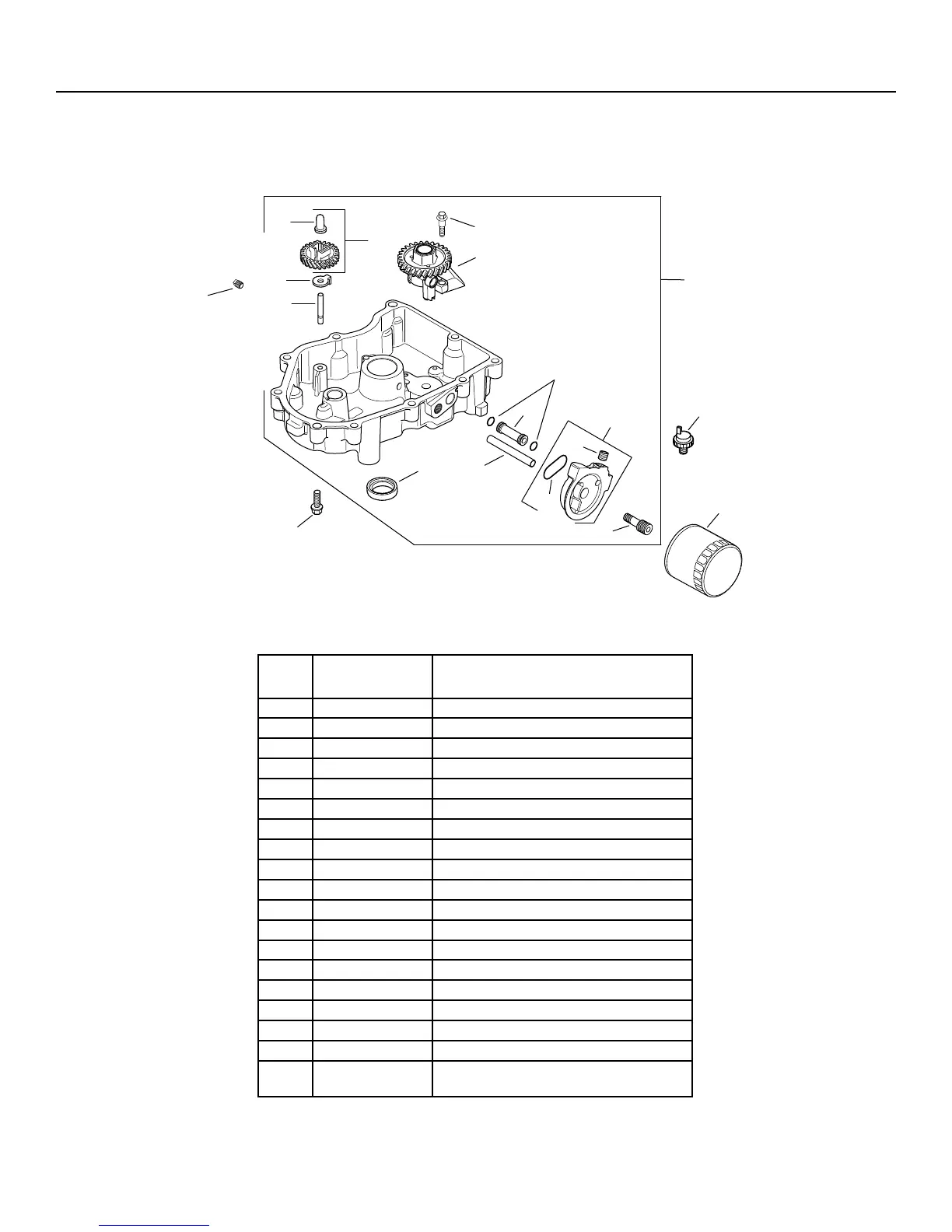

i1046 & i1050 Oil Pan/Filter
Ref.
No.
Part No. Description
1 KH-32-199-02-S Pan Assembly, Oil (Incl. Ref. 2-15)
2 KH-32-086-01-S Screw, Flnge Thrd. Frmng M6 x 1.0 x 26.5
3 KH-32-393-10-S Pump Assembly, Oil
4 KH-24-043-12 Kit, Governor Gear w/Pin (Incl. Ref. 5)
5 KH-12-380-01 Pin, Governor Regulating
6 KH-24-448-02-S Tab, Locking
7 KH-12-144-02 Shaft, Governor Gear
8 KH-52-032-08-S Seal, Oil (PTO End)
9 KH-32-123-01-S Tube, Oil Feed - Filter to Pan
10 KH-32-123-03-S Tube, Oil Feed - Pan to Filter
11 KH-24-153-01-S O-Ring, Oil Pick-up
12 KH-32-029-07-S Kit, Oil Filter Adapter
13 KH-25-139-60-S Plug, Pipe, 1/8
14 KH-32-153-04-S O-Ring, Oil Filter Adapter
15 KH-32-136-03-S Nipple, Oil Filter
16 KH-25-099-27-S Switch, Oil Pressure
17 KH-52-050-02-S Filter, Oil
18 KH-24-086-17-S Screw, Flange, M8 x 1.25 x 45
19 KH-25-139-57-S Plug, Sq. Hd. Pipe, 3/8 NOT USED- Re-
placed by Oil Drain Valve

Cub Cadet i1046 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	46 inches
Transmission	Hydrostatic
Drive	Rear-wheel drive
Cutting Height	1.5 - 4 inches
Number of Blades	2
Blade Engagement	Electric PTO
Turning Radius	18 inches
Weight	580 lbs
Deck Material	Steel
Deck Type	Stamped
Engine Type	4-Cycle
Fuel Capacity	3.3 gallons
Warranty	3-year limited
