Lawn Tractor controls and features are illustrated in
and described on the following pages.
WARNING! Read and follow all safety rules and
instructions in this manual, including the entire
Operation section, before attempting to operate
this machine. Failure to comply with all safety rules
and instructions may result in personal injury.
NOTE: Your tractor is equipped with either a Throttle/Choke
Control Lever which controls the throttle and choke or separate
Throttle and Choke controls. Use the controls and features that
are applicable to your tractor.
Brake Pedal
The brake pedal is located on the left
front side of the tractor above the drive
pedal along the running board. The
brake pedal can be used for sudden
stops or setting the parking brake.
NOTE: The brake pedal must be fully depressed to activate the
safety interlock switch when starting the tractor.
Throttle/Choke Control Lever
The throttle/choke control is located on the left
side of the tractor’s dash panel. This lever controls
the speed of the engine and, when pushed all the
way forward, closes the choke for cold starting.
When set in a given position, the throttle will
maintain a uniform engine speed.
NOTE: When operating the tractor with the
cutting deck engaged, be certain that the
throttle/choke control is always in the FAST
(rabbit) position. Operating with the throttle
at less than full throttle may lead to shortened
battery life, and poor cut quality.
Seat Adjustment Lever
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position of
the operator’s seat. Refer to the Assembly and Set-Up section of
this manual for more detailed instructions.
LCD Service Minder
& Hour Meter
Brake Pedal
Drive Pedal
Deck Lift Lever
Cup Holder
Fuel Tank Cap
Throttle/Choke Control
Ignition Switch
Module
Parking Brake/
Cruise Control Lever
Seat Adjustment Lever
Reverse Pedal
Storage Bin
Fuel Level Indicator
Electric PTO Knob
Cargo Net

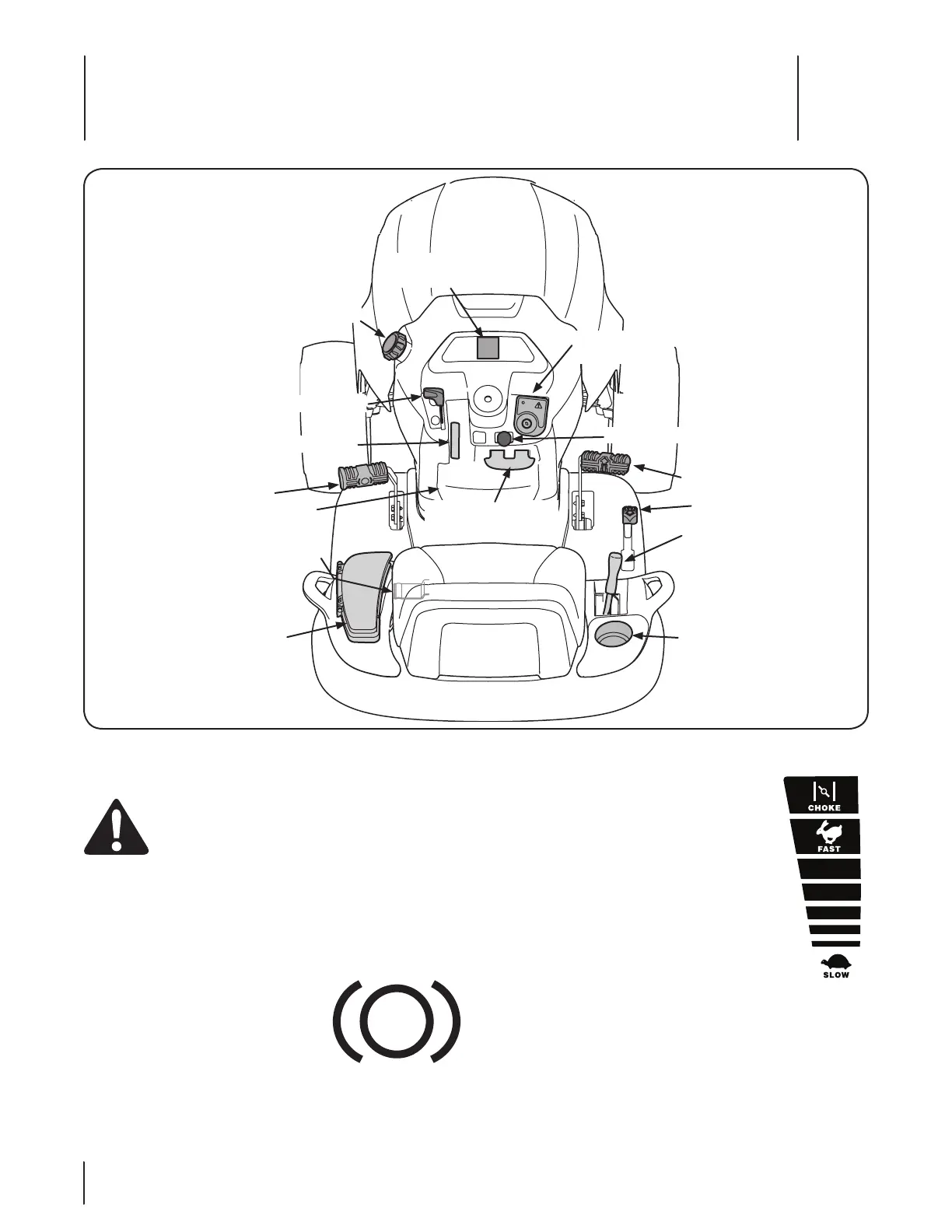

Figure 4-1
Controls and Features
