Cub Cadet LT1042 Parts Manual

14

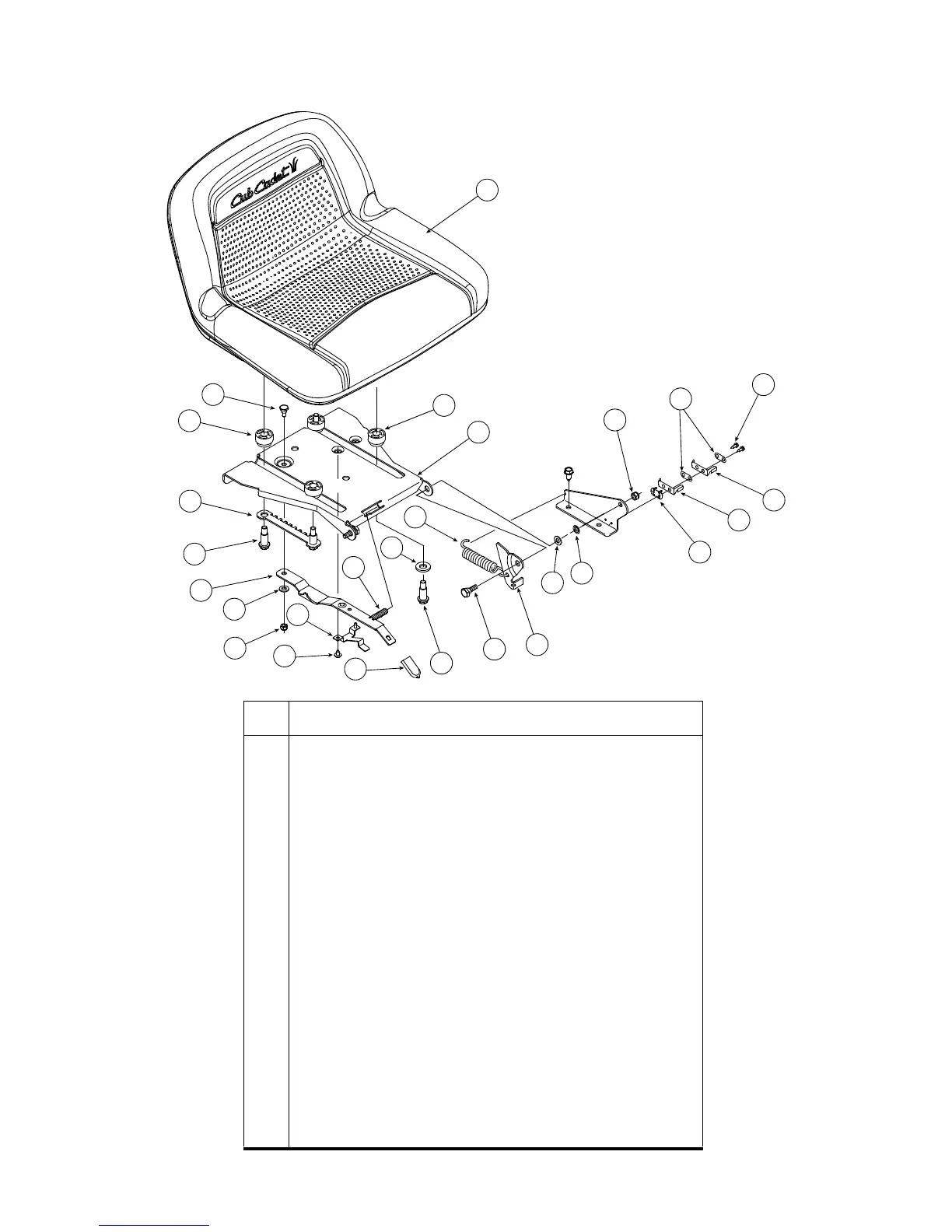

ADJUSTABLE SEAT
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 783-0739A Lever, Seat, Adjustment 1
2 710-1268 Screw, #10-16, 0.375 2
3 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 2
4 712-3027 Nut, Nylon Lock, 1/4-20 1
5 720-0433 Grip, Seat, Adjustment (Yellow) 1
6 726-0201 Nut, Speed, .3125 ID 2
7 731-04074 Spacer, Seat, Adjustment 4
8 732-0499 Spring, Compression .41 OD x 1.50 1
9 732-1184 Spring, Extension, .80 Dia x 4.6 Lg. 1
11 757-04004 Seat 1
12 783-0753 Selector, Seat, Adjustment 1
13 736-0275 Washer, Flat, .344 x .688 x .065 2
14 736-3019 Washer, Flat, .531 x 1.062 x .134 2
15 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1
16 738-0296 Shoulder, Screw .437 x .286 Lg 2
17 738-0966 Screw, Shoulder, .50 x.925, 3/8-16 4
18 783-0209C Bracket, Seat Lift 1
19 783-0611 Stop, Seat, Adjustment 1
20 710-0227 Screw, #8-18 x .50 2
21 726-0279 Plate, Insulator 2
22 725-1303 Spring Switch, Inner 1
23 725-1439 Spring Switch, Outer 1
24 726-0278 Plate, Insulator Boss 1
22
23
24
6
13
18
15
9
14
8
2
3
4
13
1
17
12
7
7
10
11
15
21
20
16
19
5

Cub Cadet LT1042 Specifications

General

Style	Tractor
Color	Yellow
Cutting Width	-
Cutting Height	-
Cutting Method	Optional Side Discharge
Number of Blades	-
Drive System	Rear Wheel Drive
Case Size: U1R	12V
Noise Level	-
Features	Cruise Control
Accessories	-
Motor / Engine Model	Kohler Courage SV590
Power Output	-
Cylinders	1
Generator	-
Power / Fuel Type	Gasoline
Fuel Tank Volume	13.2 liters (3.5 US gal.; 2.9 Imp. gal)
SAE 5W30 (below 32°F/0°C)	SG or SL
w/o Filter: 44 oz. (1	1.5 L (1.59 US. qt

Weight and Dimensions

Depth	1730 mm
Height	1090 mm
Width	1143 mm
Net Weight	226 kg
