Remove the oil fill cap/ dipstick from the oil fill tube.
4. Push the oil drain hose (packed with this manual) onto the
oil drain port. Route the opposite end of the hose into an
appropriate oil collection container with at least a 2.5 quart
capacity, to collect the used oil. See .
Figure 6-1
5.
the plug. See .
6. After the oil has finished draining, retighten the bolt.
Remove the oil drain hose.
7.
Manual included with the tractor.
8.
Manual for information regarding the volume and weight
of engine oil.
Changing the Engine Oil on Kohler Engines
Run the engine for a few minutes to allow the oil in the
crankcase to warm up. Warm oil will flow more freely and
carry away more of the engine sediment which may have
settled at the bottom of the crankcase. Use care to avoid
burns from hot oil.
2.
right side of the engine.

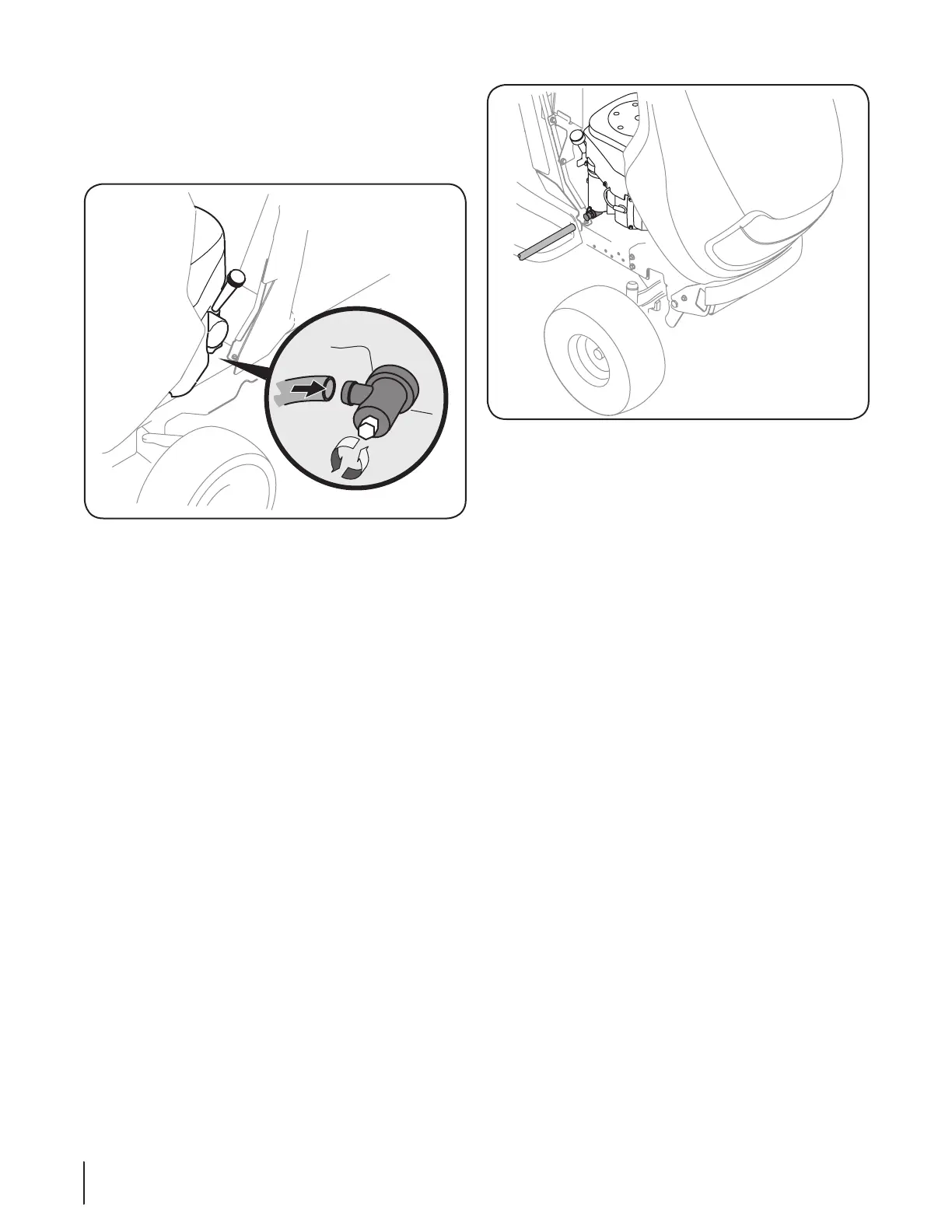

Pop open the protective cap on the end of the oil drain
valve to expose the drain port. See Figure 6-2.
Figure 6-2
4. Remove the oil fill cap/ dipstick from the oil fill tube.
5. Push the oil drain hose (packed with this manual) onto the
oil drain port. Route the opposite end of the hose into an
appropriate oil collection container with at least a 2.5 quart
capacity, to collect the used oil.
6. The engine is equipped with a twist-and-pull drain port.
Turn the oil drain valve ⁄-turn, then pull outward to begin
draining oil. After the oil has finished draining, push the
end of the oil drain valve back in and turn ⁄turn to secure
it back in place Re-cap the end of the oil drain valve to
keep debris from entering the drain port.
7.
Manual included with the tractor.
8.
Manual for information regarding the volume and weight
of engine oil.
Air Cleaner
Service the pre-cleaner and cartridge/air cleaner element as
Spark Plug
The spark plug should be cleaned and the gap reset once a
and gap specifications.
Hydrostatic Transmission
The hydrostatic transmission is sealed at the factory and is
maintenance-free. The fluid level cannot be checked and the
fluid cannot be changed.
20 Section 6 — Maintenance & adjuStMentS
