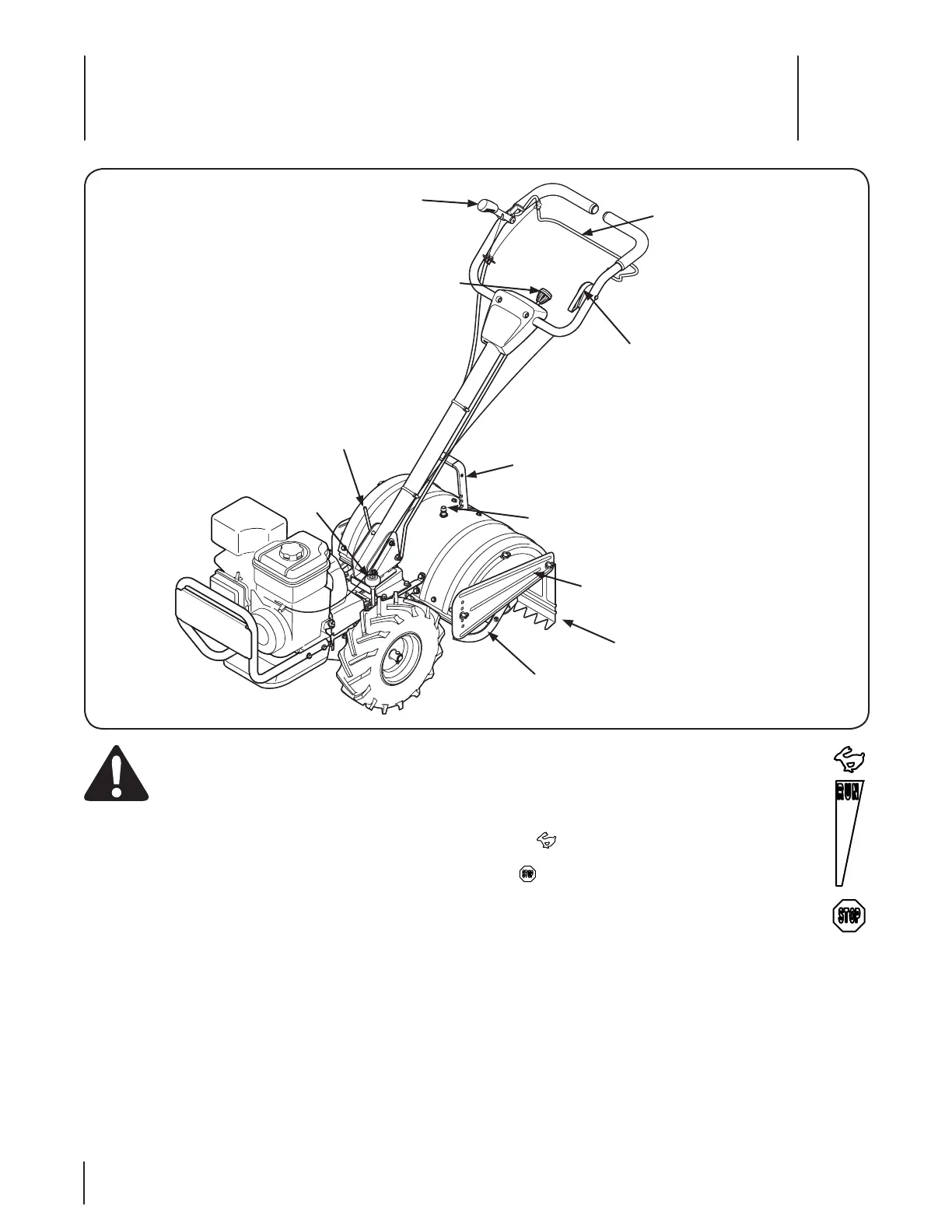

Controls & Features
4
10
Forward Clutch Bail
Reverse Clutch Handle
Throttle Control
Handle Pivot Control Knob
Handle Adjustment Lock
Neutral
Lever
Depth Adjustment Lever
Side Shield
Tines
Rear Tine Shield
Tine Shield Wash Nozzle
WARNING! Before operating your machine,
carefully read and understand all safety, controls
and operating instructions in this manual and on the
decals on the machine. Failure to follow these
instructions can result in serious personal injury.
Forward Clutch Bail
The forward clutch bail is located on the upper handle and
controls the engagement of the forward drive of the wheels
and engages the tines. See the Operation section for more
information on using the forward clutch bail.
Reverse Clutch Handle
The reverse clutch handle is located on the right side of the
upper handle and controls the engagement of the rearward drive
of the wheels and engages the tines. See the Operation section
for more information on using the reverse clutch handle.
Throttle Control
The throttle control is located on the inside, left of the
upper handle and controls the engine speed. Push the
throttle control forward to increase the engine speed.
The tiller is designed to be operated with the throttle in
the RUN (full throttle) position. Pull the throttle back
to decrease the engine speed and all the way back to the
STOP position to stop the engine.
Depth Adjustment Lever
This lever controls the tilling depth of the tines. Pull the
lever back and slide it up or down to engage the notched height
settings. See the Operation section for more information on using
the depth adjustment lever.
Handle Adjustment Lever
The handle adjustment lever is used to adjust the handle height
and is adjustable to three different settings. In general, adjust
the handlebars so they are at waist level when the tines are
3-4” in the ground. See the Assembly & Set-Up section for more
information on the handle adjustment Lever.
