Assembly & Set-Up
3
7
Contents of Carton
• One Tiller • One Handlebar Assembly • One Bottle of Engine Oil
• Two Cable Ties • One Operator’s Manual • One Engine Operator’s Manual
NOTE: Reference to the right or left side of the tiller is
determined from the operator’s position behind the machine. All
exceptions will be noted.
WARNING! To prevent personal injury or property
damage, do not start the engine until all assembly
steps are complete and you have read and
understand the Safe Operation Practices Section
and the Operating Section in this manual.
Assembly
Unpacking Instructions
1. Remove the staples, break the glue on the top flaps, or cut
the tape at the end of the carton and peel along the top
flap to open carton.
2. Remove the loose parts included with the tiller (i.e.,
Operator’s Manual, etc.).
3. Cut the corners and lay the carton down flat.
4. Remove the packing materials.
5. Roll or slide the tiller out of the carton. Check the carton
thoroughly for loose parts.
6. Extend the control cable and lay it on the floor. Be careful
not to bend or kink the control cable.
NOTE: This tiller is shipped without gasoline or oil in the
engine. Be certain to service engine with gasoline and oil as
instructed in the separate Engine Operator’s Manual before
operating your machine.
Handle
1. Remove the hex screw, handle crank adjuster, retainer
bracket and flange lock nuts from the handle mounting
brackets. See Figure 3-1.

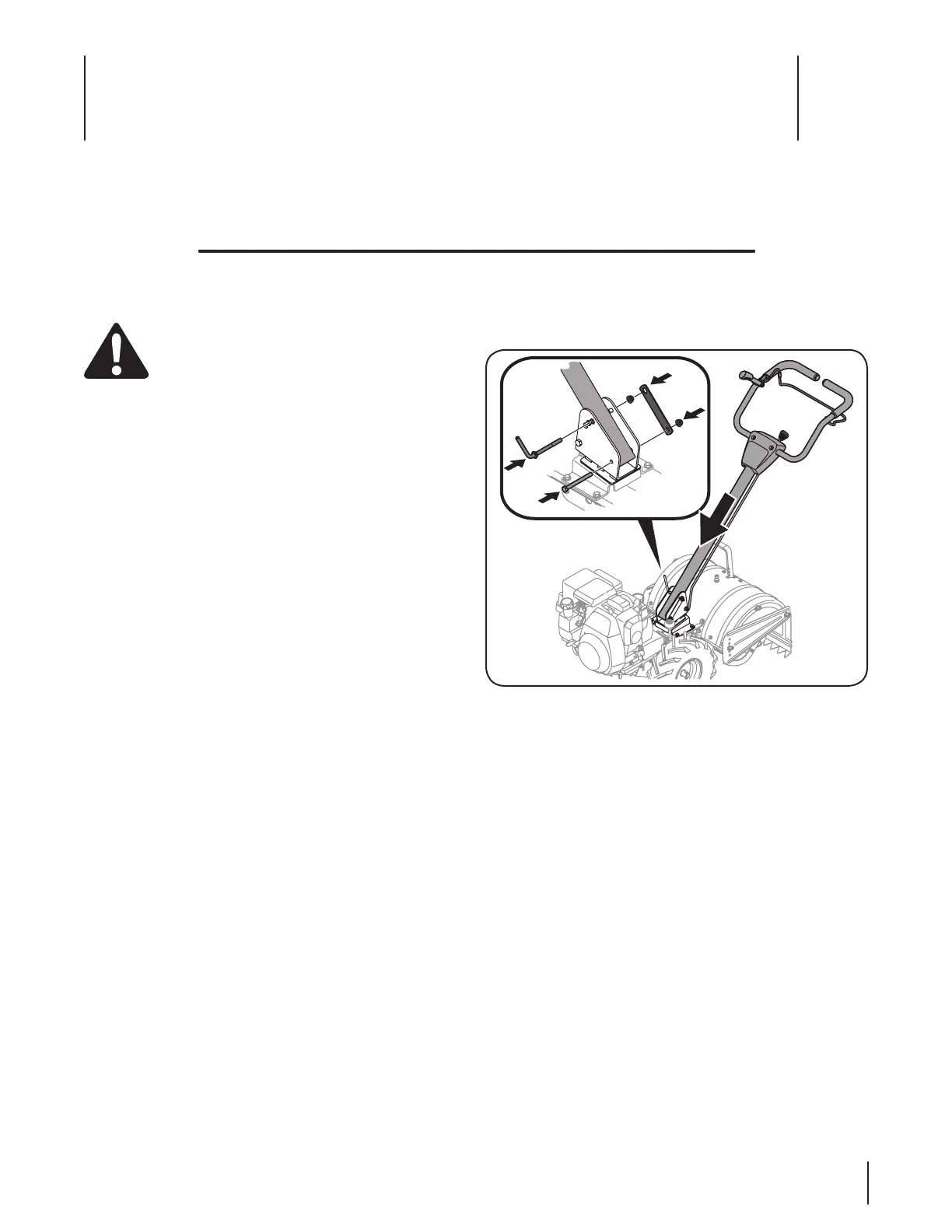

Figure 3-1
2. Place the handle assembly in position between the handle
bracket. See Figure 3-1.
3. Line up the holes in the handle with the holes in the
bracket and secure it with hardware previously removed.
