8 Section 3— ASSembly & Set-Up

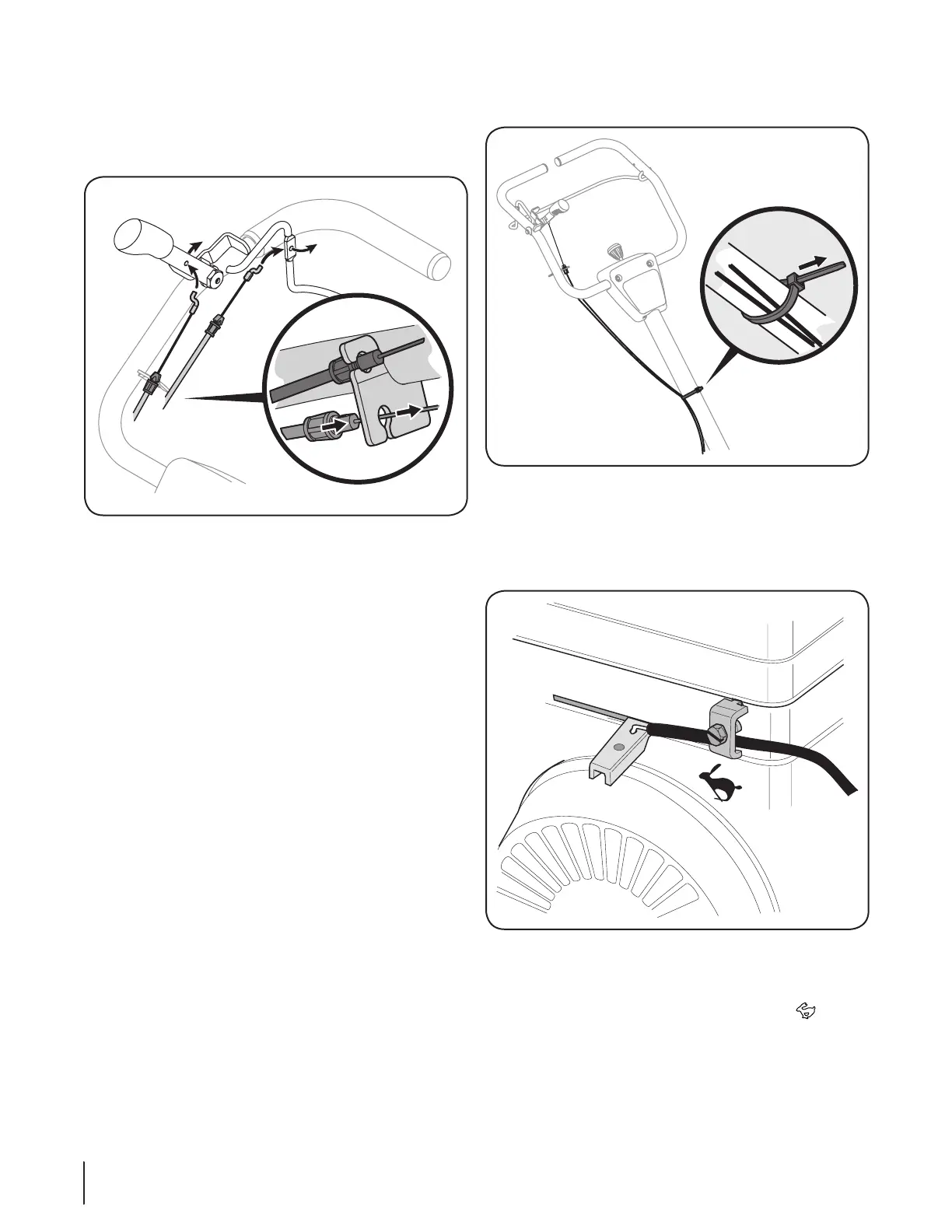

Forward & Reverse Clutch Cables
To attach the cables, follow these steps:
1. Route the forward (black) clutch cable along the handle
assembly on the right-hand side. See Figure 3-2.
Figure 3-2
2. Connect the forward clutch cable to the forward clutch
bail by feeding the z-hook through the hole on the bail
from the outside towards the inside. See Figure 3-2.
3. Snap the cable housing clips into the handle assembly
cable mount as shown in Figure 3-2. The clip feeds into the
lower position on the handle assembly. See Figure 3-2.
NOTE: To test the function of the forward clutch bail, lift
the bail to the handle and release it. The bail should return
to its neutral position. If it doesn’t, contact your local dealer
for technical assistance.
4. Route the reverse (red) clutch cable along the handle
assembly on the right-hand side. See Figure 3-2.
5. Connect the reverse clutch cable to the reverse clutch
handle by feeding the z-hook through the hole on the
handle from the inside towards the outside. See Figure 3-2.
6. Snap the cable housing clips into the handle assembly
cable mount as shown in Figure 3-2. The clip feeds into the
upper position on the handle assembly.
7. Using a cable tie secure the two cables onto the handle
about mid-way down the shaft. See Fig. 1-3.
Figure 3-3
Throttle Cable
1. Remove the casing clamp and screw from the front left of
the engine and hook the throttle cable into the throttle as
shown in Figure 3-4.
Figure 3-4
2. Reinstall the casing clamp and screw but do not fully
tighten the screw yet.
3. Slide the throttle lever all the way into the RUN position
then fully tighten the screw to secure the throttle cable in
place.
