16 se c t i O n 4— cO n t r O l s & fe a t u r e s

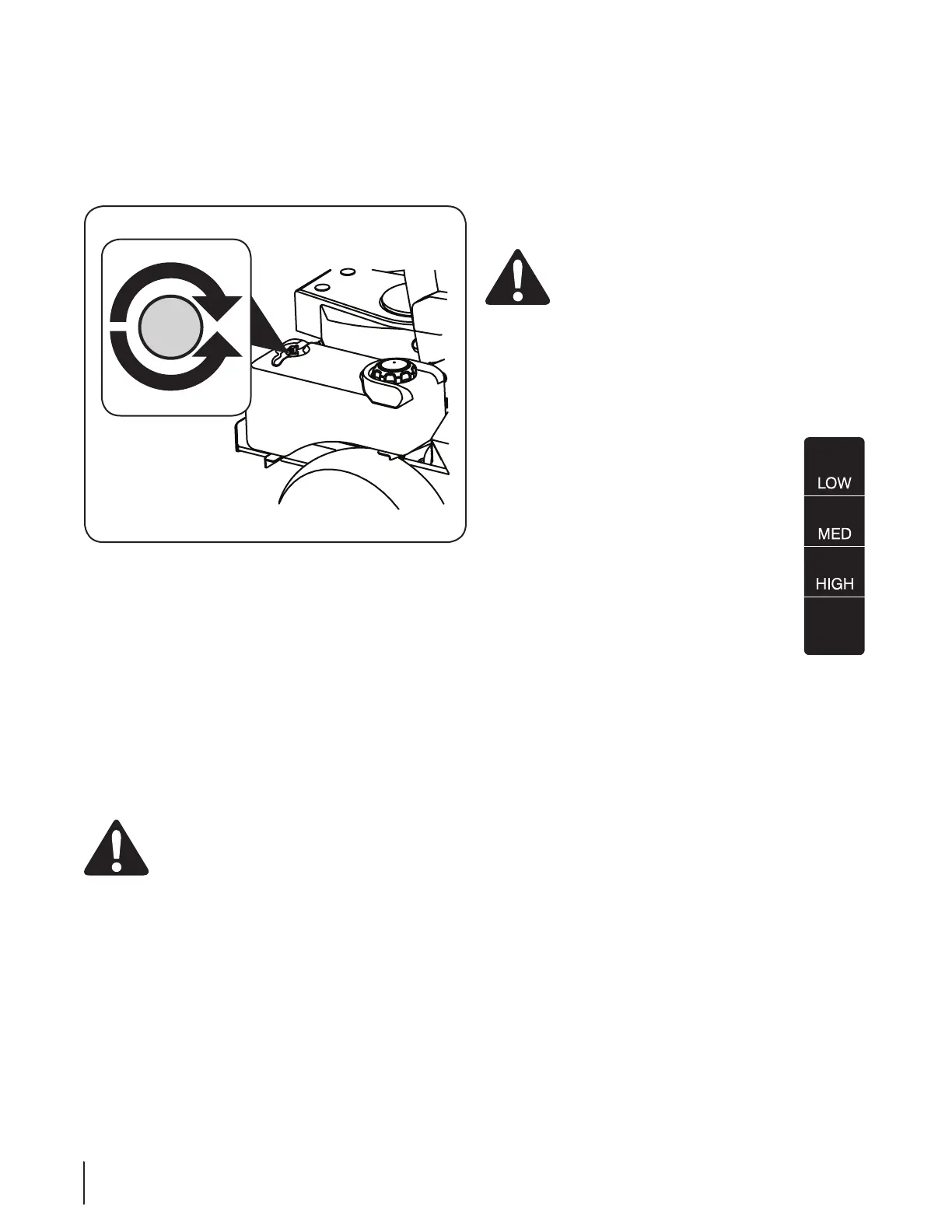

Fuel Shut-Off Valve
The fuel shut-off valve is located on top of the fuel tank(s). When
turned in a clockwise direction until it stops, it will shut off the
flow of fuel to the engine. When turned in a counterclockwise
Fig. 4-2.
NOTE: Close this valve if you are not going to run the mower for a
Seat Adjustment Lever (Not Shown)
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position
section for instructions on adjusting the seat position.
Roll Over Protective System (ROPS)
The roll-over protection system is an integral part of you zero-
turn tractor. It is designed to create a crush-resistant space for
the operator in the event of a roll-over.
DANGER!
not be tampered with, modified or removed. If the
system is damaged, it must be replaced prior to
injury or death.
Transmission Bypass Valves (Not Shown)
transmission) are located just in front of the engine and just
behind the seat.
When engaged, the two valves open a bypass within the
hydrostatic transmissions, which allows the tractor to be pushed
short distances by hand. Refer to the Maintenance & Adjustments
section for instructions on using the bypass feature.
CAUTION: Never tow your tractor. Towing the
tractor with the rear wheels on the ground may
cause severe damage to the transmissions.
Hydrostatic Pumps and Motors
The pumps are located behind the seat and are the hardest-
working components in the hydraulic system. They are in
operation all the time the engine is running. The pumps and
Front Skirts
The front skirts are located on the front of the deck
and help lift the grass for precision cutting or can be
raised to allow for the cutting of large volumes of
more information on adjusting the front skirt.
Figure 4-2
