Removing/Installing the Inner Baffle
The inner flow-control baffle can be removed depending on
the mowing conditions. The baffle controls discharge and can
be removed for high-volume grasses and installed for precision
cutting.
Remove the carriage bolts and flange lock nuts that secure
Re-install the inner baffle for precision cutting and make 2.
sure the baffle is properly secured.
Adjusting the Rear Rollers
The rear rollers help prevent the scalping of high spots and
uneven terrain across the center section of the deck. The rollers
will increase the striping effect left behind the mower. This
positioning of the rear roller will also help to filter the mulched
grass clippings into the turf.
NOTE: Roller should not be lowered if the cut height is set at 2-⁄”
or lower.
Adjusting the Front Skirt
The front skirt can be raised or lowered depending on the
mowing conditions. The skirt has three settings; low, medium
more information. Raise the skirt to cut higher volumes of grass
and lower the skirt to increase grass lift for precision cutting.
Loosen — but do not remove — the nuts securing the skirt,
place in the proper position and then retighten the nut.
Repeat on the other side and be sure that both skirts are in 2.
the same position.

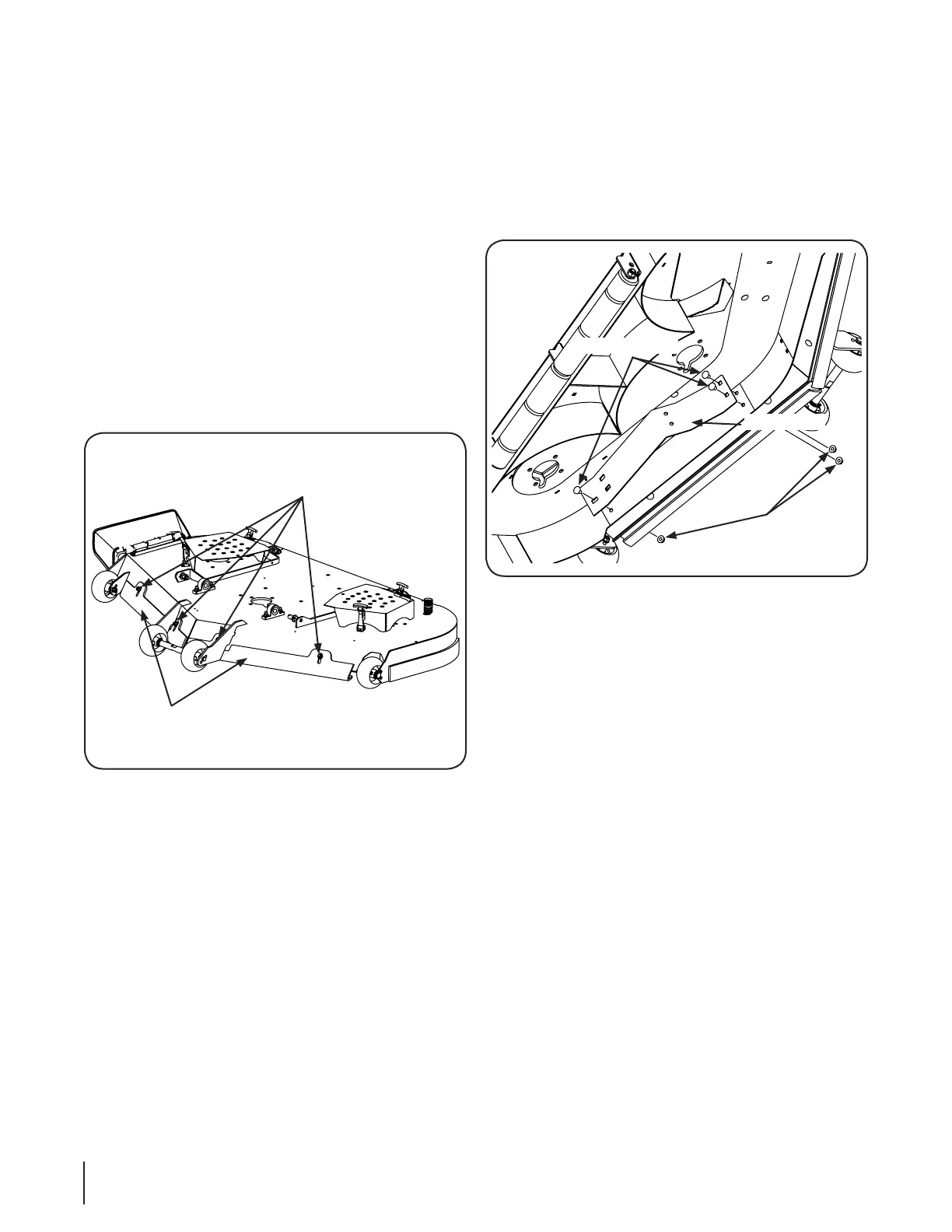

Flange
Lock
Nuts
Carriage Bolts
Inner Baffle
Figure 6-12
Flange Lock Nuts
Front Skirts
Figure 6-11
