Section 2— ASSembly & Set-Up14
Seat Adjustment
Standard Seat (If equipped)
This machine is equipped with an adjustable seat, which includes
a retractable seat belt assembly and an Operator Presence
Sensor (OPS). The OPS in the form of a switch, is integrated into
the seat bottom and is connected to the machine electrical
system.
The seat can be adjusted forward and back and the arm rest can
be adjusted up and down.

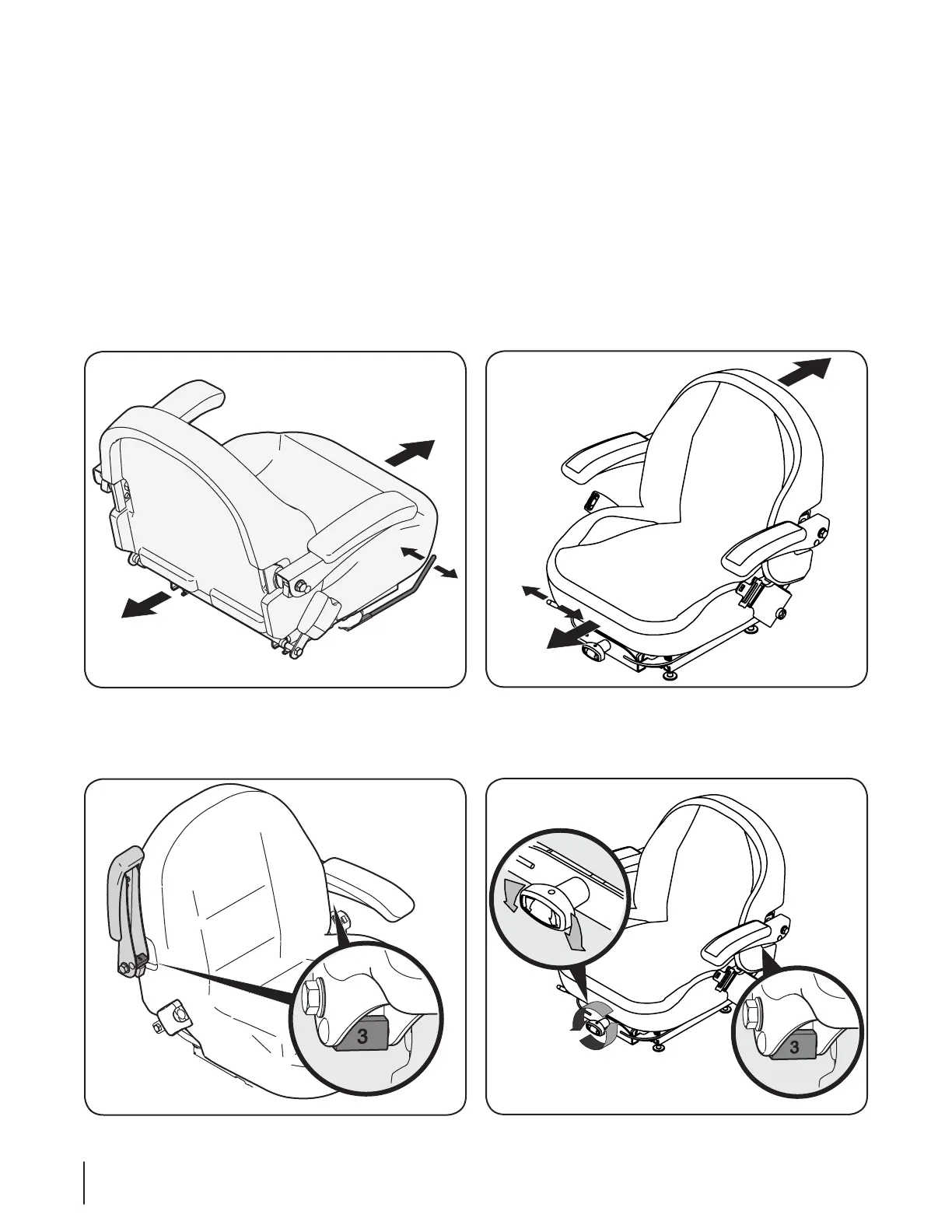

To move the seat forward or back, locate the seat adjustment rod
under the seat. Push the rod to the left and slide the seat forward
or back into the desired position and release the rod when the
seat is in the desired position. See Fig. 3-9.
Figure 3-9
To adjust the arm rest, lift the arm rest and rotate the block
adjustment into one of the four positions (0-3, 0 being the lowest
and 3 being the highest.) and lower the arm rest. See Fig. 3-10.
Figure 3-10
Suspension Seat (If equipped)
This machine is equipped with an adjustable seat, which includes
a retractable seat belt assembly and an Operator Presence
Sensor (OPS). The OPS in the form of a switch, is integrated into
the seat bottom and is connected to the machine electrical
system.
The seat can be adjusted forward and back, the armrests can
be adjusted up and down and the mechanical suspension
mechanism weight/ride adjustment controls can be adjusted for
weights between 125- and 275-pounds.
To move the seat forward or back, locate the seat adjustment rod
under the seat. Push the rod to the left and slide the seat forward
or back into the desired position and release the rod when the
seat is in the desired position. See Fig. 3-11.
Figure 3-11
To adjust the arm rest, lift the arm rest and rotate the block
adjustment into one of the four positions (0-3, 0 being the lowest
and 3 being the highest.) and lower the arm rest. See Fig. 3-12.
Figure 3-12
