Section 4 — controlS & FeatureS 17
Digital Tachometer and Hour Meter
0.0

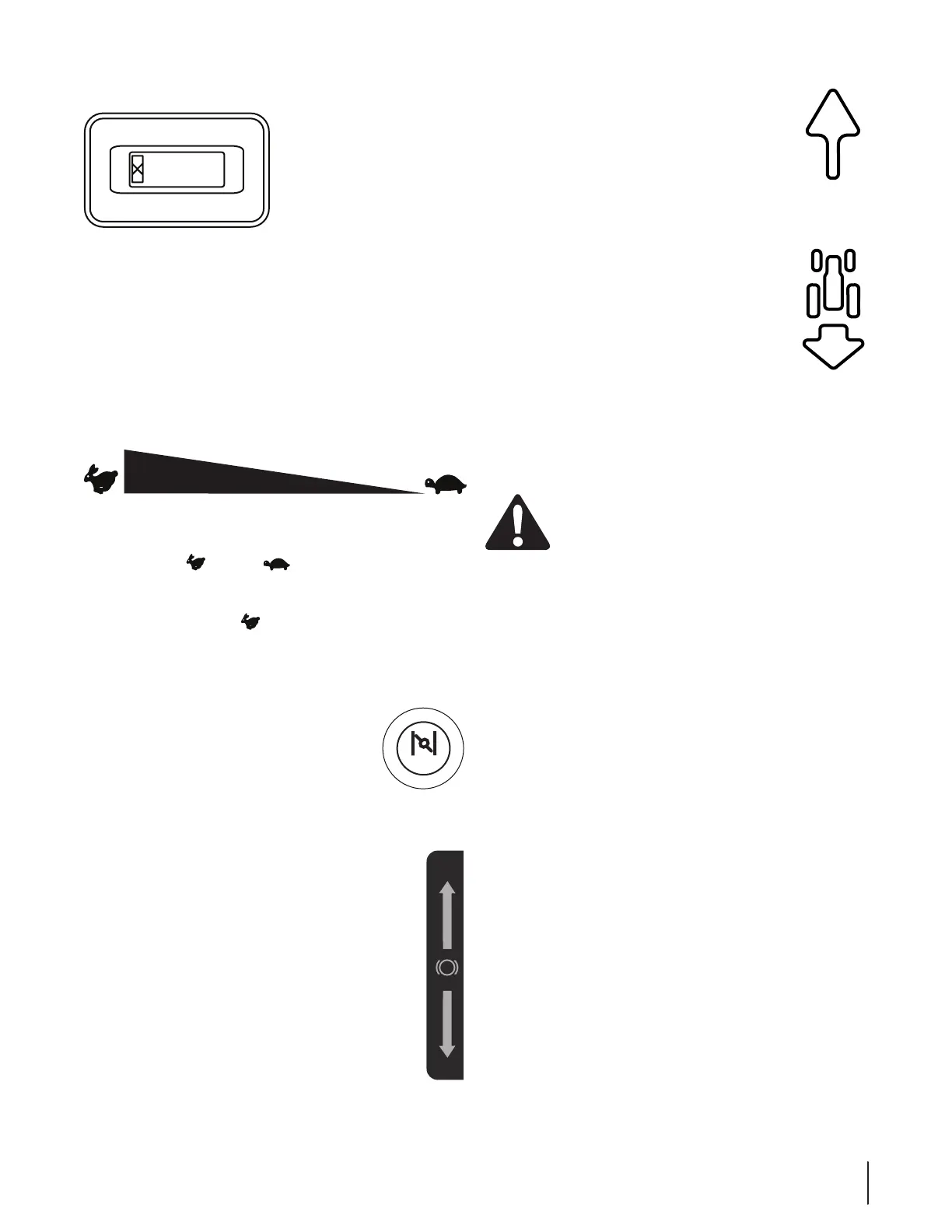

The tachometer/hour meter panel is located on the LH console to
the left of the operator’s seat. The hour meter records the hours
that the tractor has been operated in the digital display. The
tachometer provides engine speed (RPM), and service reminders
(oil, lube) in the digital display.
The tachometer/hour meter is activated whenever the ignition
switch is turned to the “ON” position. Keep a record of the actual
hours of operation to assure all maintenance procedures are
completed according to the instructions in this manual and the
engine manual.
Throttle Control
The throttle control is located on the RH console to the right
of the operator’s seat. When set in a given position, a uniform
engine speed will be maintained. The throttle control moves
between the fast and slow positions.
Push the throttle control handle forward to increase the engine
speed. The tractor is designed to operate with the throttle
control in the fast position (full throttle) when the tractor is
being driven and the mower deck is engaged.
Pull the throttle control handle rearward to decrease the engine
speed.
Choke Knob
The choke knob is located on the right side of the
mower next to the operator’s seat. Pull the knob
out to choke the engine; push the knob in to open
the choke. Having the choke in the ON position
helps the engine to start during initial start-up. During normal
operation the choke should be OFF.
Parking Brake Lever
The parking brake lever is located on the LH console to
the left of the operator’s seat. When pulled up it engages
the parking brake and when pushed down it releases the
brake.
NOTE: If the forward and reverse neutral position when
engaging the parking brake, the engine will stop. The
parking brake must be placed in the engaged position
when starting the tractor engine.
CHOKE
ON
OFF
P
Forward Drive Pedal
The forward drive pedal is located on the right side
of the machine, along the running board. Press the
forward drive pedal forward to cause the tractor to
travel forward. Ground speed is also controlled with
the forward drive pedal. The further forward the
pedal is pivoted, the faster the tractor will travel. The pedal will
return to its original/neutral position when it’s not pressed.
Reverse Drive Pedal
The reverse drive pedal is located on the right side of
the tractor along the running board. Ground speed
is also controlled with the reverse drive pedal. The
further downward the pedal is pivoted, the faster the
tractor will travel. The pedal will return to its original/
neutral position when it’s not pressed.
Fuel Tank Cap
The fuel tank caps are located on the top of the left and right
fuel tanks. Turn the fill cap counter-clockwise to remove and
clockwise to tighten. Always re-install the fuel cap tightly onto
the fuel tank after removing.
WARNING! Never fill the fuel tank when the
engine is running. If the engine is hot from recently
running, allow to cool for several minutes before
refueling. Highly flammable gasoline could splash
onto the engine and cause a fire.
Cup Holder
The cup holder is located on the LH console to the left of the
operator’s seat.
Seat Adjustment Lever (Not Shown)
The seat adjustment lever is located below the front/right of the
seat. The lever allows for adjustment of the fore to aft position of
the operator’s seat. Refer to the Assembly & Set-Up section for
instructions on adjusting the seat position.
Arm Adjustment Block (Not Shown)
The arm adjustment blocks are located under the seat arms and
can be used to adjust the height of the arm rests. Refer to the
Assembly & Set-Up section for instructions on adjusting the arm
rest position.
Mechanical Suspension Mechanism (Not Shown/If
Equipped)
The mechanical suspension mechanism is located on the front of
the seat and can adjust the weight/ride adjustment for operators
in the 125- to 275-pound weight range.
