Controls & Features
4
16

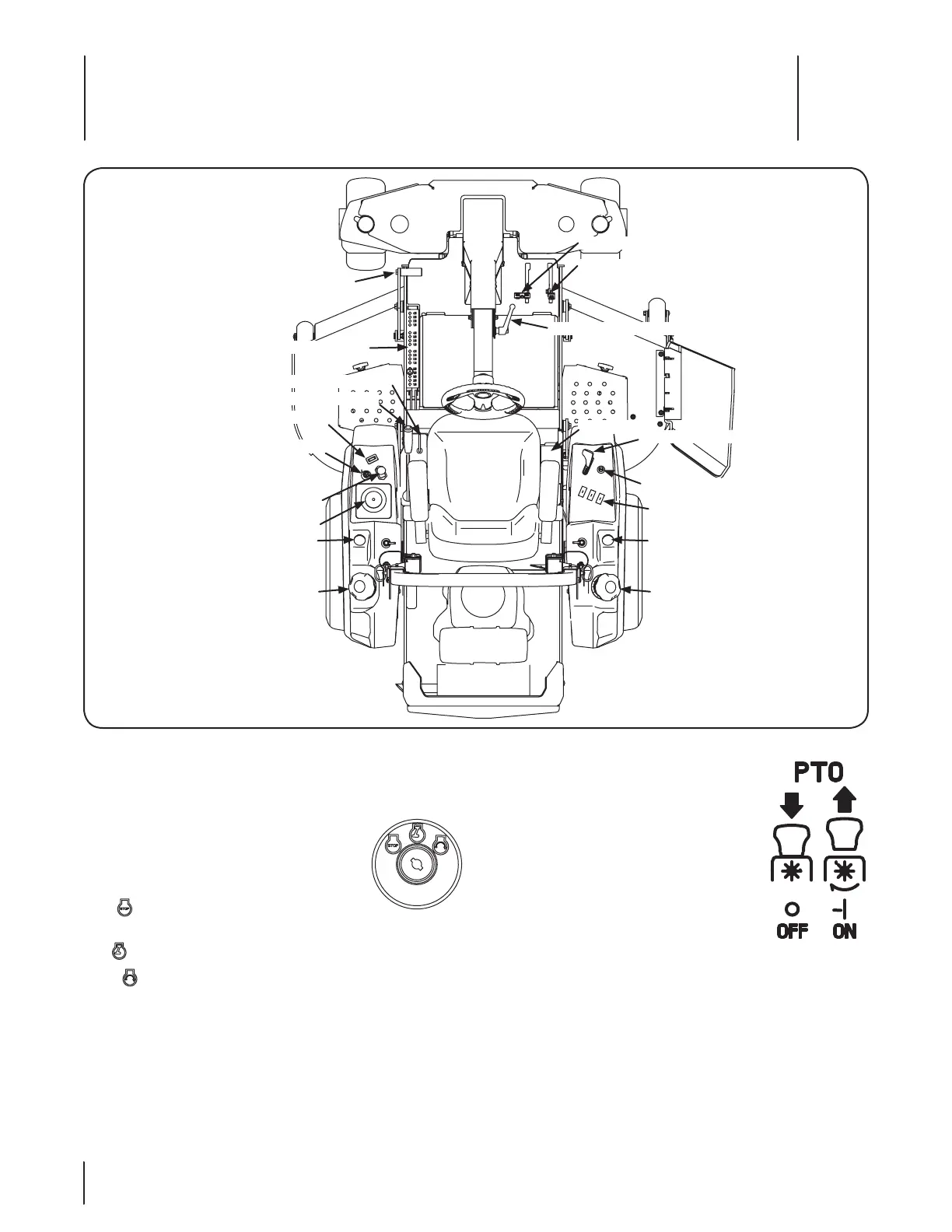

Figure 4-1
NOTE: References to LEFT, RIGHT, FRONT, and REAR indicate that
position on the tractor when facing forward while seated in the
operator’s seat.
Ignition Switch
The ignition switch is located on the LH console
to the right of the operator’s seat. The ignition
switch has three positions as follows:
STOP — The engine and electrical system is
turned off.
RUN — The tractor electrical system is energized.
START — The starter motor will turn over the engine. Release
the key immediately when the engine starts
NOTE: To prevent accidental starting and/or battery discharge,
remove the key from the ignition switch when the tractor is not
in use.
Power Take-Off (PTO) Switch
The PTO switch is located on the LH console
to the left of the operator’s seat next to the
ignition switch.
The PTO switch operates the electric PTO
clutch mounted on the bottom of the engine
crankshaft. Pull the knob upward to engage
the PTO clutch, or push the knob downward to
disengage the clutch.
The PTO switch must be in the “disengaged”
position when starting the engine.
Ignition Switch
PTO Switch
Digital Tachometer & Hour Meter
Throttle Control
Choke Knob
Parking Break Lever
Forward Drive Pedal
Reverse Drive Pedal
Fuel Tank Cap Fuel Tank Cap
Cup Holder
Deck Height Index
Deck Lift Pedal
Deck Lift Release Lever
Steering Column Adjustment Lever
Fuel GaugeFuel Gauge
Accessory Switch Receptacles
Tool Box
