6
SECTION 5: CONTENTS
The mower deck attachment components are listed below along with their part numbers. Assemblies are made up of more than one part
and do not have a part number. Before beginning installation, lay all components out on a flat surface to assure everything is present.
Throughout the manual the parts in the hardware pack will be identified by name, followed by their callout number in parenthesis, to aid in
installation.

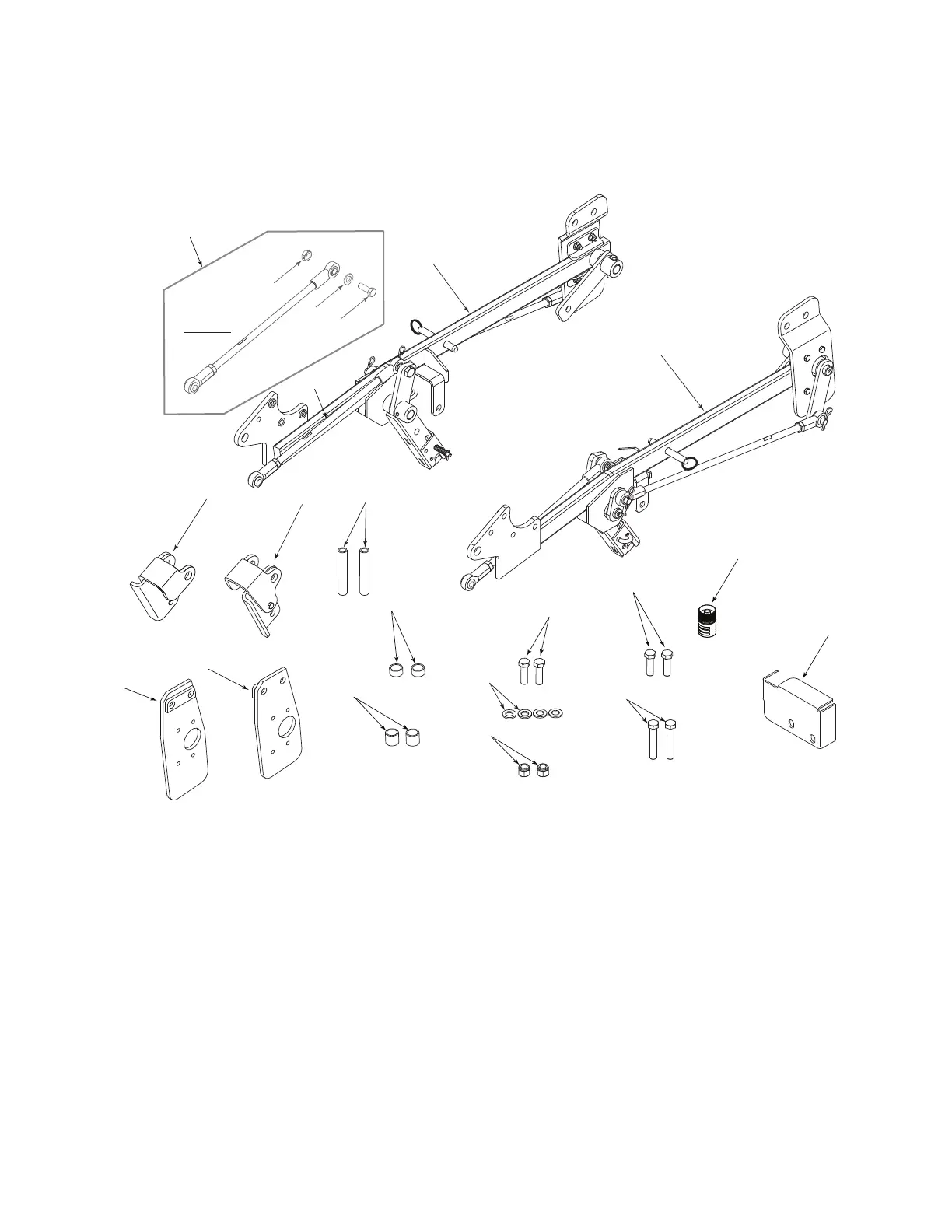

Figure 1
1
2
3
4
5
6
8
9
10
11
12
13
14
7
15
16
If not Factory
Installed
17
18
19
20
1
3
1. RH Subframe Assembly .................. N/A 1 pc
2. LH Subframe Assembly ...................... N/A 1 pc
3. Rear Lift Rod Assembly ...................... N/A 2 pc
(May have been factory installed)
4. Hex Cap Screw M16-20 x 35 ............... 710-04697 2 pc
5. Hex Cap Screw, M16-2.0 x 60 ............ 710-04700 2 pc
6. Hex Cap Screw, 5/8-11 x 2.5 .............. 710-04129 2 pc
7. Flat Washer, .64 x 1.12 x .125 .............. 736-0366 4 pc
8. Hex Lock Nut, 5/8-11 .......................... 712-3016 2 pc
9. Spacer 1.25 OD x .625 ....................... 750-04877 2 pc
10. Spacer 1.25 OD x 1.25 ........................ 750-04878A 2 pc
11. RH Loader Adapter Bracket ................. 603-04441 2 pc
12. LH Loader Adapter Bracket ................. 603-04440 2 pc
13. RH Lift Bracket Assembly ................... N/A 1 pc
14. LH Lift Bracket Assembly .................... N/A 1 pc
15. Spacer .625 ID x 4.95 Lg ..................... 750-04858 2 pc
16. Nozzle Adapter ................................... 721-04041 1 pc
17. Mid PTO Cover ................................... 703-06201 1 pc
18. Hx Cp Scrw - May be factory installed .. 710-04706 2 pc
19. Flat Washer - May be factory installed ..736-0290 2 pc
20. Hx Lck Nut - May be factory installed ...712-0261 2 pc
Not Shown - Complete Deck Assembly ...... 1 pc
To Next Page
