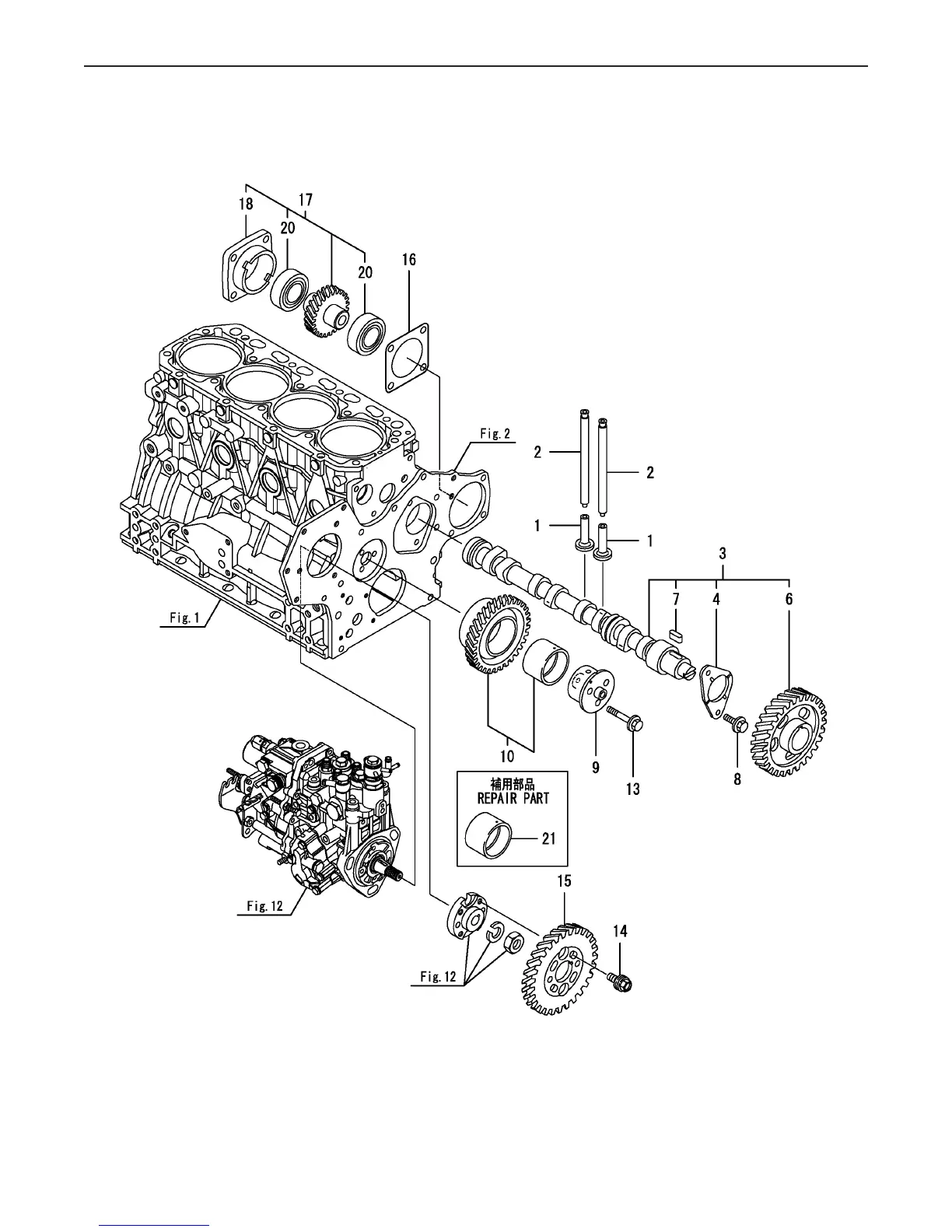

Fig 7. Camshaft & Driving Gear
Fig.7. CAMSHAFT & DRIVING GEAR
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Repair part.
0CNP5-G38200
7. CAMSHAFT & DRIVING GEAR
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
TAPPET129150-1420011 88
ROD, PUSH129150-1440012 88
CAMSHAFT ASSY729402-1458013 11
METAL, THRUST129150-0245024 11
GEAR, CAMSHAFT129150-1410126 11
KEY, 7X1422512-07014027 11
BOLT 8X 14 PLATED26106-08014218 22
SHAFT, IDLER119803-2505019 11
GEAR ASSY, IDLE119802-25101110 11
BOLT M 8X 40 PLATED26106-080402113 33
BOLT, PUMP129150-25301114 44
GEAR, PUMP119802-25901115 11
GASKET, COVER129150-01881116 11
DRIVE ASSY, PUMP129150-26000117 11
BRACKET, PUMP129150-26050218 11
BALL BEARING24105-060064220 22
1BUSH, IDLE GEAR119802-25071121 11
