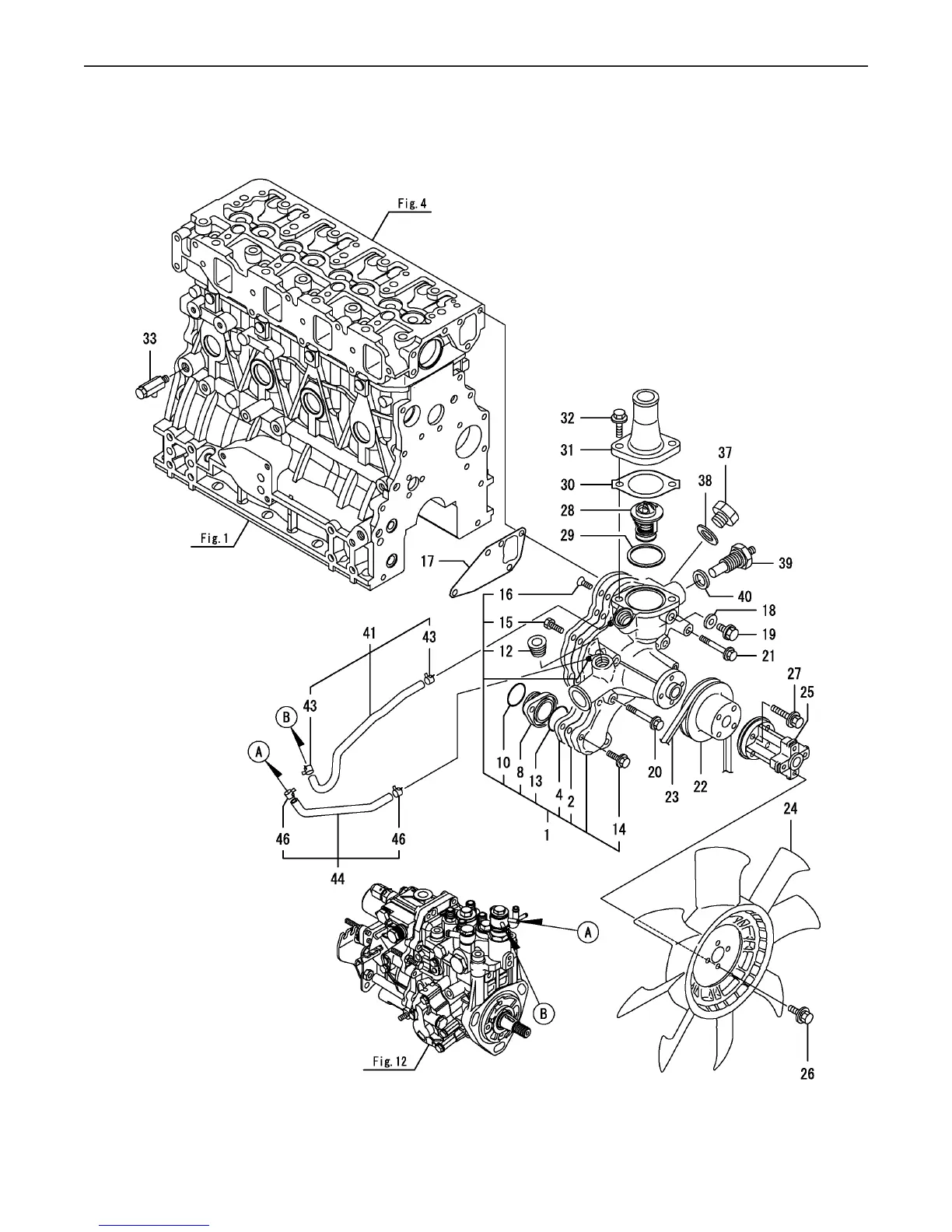

Fig 11. Cooling Water System
Fig.11. COOLING WATER SYSTEM
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38200
11. COOLING WATER SYSTEM
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PUMP ASSY, WATER129263-4200011 11
PACKING129150-4205922 11
PLATE129263-4212024 11
FLAGNE, C. W. PUMP129150-4230128 11
O-RING129054-42320210 11
PLUG, R03129916-49740212 22
O-RING, 5 2403124358-240310213 11
BOLT M 6X 20 PLATED26106-060202214 22
BOLT 6X1626116-060162215 33
SCREW, M6X1526577-060152216 33
GASKET, PUMP129486-42050117 11
GASKET 8, ROUND23414-080000118 11
BOLT M 8X 12 PLATED26106-080122119 11
BOLT M 8X 55 PLATED26106-080552120 33
BOLT M 8X 60 PLATED26106-080602121 11
V-PULLEY, WATER PUMP129120-42350122 11
V-BELT25152-004100123 11
FAN, COOLING129436-44740124 11
SPACER129266-44760125 11
BOLT M 6X 1626014-060162126 44
BOLT W/WASHER 6X 3026014-060302127 44
THERMOSTAT129155-49801128 11
GASKET, THERMOSTAT129150-49811129 11
GASKET, COVER129795-49551130 11
COVER, THERMOSTAT129350-49560131 11
BOLT M 8X 20 PLATED26106-080202132 22
COCK ASSY119620-49290133 11
PLUG M16121450-42450137 11
GASKET, 16124465-44950138 11
THERMOMETER124250-49351139 11
GASKET 10129150-49360140 11
PIPE, WATER A129263-49610141 11
CLIP, HOSE124722-59050243 22
PIPE, WATER B129263-49620144 11
CLIP, HOSE124722-59050246 22
