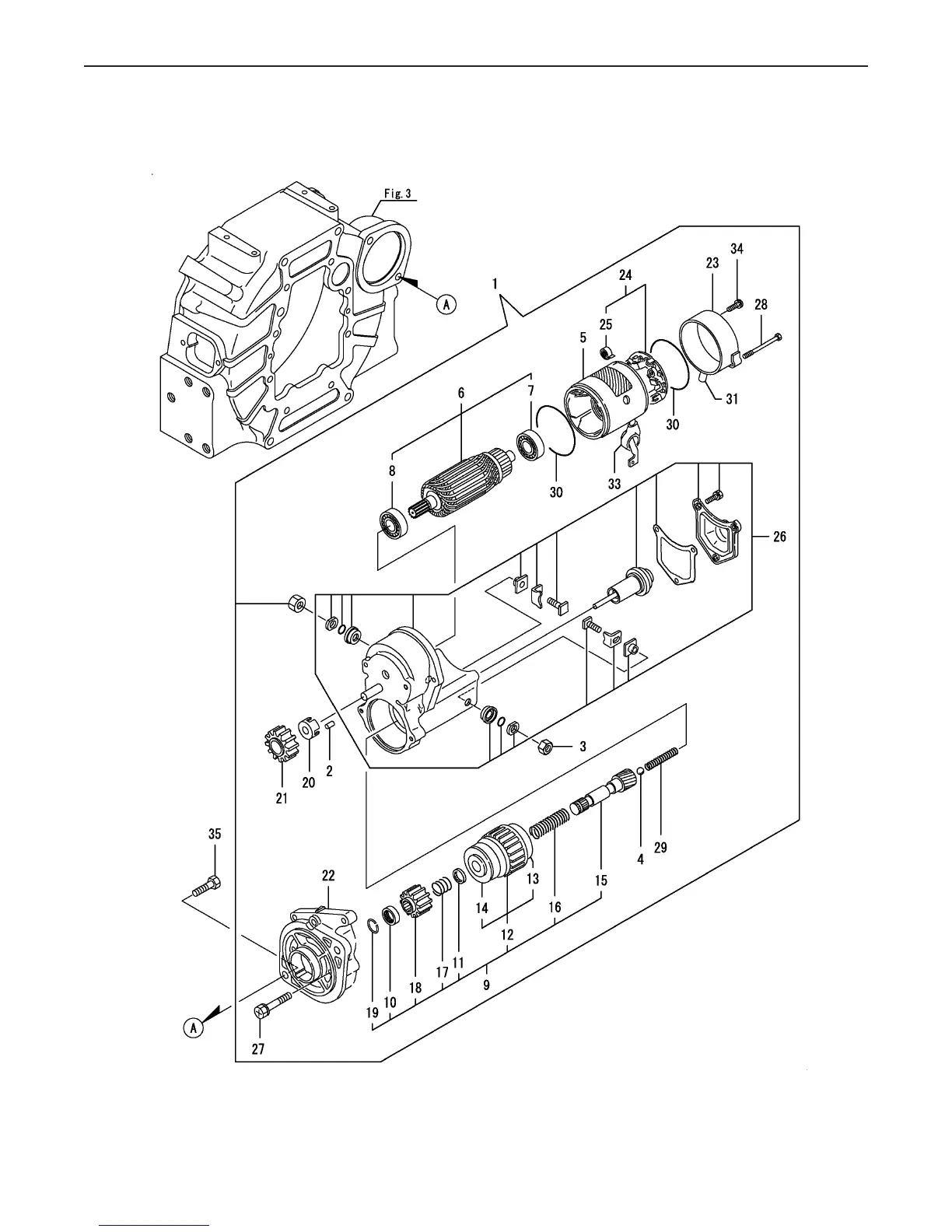

Fig 17. Starting Motor
Fig.17. STARTING MOTOR
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38200
17. STARTING MOTOR
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
STARTER, RA1.4129407-7701011 11
ROLLERX028306006122 55
NUTX949056137023 11
BALLX949120024024 11
YOKE129407-7721025 11
A
RMATURE ASS
Y
129407-7722026 11
BEARING129129-7723037 11
BEARING129129-7724038 11
STARTER129407-7725029 11
NUTX0280210230310 11
RETAINER, SNAPX0283270140311 11
CLUTCH ASSY, STARTER129407-77390312 11
BALL BEARING129129-77440413 11
BALL BEARING129129-77450414 11
SHAFT129129-77400315 11
SPRING, COIL129129-77410316 11
SPRING, COILX9491703371317 11
PINION, STARTER129129-77420318 11
RING, SNAP129129-77430319 11
RETAINER129129-77260220 11
PINION129129-77270221 11
HOUSING129407-77280222 11
FRAME129407-77290223 11
HOLDER ASSY129407-77300224 11
SPRINGX9491730461325 44
SWITCH ASSY129407-77310226 11
BOLT129129-77320227 22
BOLT129407-77330228 22
SPRING129129-77340229 11
O-RING129129-77350230 22
COVER129129-77362231 11
CAP129129-77380233 11
SCREW129129-77460234 22
BOLT M12X 25 PLATED26116-120252135 22
