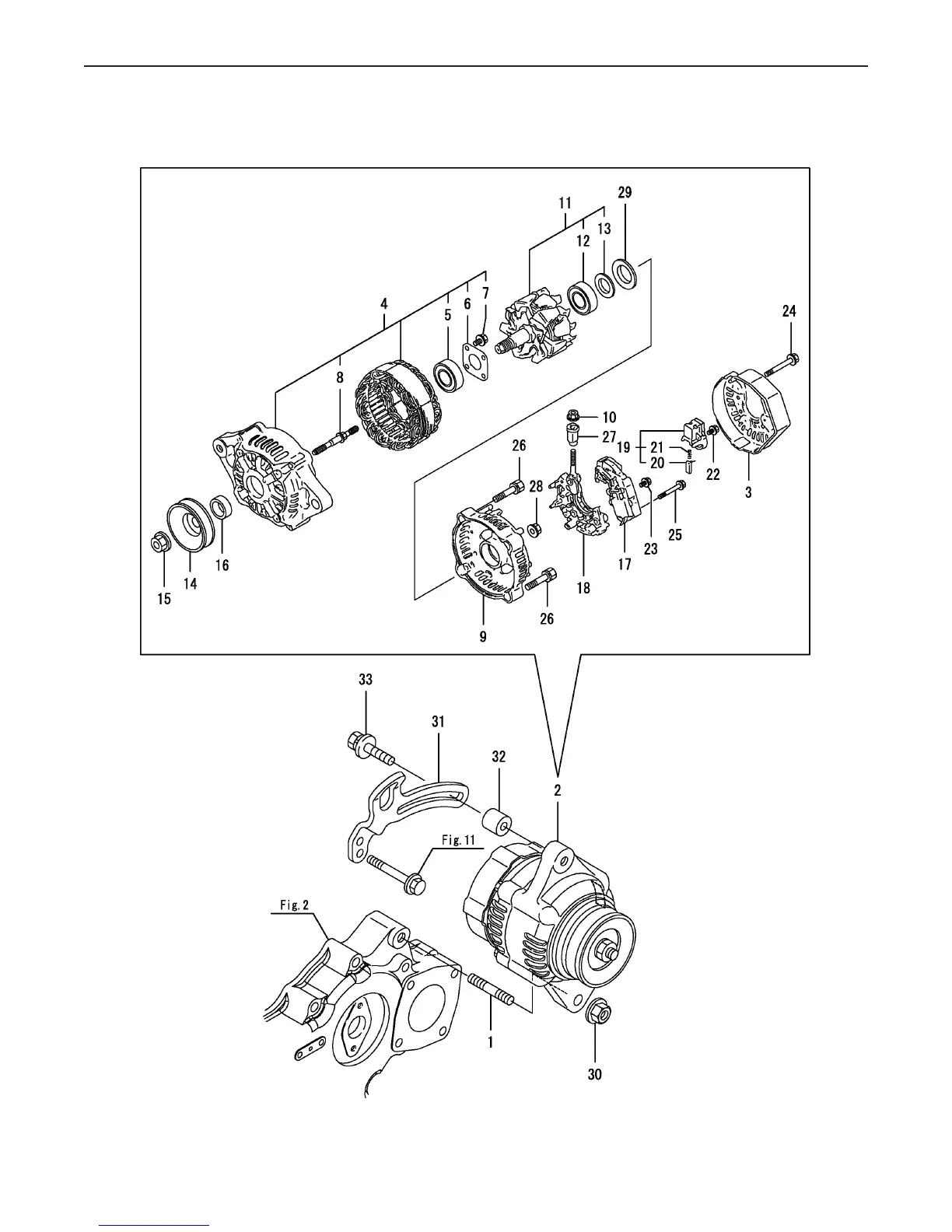

Fig 18. Generator
Fig.18. GENERATOR
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38200
18. GENERATOR
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
STUD129795-0190011 11
GENERATOR, 12V-40A119751-7720012 11
COVERX021551244023 11
FLAME ASSY, DRIVEX121400143024 11
BALL BEARING119620-7920035 11
PLATE, RETAINER119620-7921036 11
SCREW119620-7922037 44
STUD119620-7923038 22
FLAME ASSY, REARX121501105029 11
NUTX9490561001210 11
ROTOR ASSY119620-77380211 11
BALL BEARING119620-79240312 11
COVER, BEARING119620-79250313 11
PULLEY119620-77461214 11
NUT119620-77471215 11
COLLAR119620-77490216 11
REGULATOR ASSY129423-77710217 11
HOLDER119620-79260218 11
HOLDER, BRUSH129052-79270219 11
BRUSH ASSY119620-77480320 22
SPRING119620-79280321 22
SCREW119620-79290222 66
SCREW119620-79300223 11
BOLT119620-79310224 33
SCREW119620-79320225 22
BOLT119620-79330226 22
BUSH, INSULATION119620-79340227 11
NUT119620-79350228 22
WASHER, THRUST119620-79360229 11
NUT, M1026306-100002130 11
A
DJUSTER, BELT129107-77330131 11
SPACER124732-77340132 11
BOLT, ADJUSTER129972-77341133 11
