Fig 3. Engine Accessories Lx410 & Lx450
Ref.
Part Number Description Qty
1 CY-1A7140-00600 RADIATOR ASSY 1
2 CY-1A7180-01050 RUBBER,RADIATOR 2
3 CY-1A8250-01210 TUBE,COOLING WATER A 1
4 CY-1A7260 -01220 PIPE, COOLING WATER 1
5 CY-1A8250-01250 SCREEN, RADIATOR 1
6 CY-194150-01270 SPACER 20 1
7 CY-1A8250-01500 SHROUD M ASSY, FAN 1
8 CY-198280-04470 JOINT 1
9 CY-1A8240-04620 CLAMP, FUEL HOSE 1
10 CY-1A8240-05100 CLEANER ASSY,5.5IN,D 1
11 CY-1A8240-05110 ELEMENT ASSY, OUTER 1
12 CY-1A8240-05120 ELEMENT ASSY, INNER 1
13 CY-1A8240-05130 GASKET, AIR CLEANER 1
14 CY-1A8240-05150 BODY, 1
15 CY-1A8240-05160 COVER ASSY 1
16 CY-1A8240-05170 VALVE, UNLOADER 1
17 CY-1A8240-05180 CLIP NUT, M8 2
18 CY-1A8275-05510 PLATE,SHUTTER,88 ASS 1
19 CY-1A8240-05810 COVER, BELT L 1
20 CY-1A8240-05820 COVER, BELT R 1
21 CY-1A8240-06200 PIPE A, INTAKE 1
22 CY-1A8240-06220 HOSE B, INTAKE 1
23 CY-1A8240-15460 BRACKET, CLAMP 1
24 CY-194990 -22140 NUT W/WASHER 8 2
25 CY-194990-22140 NUT W/WASHER 8 2
26 CY-198220-37900 PIN 8X24 1

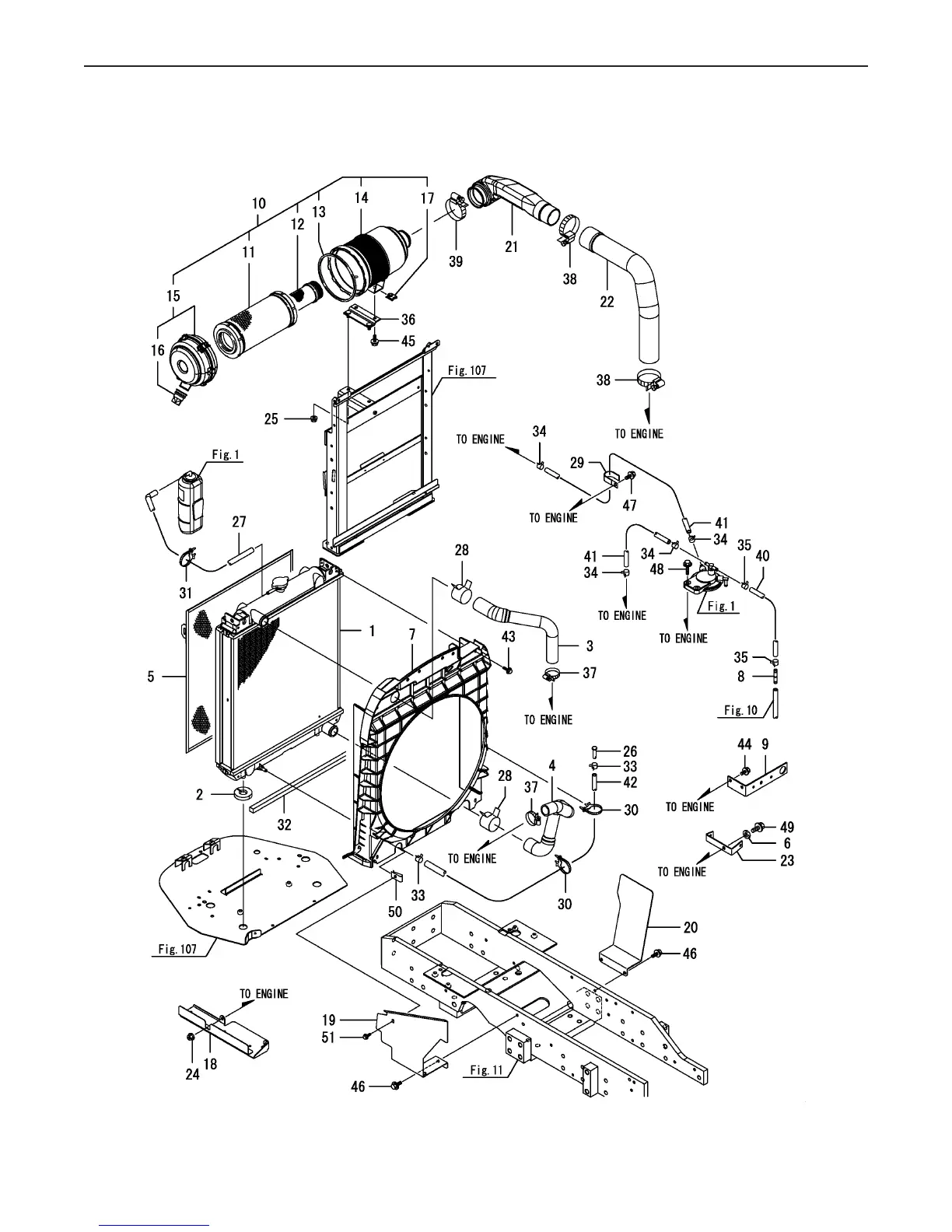

Fig.3. ENGINE ACCESSORIES
0CNP5-G37900
0CNP5-G37900
3. ENGINE ACCESSORIES
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
RADIATOR ASSY1A7140-0060011 11
RUBBER,RADIATOR1A7180-0105012 22
TUBE,COOLING WATER A1A8250-0121013 11
PIPE, COOLING WATER1A7260-0122014 11
SCREEN, RADIATOR1A8250-0125015 11
SPACER 20194150-0127016 11
SHROUD M ASSY, FAN1A8250-0150017 11
JOINT198280-0447018 11
CLAMP, FUEL HOSE1A8240-0462019 11
CLEANER ASSY,5.5IN,D1A8240-05100110 11
ELEMENT ASSY, OUTER1A8240-05110211 11
ELEMENT ASSY, INNER1A8240-05120212 11
GASKET, AIR CLEANER1A8240-05130213 11
BODY,1A8240-05150214 11
COVER ASSY1A8240-05160215 11
VALVE, UNLOADER1A8240-05170316 11
CLIP NUT, M81A8240-05180217 22
PLATE,SHUTTER,88 ASS1A8275-05510118 11
COVER, BELT L1A8240-05810119 11
COVER, BELT R1A8240-05820120 11
PIPE A, INTAKE1A8240-06200121 11
HOSE B, INTAKE1A8240-06220122 11
BRACKET, CLAMP1A8240-15460123 11
NUT W/WASHER 8194990-22140124 22
NUT W/WASHER 8194990-22140125 22
PIN 8X24198220-37900126 11
PIPE, C. WATER121750-49150127 11
CLIP 37, HOSE175022-49750128 22
CLAMP, WIRE HARNESS194440-51620129 11
BAND194680-51670130 22
BAND194680-51670131 11
URETHANE,SIDE LAMP1A7601-53920132 11
CLIP, HOSE114270-59010133 22
CLIP, HOSE114270-59010134 44
CLIP, HOSE114270-59010135 22
SUPPORT, CLEANER1A8240-60220136 11
CLAMP 3523000-035000137 22
CLAMP 7023000-070000138 22
CLAMP 7023000-070000139 11
HOSE 7.3X200,BRAIDED23980-730200140 11
FUEL PIPE 7.3X40023980-730400141 22
FUEL PIPE 7.3X60023980-730600142 11
BOLT M 6X 20 PLATED26106-060202143 44
BOLT M 8X 12 PLATED26106-080122144 22
BOLT M 8X 16 PLATED26106-080162145 22
BOLT M 8X 16 PLATED26106-080162146 33
BOLT M 8X 16 PLATED26106-080162147 11
BOLT M 8X 30 PLATED26106-080302148 22
BOLT M10X 20 PLATED26106-100202149 11
NUT 6,SPEED198071-61890150 11
BOLT M 6X 20 PLATED26106-060202151 11
