Lx490Lx Series
142
Copyright 2011 Cub Cadet Yanmar LLC

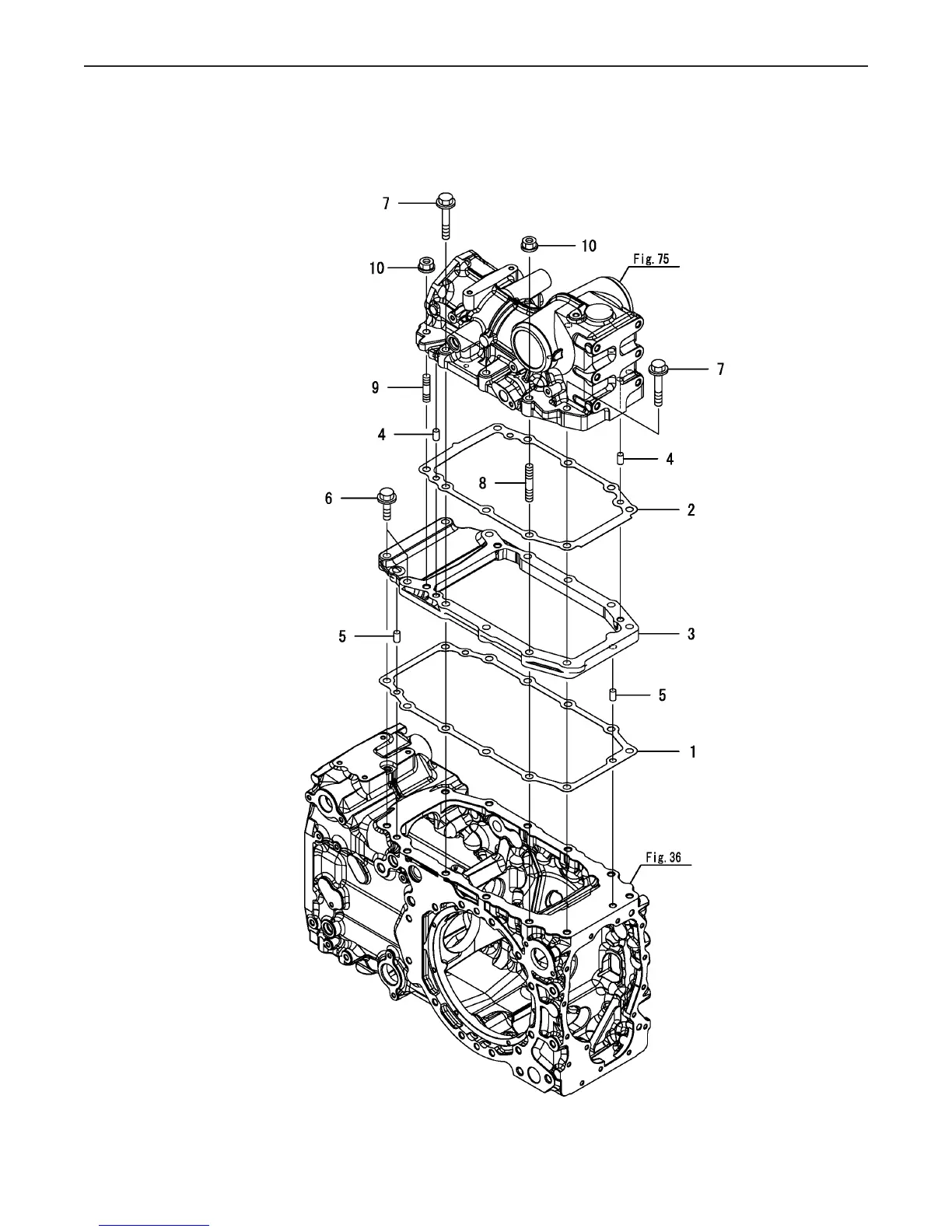

Fig 76. Hyd. Lift Docking
Fig.76. HYD.LIFT DOCKING
0CNP5-G37900
0CNP5-G37900
76. HYD.LIFT DOCKING
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PACKING, HOUSING198240-4213011 111
GASKET,HOUSING1A7180-4215012 111
SPACER, LIFT1A8275-4291013 111
PARALLEL PIN 10X 1822312-10018014 222
PARALLEL PIN 10X 1822312-10018015 222
BOLT, M12X 40 PLATED26106-12040216 444
BOLT, 12X7026106-12070217 666
STUD M12X 70 PLATED26216-12070218 222
STUD,BOLT 12 X 5026218-12050219 222
U-NUT M1226366-120002110 444
