Cub Cadet Yanmar Lx490

Lx490Lx Series
164
Copyright 2011 Cub Cadet Yanmar LLC

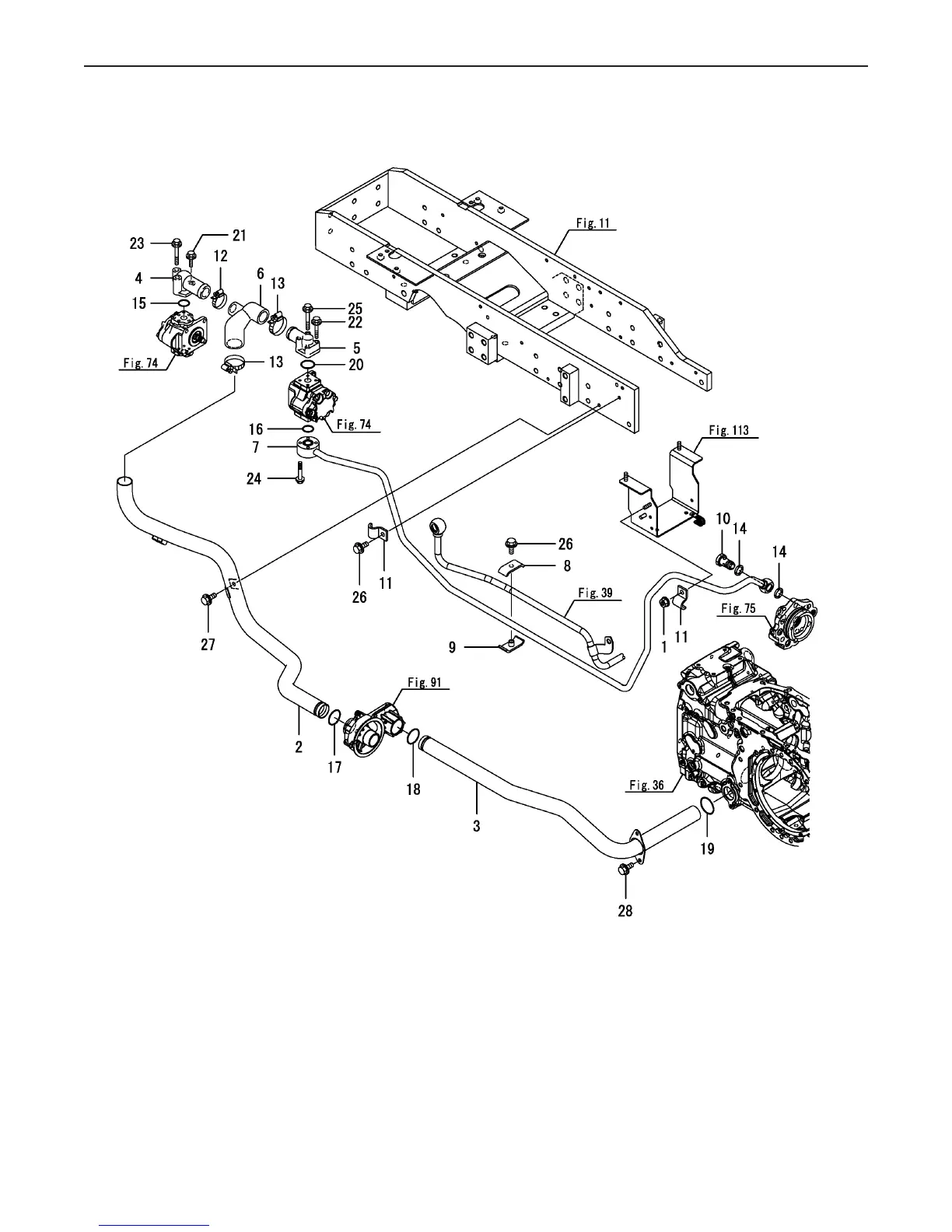

Fig 90. Hydraulic Line
Fig.90. HYDRAULIC LINE
0CNP5-G37900
0CNP5-G37900
90. HYDRAULIC LINE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 8194990-2214011 111
LP PIPE, FRONT1A8250-4800012 111
LP PIPE, REAR1A8250-4805013 111
FLANGE198220-4814014 111
FLANGE198240-4814015 111
HOSE, RUBBER LP P1A8275-4834016 111
HP PIPE, LIFT1A8250-4850017 111
CLAMP194470-4863018 111
CLAMP194470-4864019 111
CONNECTOR BOLT ASSY198361-48750110 111
CLAMP194450-48830111 222
CLAMP 3523000-035000112 111
CLAMP 4823000-048000113 222
GASKET 2023414-200026114 222
O-RING 1A P-20.024311-000200115 111
O-RING 1A P-22.024311-000220116 111
O-RING 1A P-32.024311-000320117 111
O-RING 1A P-32.024311-000320118 111
O-RING 1A P-36.024311-000360119 111
O-RING 1A S-25.024341-000250120 111
BOLT M 6X 20 PLATED26106-060202121 111
BOLT M 6X 35 PLATED26106-060352122 222
BOLT M 6X 40 PLATED26106-060402123 222
BOLT M 6X 40 PLATED26106-060402124 444
BOLT M 6X 45 PLATED26106-060452125 222
BOLT M 8X 16 PLATED26106-080162126 222
BOLT M 8X 16 PLATED26106-080162127 111
BOLT M 8X 16 PLATED26106-080162128 222
(C)Copy Rights YANMAR CO.,LTD.
