Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A8275-11600 SUPPORT ASSY,FRONT F 1
2 CY-1A7180-11620 BUSH, 60X65X40 1
3 CY-1A7180-11630 SEAL, VB607005 1
4 CY-24761-010000 NIPPLE M6F, GREASE 1
5 CY-1A7180-11650 WASHER, 60X4 1
6 CY-1A8275-11700 SUPPORT ASSY,FRONT R 1
7 CY-194181-11560 SEAL VB75 85 6.5,OIL 1
8 CY-194641-11630 BUSH 75X80X25 1
9 CY-24761-010000 NIPPLE M6F, GREASE 1
10 CY-198283-13480 WASHER 62X75X3 1
Copyright 2011 Cub Cadet Yanmar LLC
55

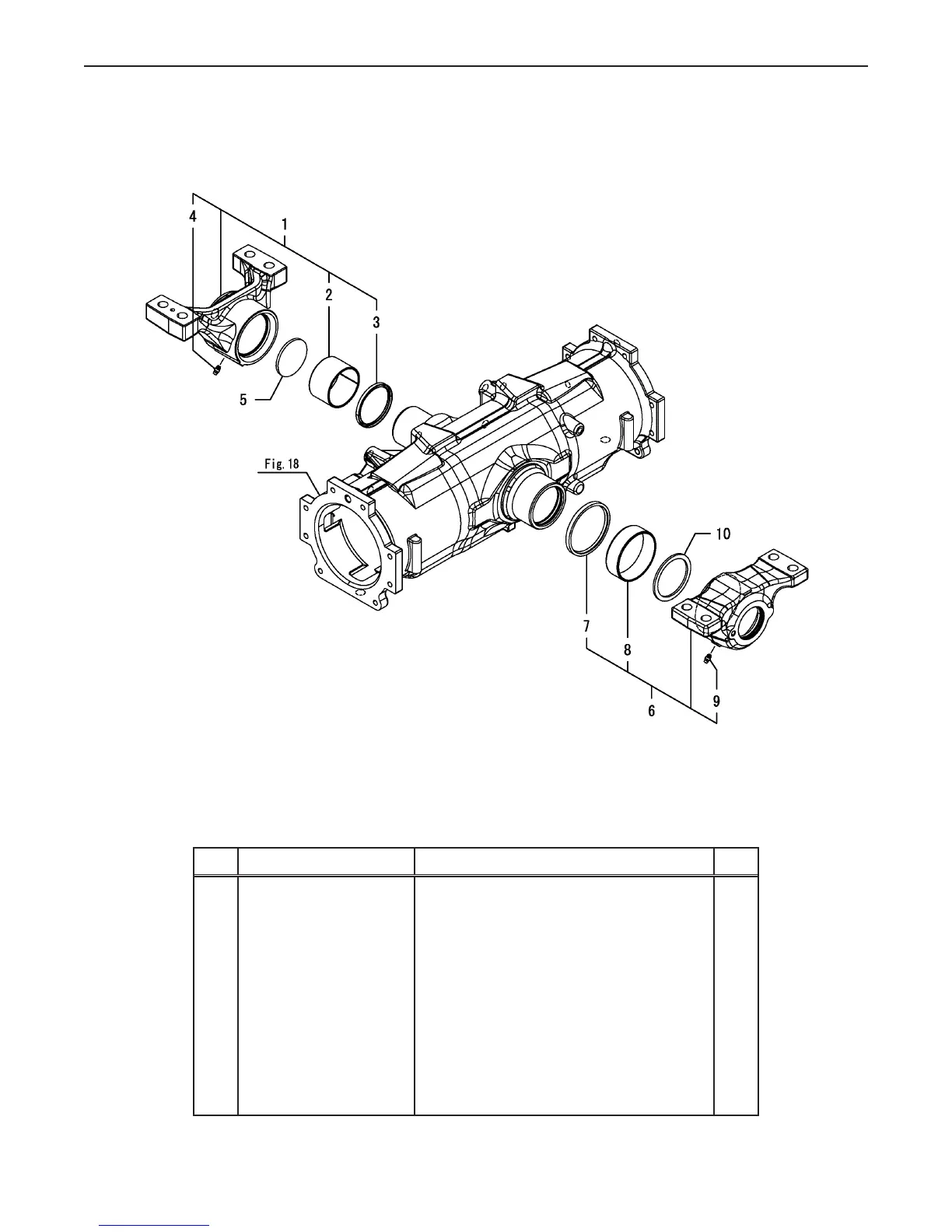

Fig 12. Front Support
Fig.12. FRONT SUPPORT
0CNP5-G37900
0CNP5-G37900
12. FRONT SUPPORT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SUPPORT ASSY,FRONT F1A8275-1160011 111
BUSH, 60X65X401A7180-1162022 111
SEAL, VB6070051A7180-1163023 111
NIPPLE M6F, GREASE24761-01000024 111
WASHER, 60X41A7180-1165015 111
SUPPORT ASSY,FRONT R1A8275-1170016 111
SEAL VB75 85 6.5,OIL194181-1156027 111
BUSH 75X80X25194641-1163028 111
NIPPLE M6F, GREASE24761-01000029 111
WASHER 62X75X3198283-13480110 111
