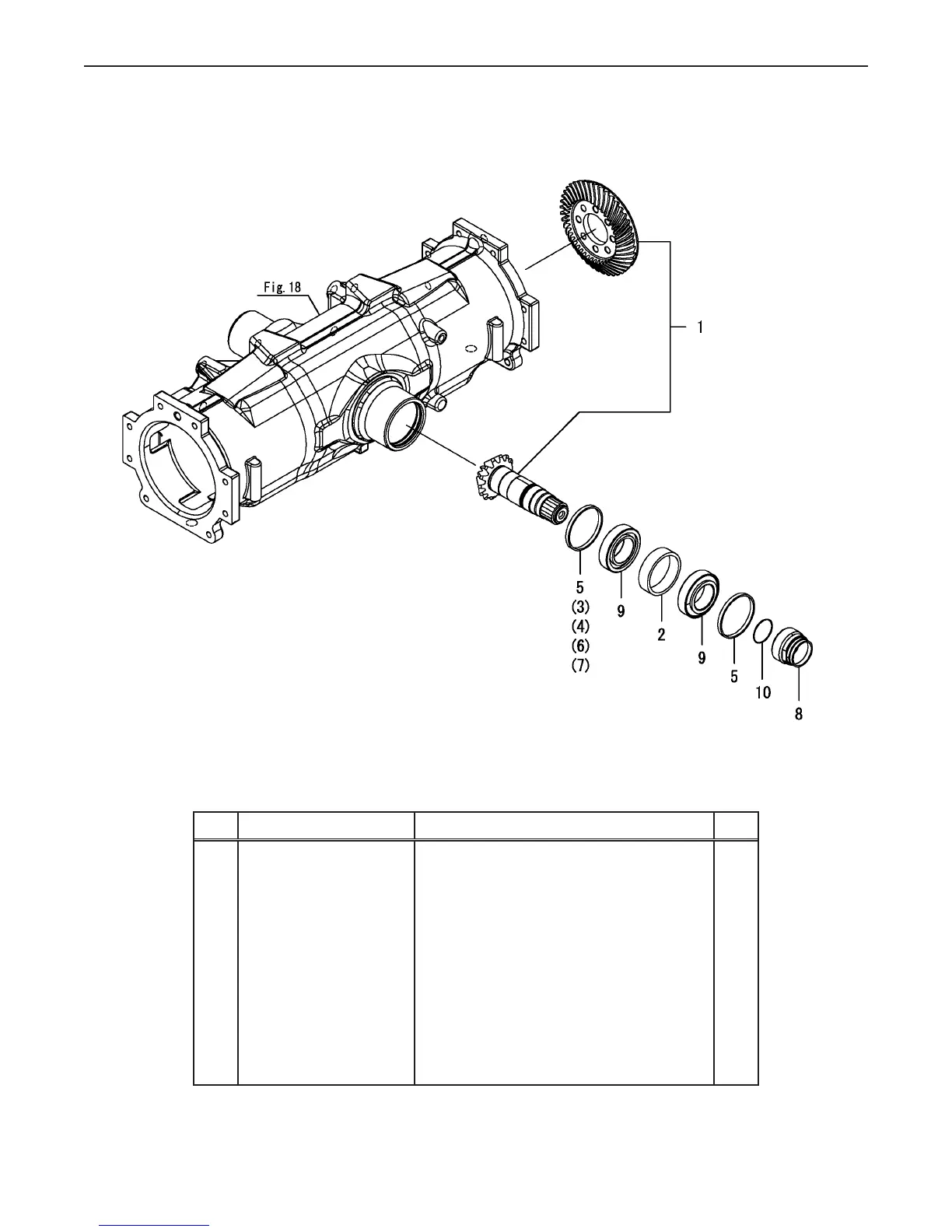

Fig 14. Ring Gear
Ref.
Part Number Description Qty
1 CY-1A8275-13100 GEAR ASSY, RING 1
2 CY-1A7180-13150 COLLAR, 1
3 CY-1A7180-13380 COLLAR 58X62X4.8 1
4 CY-1A7180-13390 COLLAR 58X62X4.9 1
5 CY-1A7180-13400 COLLAR 58X62X5.0 2
6 CY-1A7180 -13410 COLLAR 58X62X5.1 1
7 CY-1A7180-13420 COLLAR 58X62X5.2 1
8 CY-198251-13670 COLLAR 1
9 CY-24141-320070 ROLLER BEARING 2
10 CY-24341-000315 O-RING, 1A S31.5 1
Fig.14. RING GEAR
0CNP5-G37900
0CNP5-G37900
14. RING GEAR
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
GEAR ASSY, RING1A8275-1310011 111
COLLAR,1A7180-1315012 111
COLLAR 58X62X4.81A7180-1338013 111
COLLAR 58X62X4.91A7180-1339014 111
COLLAR 58X62X5.01A7180-1340015 222
COLLAR 58X62X5.11A7180-1341016 111
COLLAR 58X62X5.21A7180-1342017 111
COLLAR198251-1367018 111
ROLLER BEARING24141-32007019 222
O-RING, 1A S31.524341-000315110 111
