Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A7180-13201 HOUSING ASSY, DIFF. 1
2 CY-1A7180-13211 HOUSING,DIFFERENTIAL 1
3 CY-194321-13230 PINION, DIFFERENTIAL 2
4 CY-194465-13240 LINER, DIFFERENTAIL 2
5 CY-194321-13250 GEAR, DIFF. SIDE 2
6 CY-194465-13260 WASHER 2
7 CY-194321-13270 SHAFT, DIFF. PINION 1
8 CY-22351-060040 SPRING PIN 6X40 1
9 CY-1A7180-13250 COLLAR, DIFFERENTIAL 1
10 CY-1A7180-13260 SHIM, A DIFF 2
11 CY-1A7180-13270 SHIM, B DIFF 3
12 CY-198165-21490 BOLT M 8X 20 PLATED 8
13 CY-24101-060174 BALL BEARING 2
Copyright 2011 Cub Cadet Yanmar LLC
59

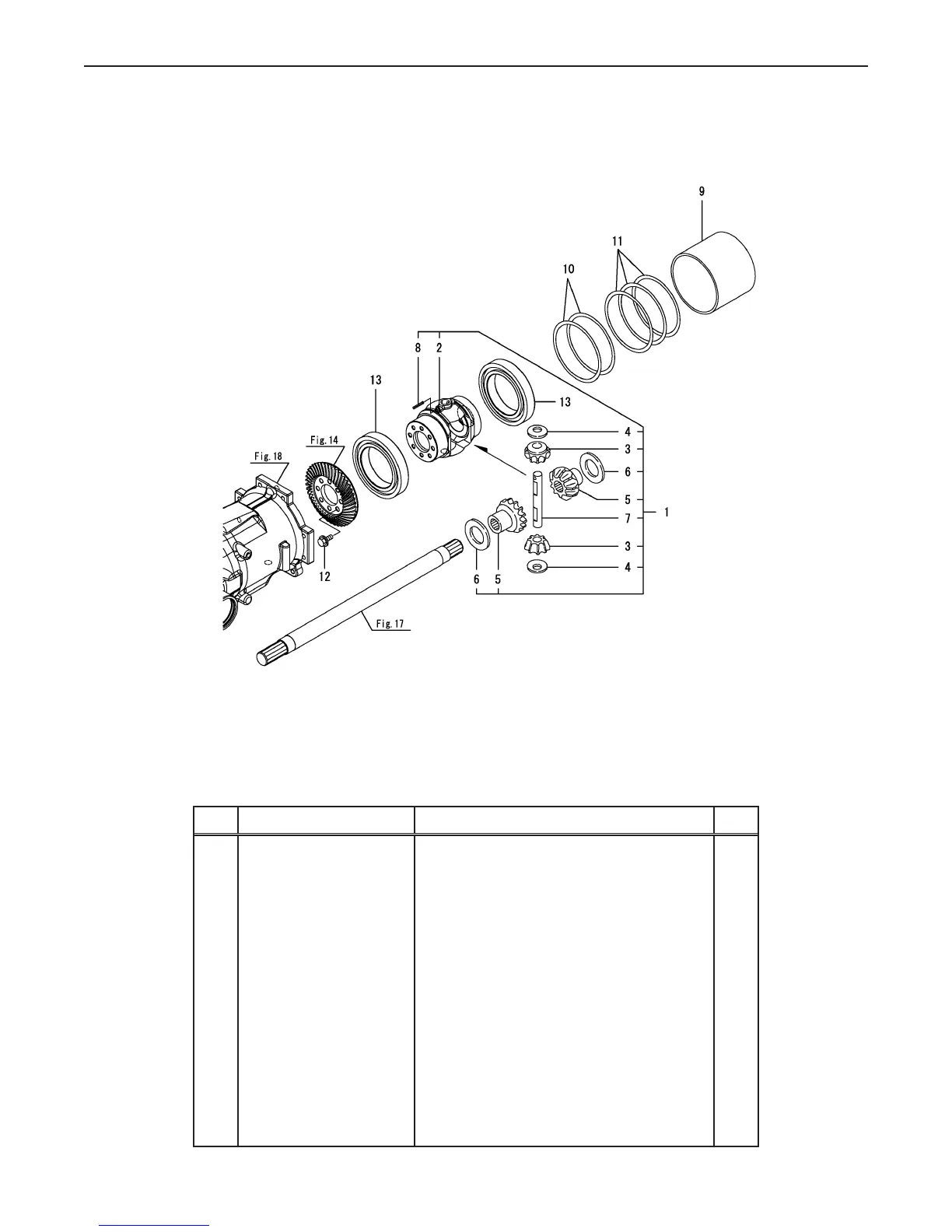

Fig 15. Dierential Gear
Fig.15. DIFFERENTIAL GEAR
0CNP5-G37900
0CNP5-G37900
15. DIFFERENTIAL GEAR
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
HOUSING ASSY, DIFF.1A7180-1320111 111
HOUSING,DIFFERENTIAL1A7180-1321122 111
PINION, DIFFERENTIAL194321-1323023 222
LINER, DIFFERENTAIL194465-1324024 222
GEAR, DIFF. SIDE194321-1325025 222
WASHER194465-1326026 222
SHAFT, DIFF. PINION194321-1327027 111
SPRING PIN 6X4022351-06004028 111
COLLAR, DIFFERENTIAL1A7180-1325019 111
SHIM, A DIFF1A7180-13260110 222
SHIM, B DIFF1A7180-13270111 333
BOLT M 8X 20 PLATED198165-21490112 888
BALL BEARING24101-060174113 222
(C)Copy Rights YANMAR CO.,LTD.
