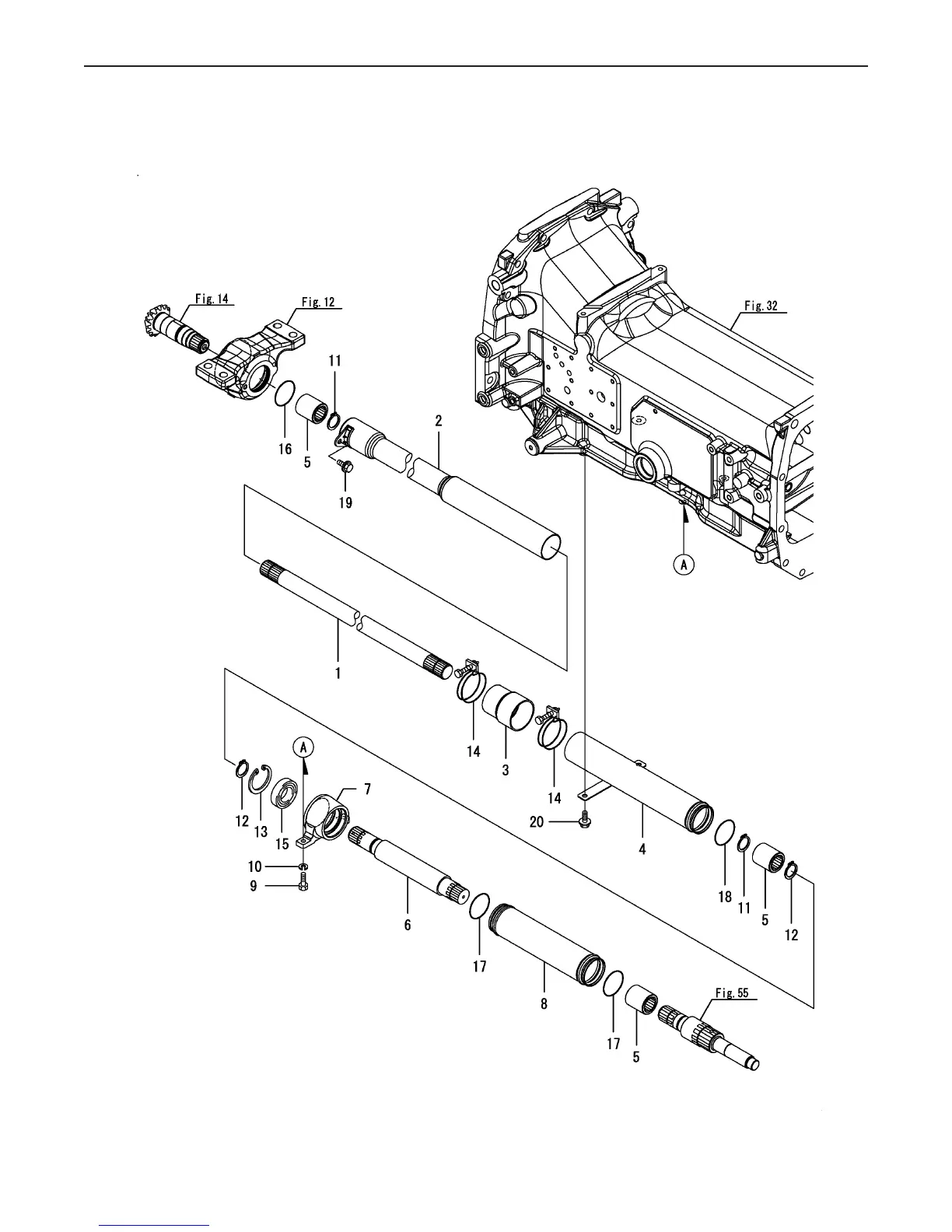

Fig 16. Propeller Shaft
Fig.16. PROPELLER SHAFT
0CNP5-G37900
0CNP5-G37900
16. PROPELLER SHAFT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SHAFT, PROPELLER1A7180-1330011 111
COVER,SHAFT FRONT1A7140-1461012 111
BOOT, RUBBER198241-1465013 111
COVER, SHAFT1A8275-1465014 111
COUPLING194640-2613015 333
SHAFT, DRIVE1A8275-2841016 111
RETAINER, BEARING1A8275-2842017 111
COVER, SHAFT REAR1A8275-2843018 111
BOLT,REAMER 8X251E9170-5481119 222
WASHER, 822217-080000110 222
CIRCLIP 3022242-000300111 222
CIRCLIP 3022242-000300112 222
CIRCLIP 5522252-000550113 111
CLAMP 6023000-060000114 222
BALL BEARING24104-060064115 111
O-RING 1A G-50.024321-000500116 111
O-RING 1A G-50.024321-000500117 222
O-RING 1A G-50.024321-000500118 111
BOLT M 8X 12 PLATED26106-080122119 111
BOLT M 8X 12 PLATED26106-080122120 222
